DIODESDatasheet (PDF)

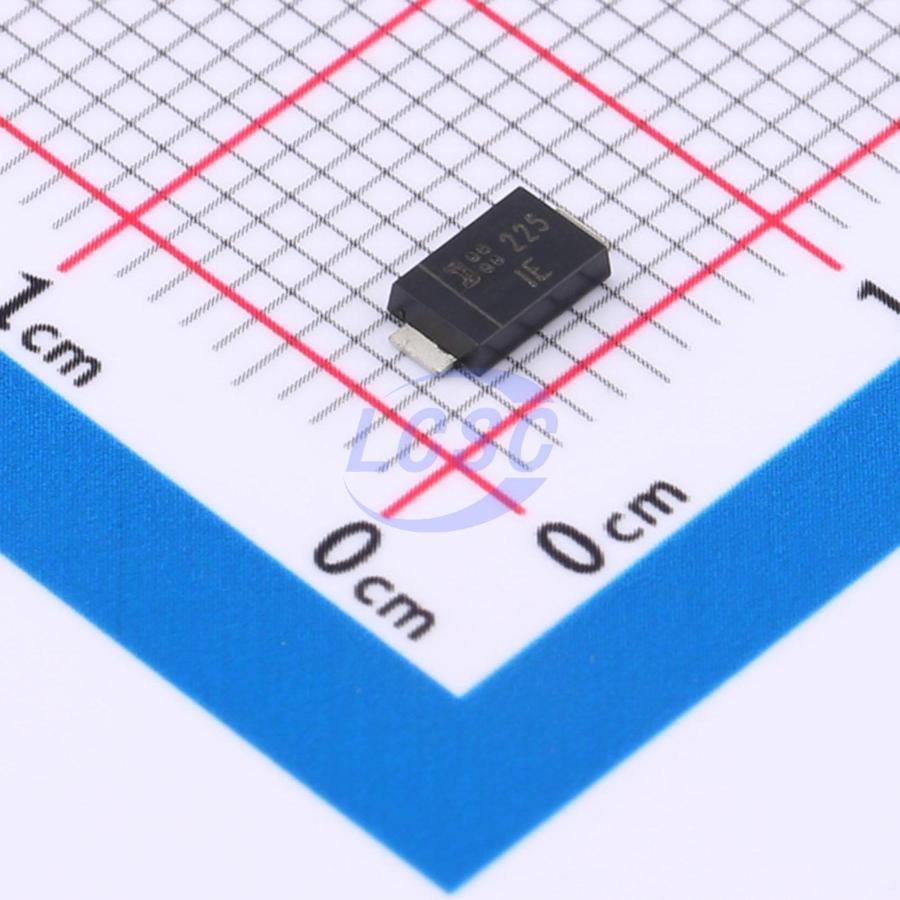

P4SMAJ12ADF-13
19.9VC Clamp 20.1A@10/1000us Ipp TVS DIODE D-FLAT
D-FLATROHS3 CompliantActive
TVS DIODE 12VWM 19.9VC D-FLAT
- Manufacturer
- DIODES
- Manufacturer part #
- P4SMAJ12ADF-13
- Store part #
- C1976539
- Package / case
- D-FLAT
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C1976539
Stock & price checked 44 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.19 | ₹115.95 |
| 50+ | ₹18.46 | ₹923.00 |
| 150+ | ₹16.43 | ₹2,464.50 |
| 500+ | ₹13.89 | ₹6,945.00 |
| 2,500+ | ₹12.77 | ₹31,925.00 |
| 5,000+ | ₹12.09 | ₹60,450.00 |
5 × ₹23.19
₹115.95
excl. GST
₹136.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
P4SMAJ12ADF-13
₹115.95 for 5 + GST
Specifications
- Clamping Voltage
- 19.9V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 20.1A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 14.7V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.067 g
