VBsemi ElecDatasheet (PDF)

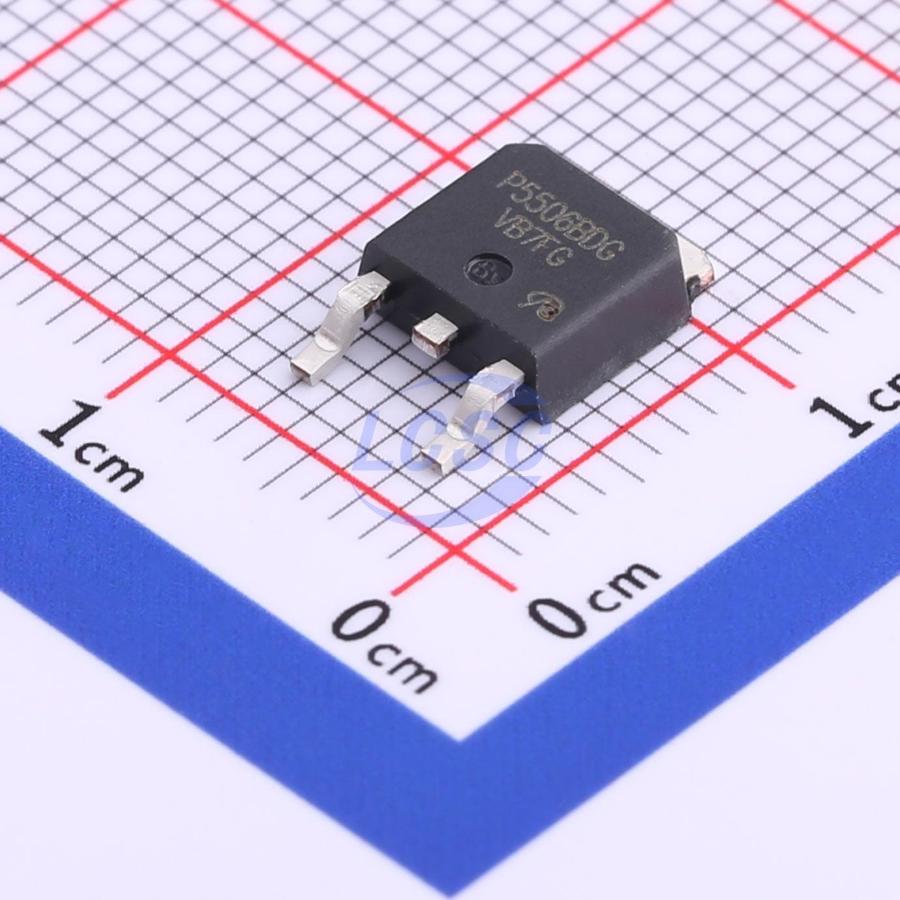

P5506BDG-VB
N-Channel 60V 18A 41.7W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 60V 18A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- P5506BDG-VB
- Store part #
- C878972
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35 in stock
#C878972
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.62 | ₹75.62 |
| 10+ | ₹60.08 | ₹600.80 |
| 30+ | ₹53.36 | ₹1,600.80 |
| 100+ | ₹44.96 | ₹4,496.00 |
| 500+ | ₹39.49 | ₹19,745.00 |
| 1,000+ | ₹37.40 | ₹37,400.00 |
1 × ₹75.62
₹75.62
excl. GST
₹89.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
P5506BDG-VB
₹75.62 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 85pF
- Current - Continuous Drain(Id)
- 18A
- Ciss-Input Capacitance
- 660pF
- Pd - Power Dissipation
- 41.7W
- Reverse Transfer Capacitance (Crss)
- 40pF
- RDS(on)
- 73mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 19.8nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.4 g
Overview
Applications
- DC/DC converter
- DC/AC inverter
- Motor driver
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTD3055-094G-VB#C19712540VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 182 | ₹67.80 · 182 in stock | View |
 | 2N0680-VB#C20755284VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 19 | ₹52.93 · 19 in stock | View |
 | CEU4060AL-VB#C709935VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 23 | ₹59.44 · 23 in stock | View |
 | AUIRLR024NTRPBF-VB#C7568984VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹53.56 · 50 in stock | View |
 | F3055L TO252-VB#C878996VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 19 | ₹38.72 · 19 in stock | View |
