VBsemi ElecDatasheet (PDF)

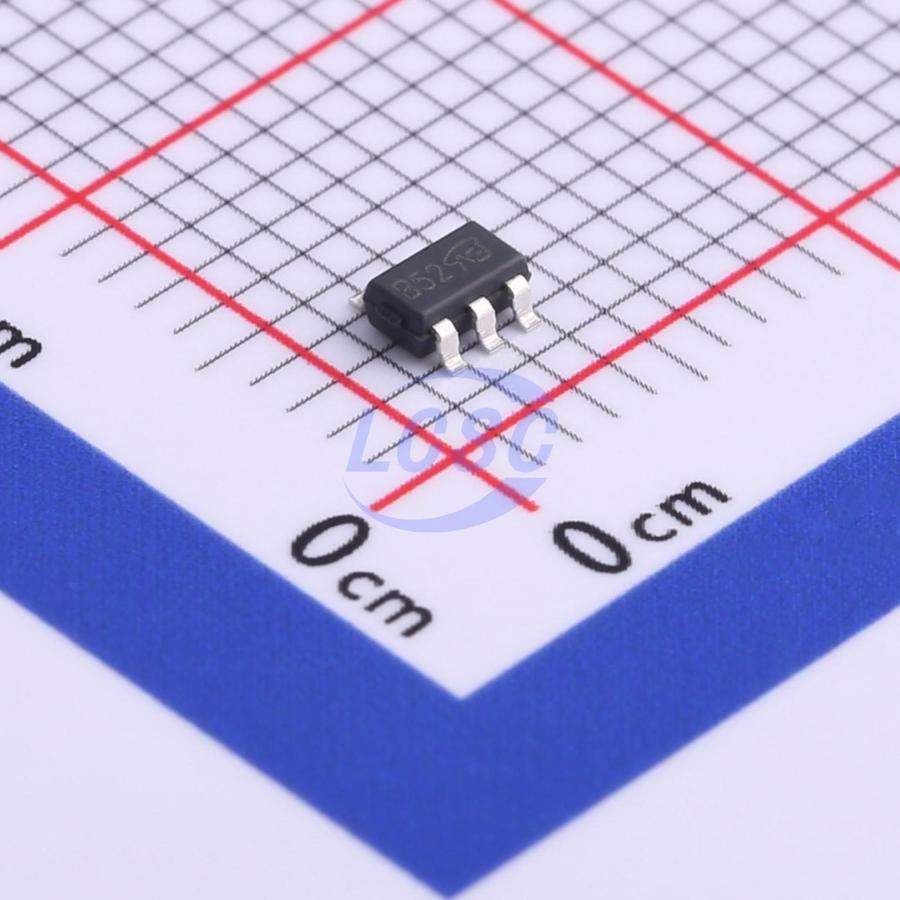

P5803NAG-VB
N-Channel+P-Channel Array 20V 5.5A 3.4A 1.15W Surface Mount TSOP-6
TSOP-6RoHSActive
MOSFET N-CH+P-CH ARR 20V 5.5A 3.4A TSOP-6
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- P5803NAG-VB
- Store part #
- C710043
- Package / case
- TSOP-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C710043
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.14 | ₹155.70 |
| 50+ | ₹24.90 | ₹1,245.00 |
| 150+ | ₹22.23 | ₹3,334.50 |
| 500+ | ₹18.89 | ₹9,445.00 |
| 3,000+ | ₹17.40 | ₹52,200.00 |
| 6,000+ | ₹16.51 | ₹99,060.00 |
5 × ₹31.14
₹155.70
excl. GST
₹183.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
P5803NAG-VB
₹155.70 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 5.5A;3.4A
- Pd - Power Dissipation
- 1.15W
- RDS(on)
- 22mΩ@10V;55mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 3.2nC@5V;3.6nC@5V
- Gate Threshold Voltage (Vgs(th))
- 800mV
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.051 g
