VISHAYDatasheet (PDF)

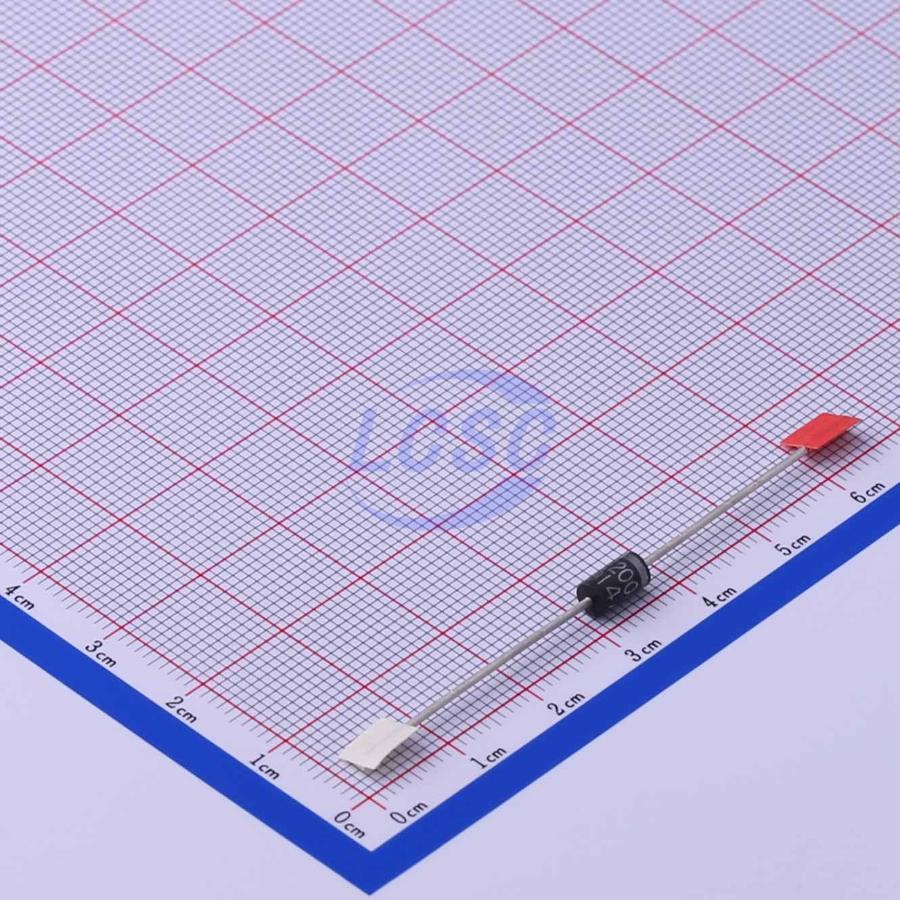

P6KE200A-E3/54
274VC Clamp 2.2A Ipp TVS DIODE DO-15(DO-204AC)
DO-15(DO-204AC)ROHS3 CompliantActive
TVS DIODE 171VWM 274VC DO-15(DO-204AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- P6KE200A-E3/54
- Store part #
- C467571
- Package / case
- DO-15(DO-204AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
103 in stock
#C467571
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹62.37 | ₹62.37 |
| 10+ | ₹50.42 | ₹504.20 |
| 30+ | ₹45.21 | ₹1,356.30 |
| 100+ | ₹38.90 | ₹3,890.00 |
| 500+ | ₹36.08 | ₹18,040.00 |
| 1,000+ | ₹30.43 | ₹30,430.00 |
| 2,000+ | ₹30.22 | ₹60,440.00 |
| 4,000+ | ₹29.99 | ₹1,19,960.00 |
1 × ₹62.37
₹62.37
excl. GST
₹73.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
P6KE200A-E3/54
₹62.37 for 1 + GST
Specifications
- Clamping Voltage
- 274V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 2.2A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 190V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 171V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.445 g
