VISHAYDatasheet (PDF)

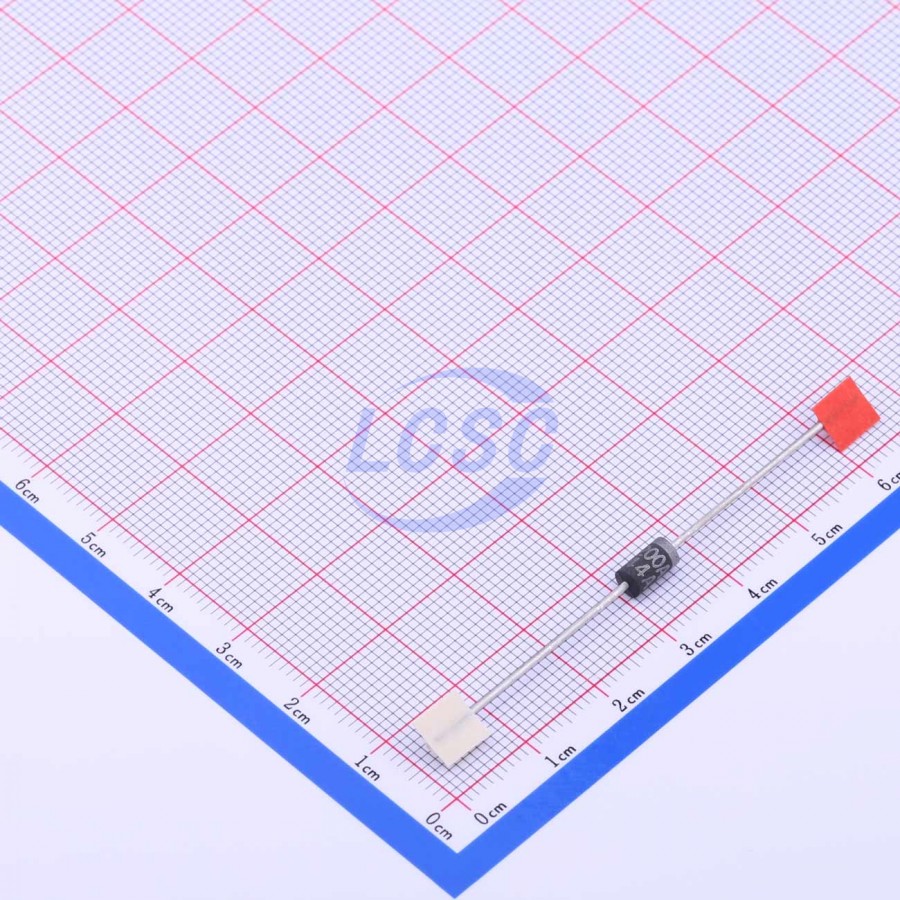

P6KE200A-E3/73
274VC Clamp 2.2A@10/1000us Ipp TVS DIODE DO-204AC(DO-15)
DO-204AC(DO-15)ROHS3 CompliantActive
TVS DIODE 171VWM 274VC DO-204AC(DO-15)
- Manufacturer
- VISHAY
- Manufacturer part #
- P6KE200A-E3/73
- Store part #
- C241906
- Package / case
- DO-204AC(DO-15)
- Category
- TVS Diodes
- Packaging
- Box-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,015 in stock
#C241906
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.41 | ₹217.05 |
| 50+ | ₹34.60 | ₹1,730.00 |
| 150+ | ₹30.81 | ₹4,621.50 |
| 500+ | ₹26.10 | ₹13,050.00 |
| 2,000+ | ₹24.00 | ₹48,000.00 |
| 4,000+ | ₹22.74 | ₹90,960.00 |
5 × ₹43.41
₹217.05
excl. GST
₹256.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per box
P6KE200A-E3/73
₹217.05 for 5 + GST
Specifications
- Clamping Voltage
- 274V
- Peak Pulse Current (Ipp)
- 2.2A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 210V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 171V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Box-packed
- Standard pack
- 2,000 / Box
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.487 g
