LittelfuseDatasheet (PDF)

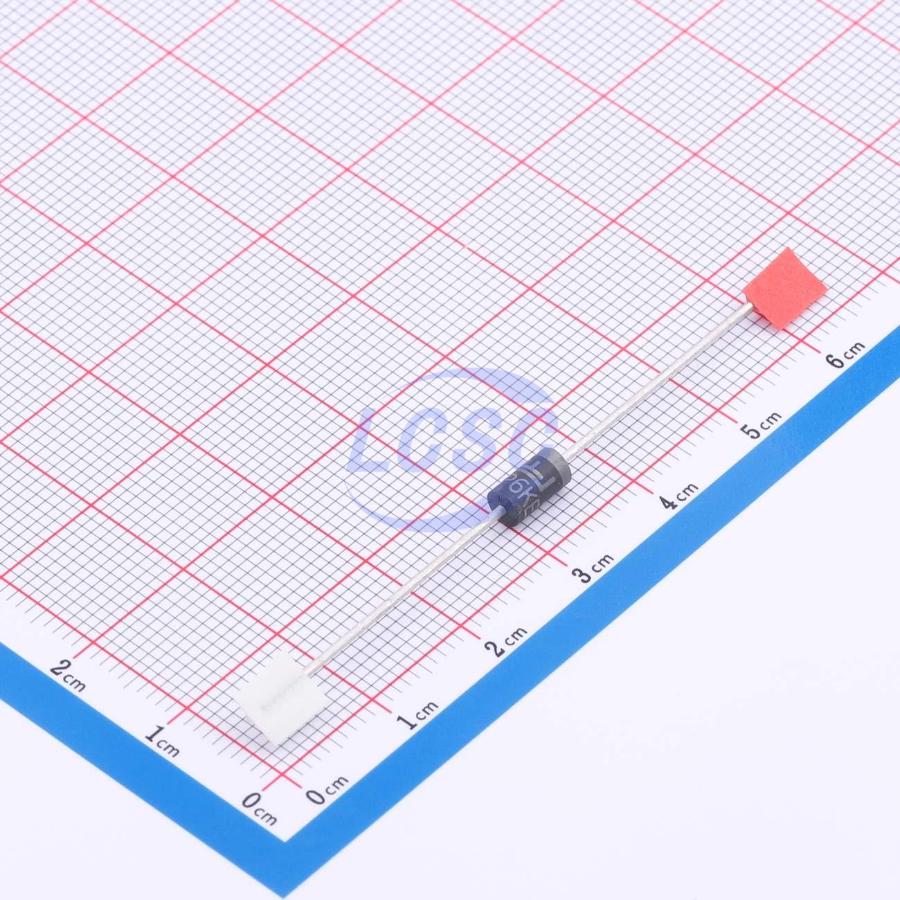

P6KE600A
828VC Clamp 750mA Ipp TVS DIODE DO-15(DO-204AC)
DO-15(DO-204AC)ROHS3 CompliantActive
- Manufacturer
- Littelfuse
- Manufacturer part #
- P6KE600A
- Store part #
- C1976447
- Package / case
- DO-15(DO-204AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
79 in stock
#C1976447
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹110.06 | ₹110.06 |
| 10+ | ₹108.12 | ₹1,081.20 |
| 30+ | ₹107.04 | ₹3,211.20 |
| 100+ | ₹105.76 | ₹10,576.00 |
1 × ₹110.06
₹110.06
excl. GST
₹129.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
P6KE600A
₹110.06 for 1 + GST
Specifications
- Clamping Voltage
- 828V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 750mA
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 570V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 512V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.519 g
Overview
The P6KE Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
- TVS components are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications.
Key features
- 600W peak pulse capability at 10/1000us waveform, repetition rate (duty cycles): 0.01%
- Glass passivated chip junction in DO - 15 Package
- Fast response time: typically less than 1.0ps from 0 Volts to BV min
- Excellent clamping capability
- Typical failure mode is short from over - specified voltage or current
- Whisker test conducted based on Table 4a and 4c of JEDEC JESD201A
- IEC 61000 - 4 - 2 ESD 30kV(Air), 30kV (Contact)
- EFT protection of data lines in accordance with IEC 61000 - 4 - 4
- Low incremental surge resistance
- Typical LR less than 1μA when VBR min>12V
- Compatible with high temperature reflow soldering (260℃ / 30s)
- UL Recognized epoxy meeting flammability classification V = 0
- Matter tin lead - free plated
- Halogen free and RoHS compliant
- Pb - free E3 means 2nd level interconnect is Pb free and the terminal finish material is tin(Sn) (IPC/ JEDEC J - STD - 609A.01)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | P6KE600A#C294171DOWO · DO-15 | DOWO | DO-15 | 540 | ₹24.26 · 540 in stock | View |
 | P6KE600A#C2978872EIC · DO-15 | EIC | DO-15 | 30 | ₹53.52 · 30 in stock | View |
 | P6KE550A#C53468369BORN · DO-15 | BORN | DO-15 | 1,050 | ₹21.46 · 1,050 in stock | View |
 | P6KE550A/B#C191832Brightking · DO-204AC(DO-15) | Brightking | DO-204AC(DO-15) | 2,000 | ₹17.09 · 2,000 in stock | View |
 | P6KE550A-HF#C3013425Comchip · DO-15 | Comchip | DO-15 | 98 | ₹115.13 · 98 in stock | View |
