LittelfuseDatasheet (PDF)

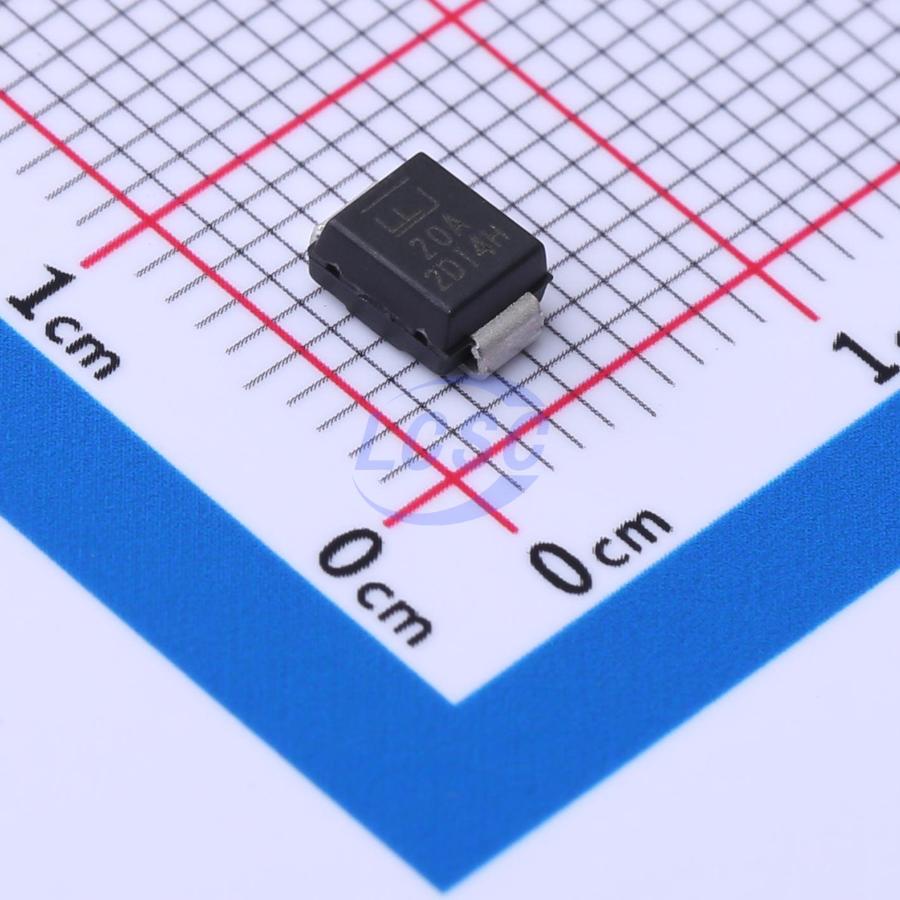

P6SMB20A
27.7VC Clamp 22A@10/1000us Ipp TVS DIODE DO-214AA
DO-214AAROHS3 CompliantActive
TVS DIODE 17.1VWM 27.7VC DO-214AA
- Manufacturer
- Littelfuse
- Manufacturer part #
- P6SMB20A
- Store part #
- C1972924
- Package / case
- DO-214AA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
825 in stock
#C1972924
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.04 | ₹95.20 |
| 50+ | ₹15.23 | ₹761.50 |
| 150+ | ₹13.32 | ₹1,998.00 |
| 500+ | ₹11.89 | ₹5,945.00 |
| 3,000+ | ₹10.76 | ₹32,280.00 |
| 6,000+ | ₹10.19 | ₹61,140.00 |
5 × ₹19.04
₹95.20
excl. GST
₹112.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
P6SMB20A
₹95.20 for 5 + GST
Specifications
- Clamping Voltage
- 27.7V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 22A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 21V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 17.1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.2 g
