LittelfuseDatasheet (PDF)

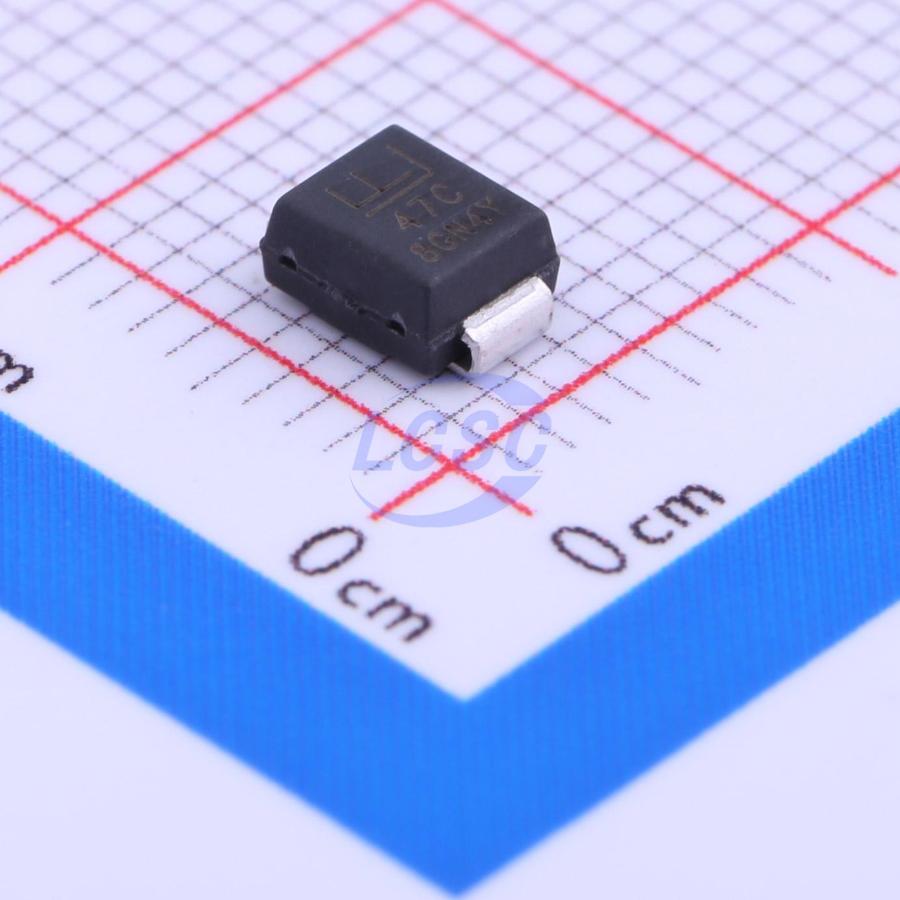

P6SMB47CA
64.8VC Clamp 9.4A Ipp TVS DIODE DO-214AA
DO-214AAROHS3 CompliantActive
- Manufacturer
- Littelfuse
- Manufacturer part #
- P6SMB47CA
- Store part #
- C223977
- Package / case
- DO-214AA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
280 in stock
#C223977
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.29 | ₹111.45 |
| 50+ | ₹21.92 | ₹1,096.00 |
| 150+ | ₹21.68 | ₹3,252.00 |
| 500+ | ₹21.45 | ₹10,725.00 |
5 × ₹22.29
₹111.45
excl. GST
₹131.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
P6SMB47CA
₹111.45 for 5 + GST
Specifications
- Clamping Voltage
- 64.8V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 9.4A
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 49.4V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 40.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.202 g
