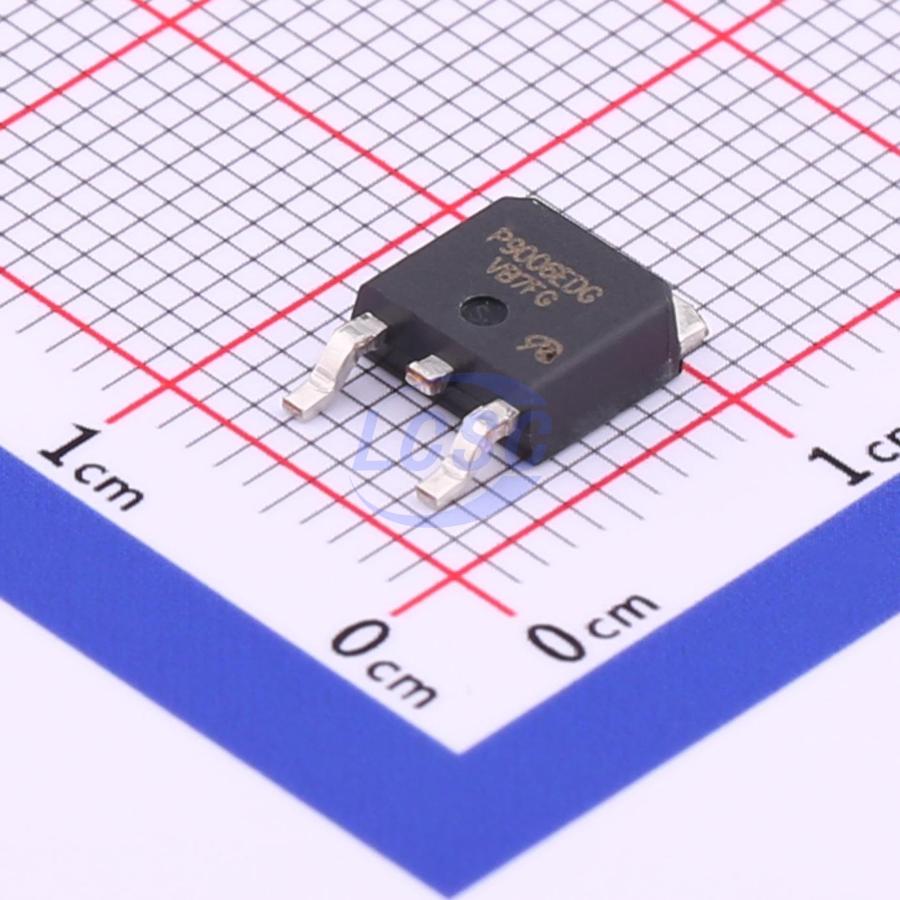

P9006EDG-VB
P-Channel 60V 30A 34W Surface Mount TO-252
TO-252RoHSActive
MOSFET P-CH 60V 30A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- P9006EDG-VB
- Store part #
- C710044
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C710044
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹98.40 | ₹98.40 |
| 10+ | ₹83.16 | ₹831.60 |
| 30+ | ₹75.54 | ₹2,266.20 |
| 100+ | ₹67.92 | ₹6,792.00 |
| 500+ | ₹46.60 | ₹23,300.00 |
| 1,000+ | ₹44.20 | ₹44,200.00 |
1 × ₹98.40
₹98.40
excl. GST
₹116.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
P9006EDG-VB
₹98.40 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 120pF
- Current - Continuous Drain(Id)
- 30A
- Ciss-Input Capacitance
- 1nF
- Pd - Power Dissipation
- 34W
- Reverse Transfer Capacitance (Crss)
- 100pF
- RDS(on)
- 61mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 10nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.369 g
Overview
Applications
- Load Switch
Key features
- Trench power MOSFET
- 100% unclamped inductive switching (UIS) tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MTD5P06ET4G-VB#C22389327VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹75.62 · 20 in stock | View |
 | 2SJ527STL-E-VB#C22389893VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹75.62 · 20 in stock | View |
 | STU1855PL-VB#C2680815VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹77.51 · 50 in stock | View |
 | IRFU9020TU-VB#C29778847VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹75.62 · 20 in stock | View |
 | SFT1305-TL-E-VB#C29779189VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 9 | ₹75.62 · 9 in stock | View |
