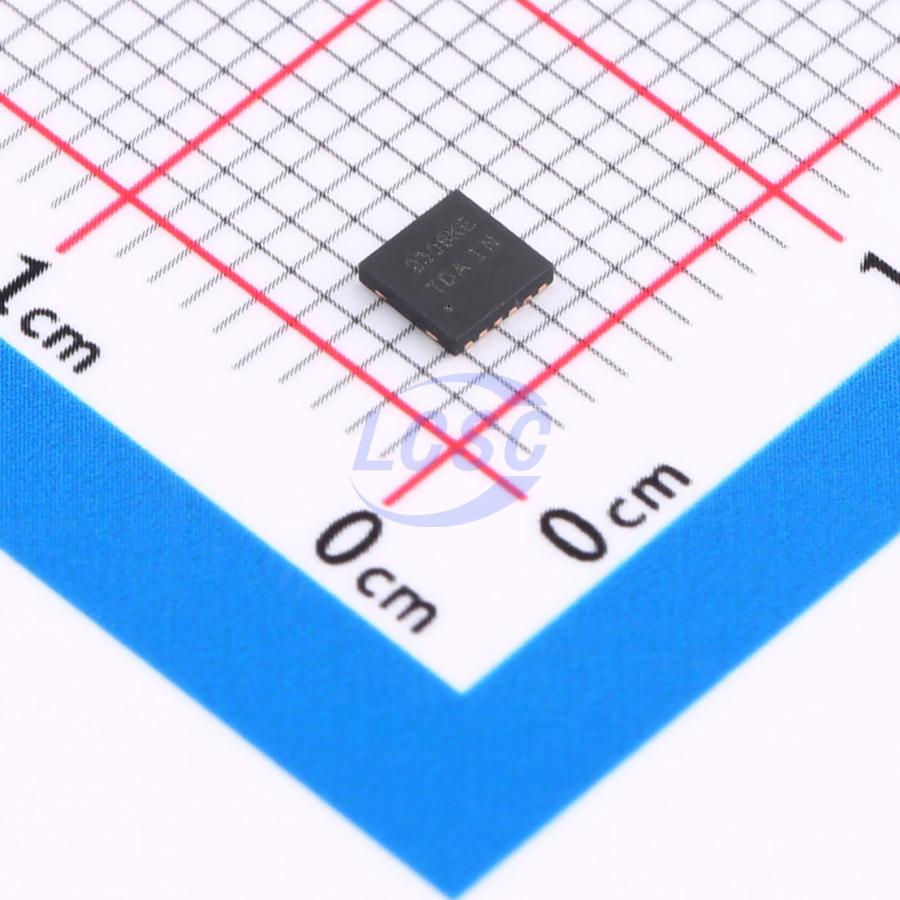

DIODES

PAM2306AYPKE

1.5MHz Step-down type Adjustable 1A WDFN-12L-EP(3x3) Voltage Regulators - DC DC Switching Regulators RoHS

WDFN-12L-EP(3x3)ROHS3 CompliantActive

Dual High-Efficiency PWM Step-Down DC-DC Converter

Manufacturer: DIODES
Manufacturer part #: PAM2306AYPKE
Store part #: C508236
Package / case: WDFN-12L-EP(3x3)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,493 in stock

#C508236

Stock & price checked 11 days ago

Quantity	Unit price	Pack price
1+	₹102.08	₹102.08
10+	₹84.02	₹840.20
30+	₹74.88	₹2,246.40
100+	₹65.95	₹6,595.00
500+	₹60.73	₹30,365.00
1,000+	₹57.91	₹57,910.00

Quantity (min 1)

1 × ₹102.08

₹102.08

excl. GST

₹120.45 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

PAM2306AYPKE

₹102.08 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Frequency - Switching: 1.5MHz
Function: Step-down type
Number of Outputs: 2
Features: Cycle-by-cycle current limiting;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.5V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 1.2V;1.5V;1.8V;2.5V;2.8V;3.3V
Output Current: 1A
Quiescent Current: 40uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.026 g

Overview

The PAM2306 is a dual step-down current-mode, DC-DC converter. At heavy load, the constant frequency PWM control provides excellent stability and transient response. To ensure the longest battery life in portable applications, the PAM2306 provides a power-saving PulseSkipping Modulation (PSM) mode to reduce quiescent current under light load operation. The PAM2306 supports a range of input voltages from 2.5V to 5.5V, allowing the use of a single Li+/Li -polymer cell, multiple Alkaline/NiMH cell, USB, and other standard power sources. The dual output voltages are available for 3.3V, 2.8V, 2.5V, 1.8V, 1.5V, 1.2V or adjustable. All versions employ internal power switch and synchronous rectifier to minimize external part count and realize high efficiency. During shutdown, the input is disconnected from the output and the shutdown current is less than 0.1A. Other key features include under-voltage lockout to prevent deep battery discharge.

Applications

Cellular Phone
Portable Electronics
Personal Information Appliances
Wireless and DSL Modems
MP3 Players

Key features

Efficiency up to 96%
Only 40μA (Typ. Per Channel) Quiescent Current
Output Current: Up to 1A per Channel
Internal Synchronous Rectifier
1.5MHz Switching Frequency
Soft Start Under-Voltage Lockout
Short Circuit Protection
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish NiPdAu over Copper Leadframe Solderable per MIL-STD-202, Method 208
Weight: 0.017 grams (Approximate)
Thermal Shutdown
Small U-DFN3030-12 Package
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
