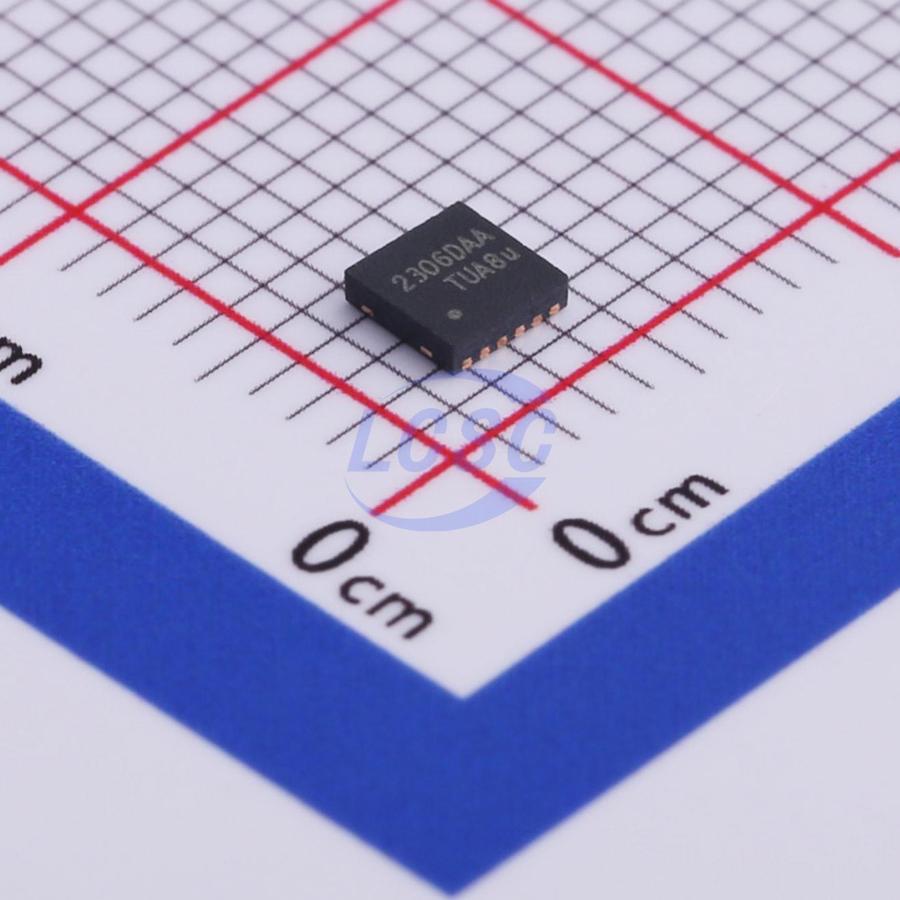

PAM2306DYPAA
1.5MHz Step-down type Adjustable 1A WDFN-12L-EP(3x3) Voltage Regulators - DC DC Switching Regulators RoHS
WDFN-12L-EP(3x3)ROHS3 CompliantActive
Dual High-Efficiency PWM Step-Down DC-DC Converter
- Manufacturer
- DIODES
- Manufacturer part #
- PAM2306DYPAA
- Store part #
- C508237
- Package / case
- WDFN-12L-EP(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,256 in stock
#C508237
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹85.28 | ₹85.28 |
| 10+ | ₹70.49 | ₹704.90 |
| 30+ | ₹64.18 | ₹1,925.40 |
| 100+ | ₹56.35 | ₹5,635.00 |
| 500+ | ₹52.87 | ₹26,435.00 |
| 1,000+ | ₹50.68 | ₹50,680.00 |
1 × ₹85.28
₹85.28
excl. GST
₹100.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PAM2306DYPAA
₹85.28 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 1.5MHz
- Number of Outputs
- 2
- Function
- Step-down type
- Features
- Cycle-by-cycle current limiting;Light load efficient mode;Load disconnect;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.5V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1A
- Quiescent Current
- 40uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.054 g
Overview
PAM2306D is a dual-channel step-down current-mode DC-DC converter. Under heavy load, constant-frequency PWM control delivers excellent stability and transient response. To maximize battery life in portable applications, PAM2306D features a power-saving pulse-skip modulation (PSM) mode that reduces quiescent current during light-load operation. PAM2306D supports an input voltage range of 2.5V to 5.5V, allowing use with single-cell Li+/Li-polymer batteries, multi-cell alkaline/NiMH batteries, USB, and other standard power sources. Both output voltages are adjustable. All versions integrate internal power switches and synchronous rectifiers to minimize external component count and achieve high efficiency. During shutdown, the input is disconnected from the output, with shutdown current less than 0.1μA. Other key features include undervoltage lockout to prevent deep battery discharge.
Applications
- Mobile phones
- Portable electronic devices
- Personal information appliances
- Wireless and DSL modems
- MP3 players
Key features
- Up to 96% efficiency
- Only 40μA (typical) quiescent current per channel
- Up to 1A output current per channel
- Internal synchronous rectifier
- 1.5MHz switching frequency
- Soft-start
- Undervoltage lockout
- Short-circuit protection
- Thermal shutdown
- Small 12-pin WDFN 3x3 package
- Lead-free finish; RoHS compliant
- Halogen- and antimony-free, "Green" device
