MSKSEMI

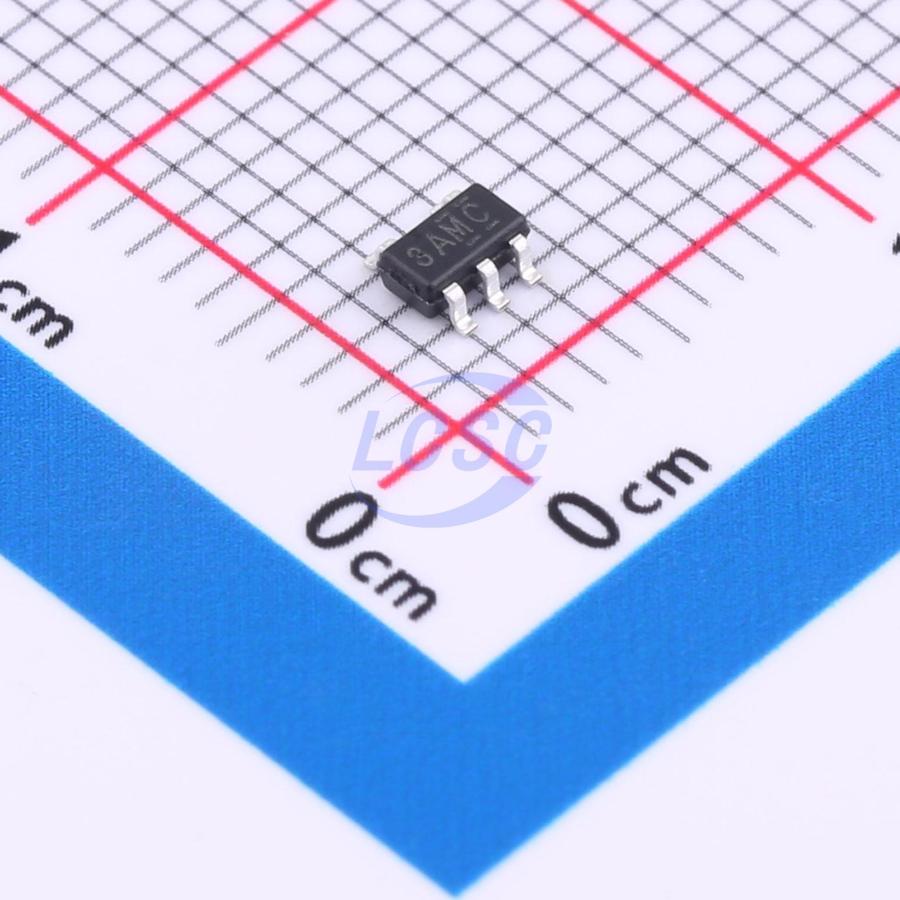

PAM2804AAB010(MS)

1.5MHz Buck 1 DC-DC 1A 2.5V~5.5V SOT-23-5 LED Drivers ICs

SOT-23-5RoHSActive

Constant Frequency, Current Mode PWM Step-down LED Driver

Manufacturer: MSKSEMI
Manufacturer part #: PAM2804AAB010(MS)
Store part #: C20627214
Package / case: SOT-23-5
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

225 in stock

#C20627214

Stock & price checked 37 h ago

Quantity	Unit price	Pack price
5+	₹15.29	₹76.45
50+	₹12.07	₹603.50
150+	₹10.45	₹1,567.50
500+	₹9.23	₹4,615.00
3,000+	₹8.57	₹25,710.00
6,000+	₹8.08	₹48,480.00

Quantity (min 5, multiples of 5)

5 × ₹15.29

₹76.45

excl. GST

₹90.21 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

PAM2804AAB010(MS)

₹76.45 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Frequency - Switching: 1.5MHz
Features: Over Voltage Protection;Short Circuit Protection;Over-Temperature Protection (OTP)
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+125℃
Topology: Buck
Number of Channels: 1
Type: DC-DC
Output Current: 1A
Voltage - Input(DC): 2.5V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.04 g

Overview

The PAM2804AAB010(MS) is a constant frequency, current mode PWM step-down LED driver with 1A output current and 1.5MHz switch frequency. The device integrates a main switch and a synchronous rectifier for high efficiency without an external Schottky diode. This device offers two operation modes, PWM control and PFM Mode switching control, which allows a high efficiency over the wider range of the LED current. The feedback voltage is 0.1V typically. The device also integrates many protection features included input OVP, cycle-by-cycle current limit, over temperature protection.
