NexperiaDatasheet (PDF)

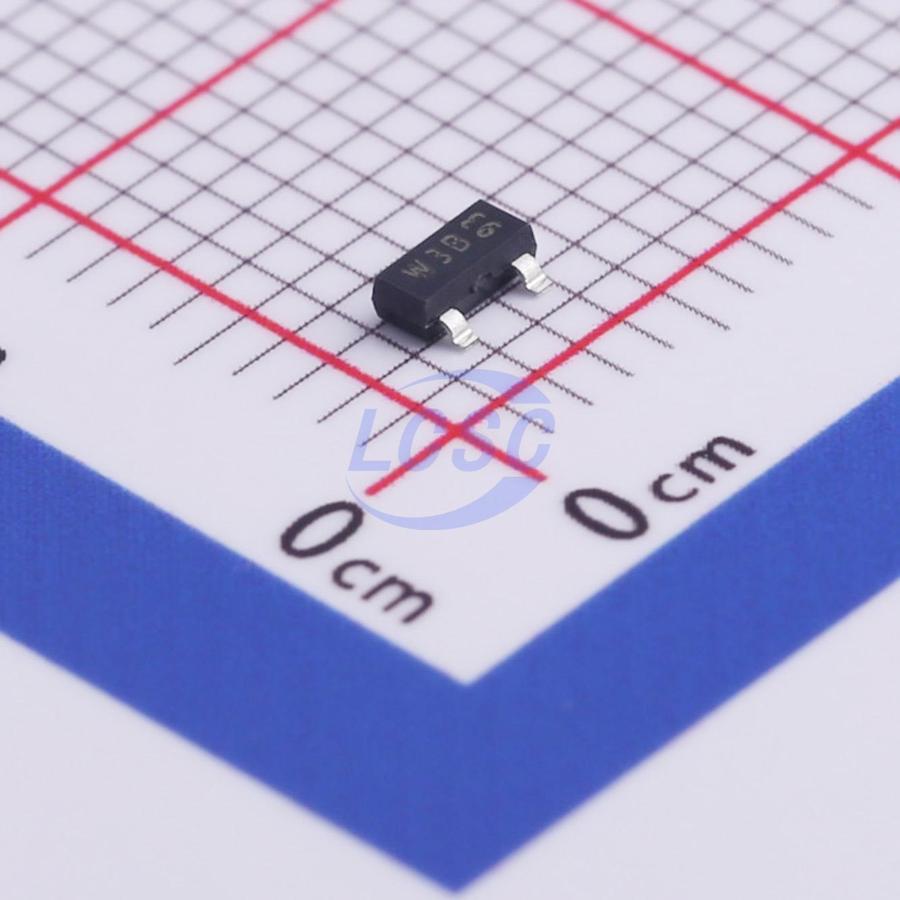

PBSS4120T,215
Bipolar (BJT) Transistor NPN 20V 1A 100MHz 480mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
TRANS NPN 20V 1A SOT-23
- Manufacturer
- Nexperia
- Manufacturer part #
- PBSS4120T,215
- Store part #
- C455069
- Package / case
- SOT-23
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,255 in stock
#C455069
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.91 | ₹219.55 |
| 50+ | ₹34.29 | ₹1,714.50 |
| 150+ | ₹30.18 | ₹4,527.00 |
| 500+ | ₹25.03 | ₹12,515.00 |
| 3,000+ | ₹22.74 | ₹68,220.00 |
| 6,000+ | ₹21.38 | ₹1,28,280.00 |
5 × ₹43.91
₹219.55
excl. GST
₹259.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PBSS4120T,215
₹219.55 for 5 + GST
Specifications
- Operating Temperature
- -65℃~+150℃
- Current - Collector Cutoff
- 50uA
- Transition frequency(fT)
- 100MHz
- Collector - Emitter Voltage VCEO
- 20V
- Emitter-Base Voltage VEBO
- 5V
- DC Current Gain
- 300
- Pd - Power Dissipation
- 480mW
- Current - Collector(Ic)
- 1A
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 250mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
NPN BISS transistor in a SOT23 plastic package providing ultra low VCEsat and RCEsat parameters. PNP complement: PBSS5120T.
Applications
- Power management
- DC/DC conversion
- Supply line switching
- Battery charger
- LCD backlighting
- Peripheral driver
- Driver in low supply voltage applications (e.g. lamps and LEDs)
- Inductive load drivers (e.g. relays, buzzers and motors)
Key features
- Low collector-emitter saturation voltage VCEsat
- High collector current capability IC and ICM
- High efficiency leading to less heat generation
- Reduced printed-circuit board requirements
- Cost effective alternative to MOSFETs in specific applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NH491#C7427903NH · SOT-23 | NH | SOT-23 | 1,600 | ₹3.68 · 1,600 in stock | View |
 | PBSS4230T,215#C456109Nexperia · SOT-23 | Nexperia | SOT-23 | 65 | ₹38.72 · 65 in stock | View |
 | SS8050#C51953470Chao He · SOT-23 | Chao He | SOT-23 | 31,120 | ₹1.48 · 31,120 in stock | View |
 | FMMT619-JSM#C28642377JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 1,920 | ₹5.93 · 1,920 in stock | View |
 | FMMT619TA-HXY#C47506859HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 55 | ₹13.90 · 55 in stock | View |
