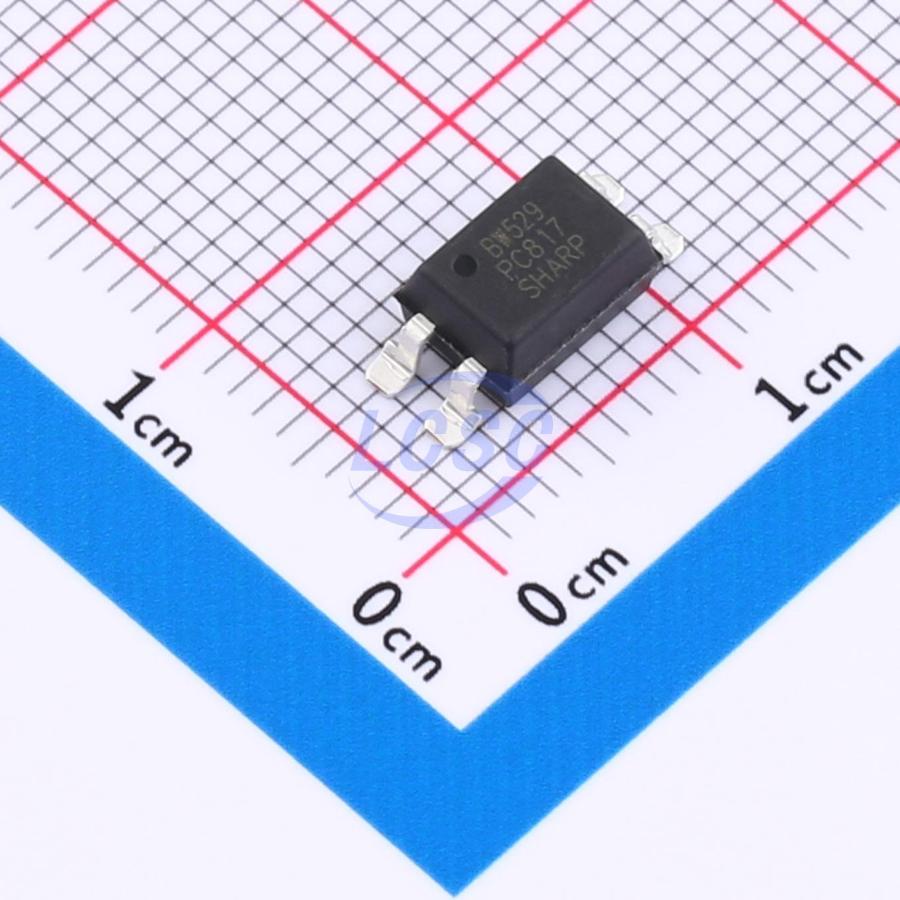

PC817X2CSP9F
Phototransistor Output 5kVrms SMD-4P
OPTOISOLATOR 5kV TRANS SMD-4P
- Manufacturer
- SHARP
- Manufacturer part #
- PC817X2CSP9F
- Store part #
- C66405
- Package / case
- SMD-4P
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80,960 in stock
#C66405
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.73 | ₹53.65 |
| 50+ | ₹8.55 | ₹427.50 |
| 150+ | ₹7.44 | ₹1,116.00 |
| 500+ | ₹6.51 | ₹3,255.00 |
| 2,000+ | ₹6.19 | ₹12,380.00 |
| 4,000+ | ₹5.97 | ₹23,880.00 |
5 × ₹10.73
₹53.65
excl. GST
₹63.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
PC817X2CSP9F
₹53.65 for 5 + GST
Specifications
- Rise time
- 4us
- Output Current
- 50mA
- Fall time
- 3us
- Vce Saturation(VCE(sat))
- 200mV@20mA,1mA
- Operating Temperature
- -30℃~+100℃
- Load Voltage
- 80V
- Reverse Voltage
- 6V
- Current transfer ratio
- 600%;50%
- Voltage - Forward(Vf)
- 1.2V
- Forward Current(If)
- 50mA
- Total Power Dissipation(Pd)
- 200mW
- Output Type
- Phototransistor
- Input type
- DC
- Isolation Voltage(Vrms)
- 5kV
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.415 g
Overview
Applications
- OA equipment
- Audiovisual equipment
- Home appliances
- Telecommunications equipment (terminals)
- Measurement equipment
- Processing machinery
- Computers
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT-817S1-CTP1#C34376177HENGTUO · SMD-4P | HENGTUO | SMD-4P | 40,910 | ₹6.91 · 40,910 in stock | View |
 | HT-817S1-BTP1#C34376178HENGTUO · SMD-4P | HENGTUO | SMD-4P | 1,200 | ₹6.81 · 1,200 in stock | View |
 | HT-817S1-CTP1-F#C34376181HENGTUO · SMD-4-S1 | HENGTUO | SMD-4-S1 | 11,440 | ₹3.33 · 11,440 in stock | View |
 | HT-817S1-BTP1-F#C34376182HENGTUO · SMD-4-S1 | HENGTUO | SMD-4-S1 | 16,770 | ₹3.01 · 16,770 in stock | View |
 | QX817B-CuH-S#C49023613NQUNXIN · SMD-4P | NQUNXIN | SMD-4P | 1,805 | ₹16.19 · 1,805 in stock | View |
Questions about PC817X2CSP9F
What Is the Isolation Voltage for This Optoisolator?
The isolation voltage is 5kv vrms.
What Are the Typical Applications for the PC817X2CSP9F?
Applications include oa equipment, audiovisual equipment, home appliances, and telecommunications terminals.
What Is the Maximum Forward Current for This Device?
The maximum forward current is 50ma.
Does This Product Comply With RoHS Standards?
Yes, the product is rohs compliant.
What Is the Minimum Order Quantity Through LCSC?
The minimum order quantity is 5 pieces.
