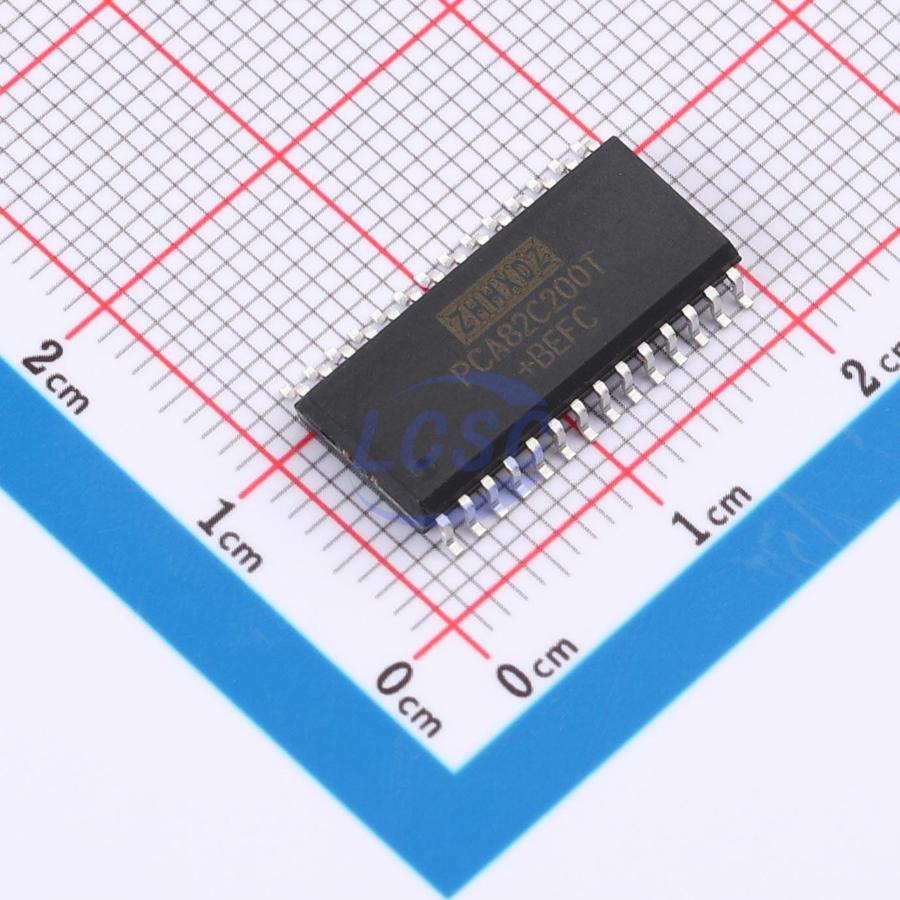

PCA82C200T-HX

PCA82C200T-HX is a stand-alone CAN controller designed for mobile applications and area network control in general industrial environments. It also introduces a new operating mode called PeliCAN, which supports the CAN 2.0B protocol with numerous enhanced features.

Key features

• Compatible with default BasicCAN mode
• Extended 64-byte receive buffer (FIFO)
• Fully compliant with CAN 2.0B protocol
• Supports 11-bit and 29-bit identifiers
• Bit rate up to 1Mbits/s
• Read/write error counters
• Programmable error warning limit
• Last error code register
• Interrupt for each CAN bus error
• Detailed arbitration lost interrupt control via dedicated control bits
• Single-shot transmission (no retransmission)
• Silent mode (no acknowledgment error)
• Hot plug-in support (software bit rate detection)
• Extended acceptance filter (4-byte code and 4-byte mask)
• Self-reception request
• 24MHz clock frequency
• Interface support for multiple microprocessor types
• Programmable CAN output driver configuration
• Operating temperature range: -40°C to +125°C
