MSKSEMI

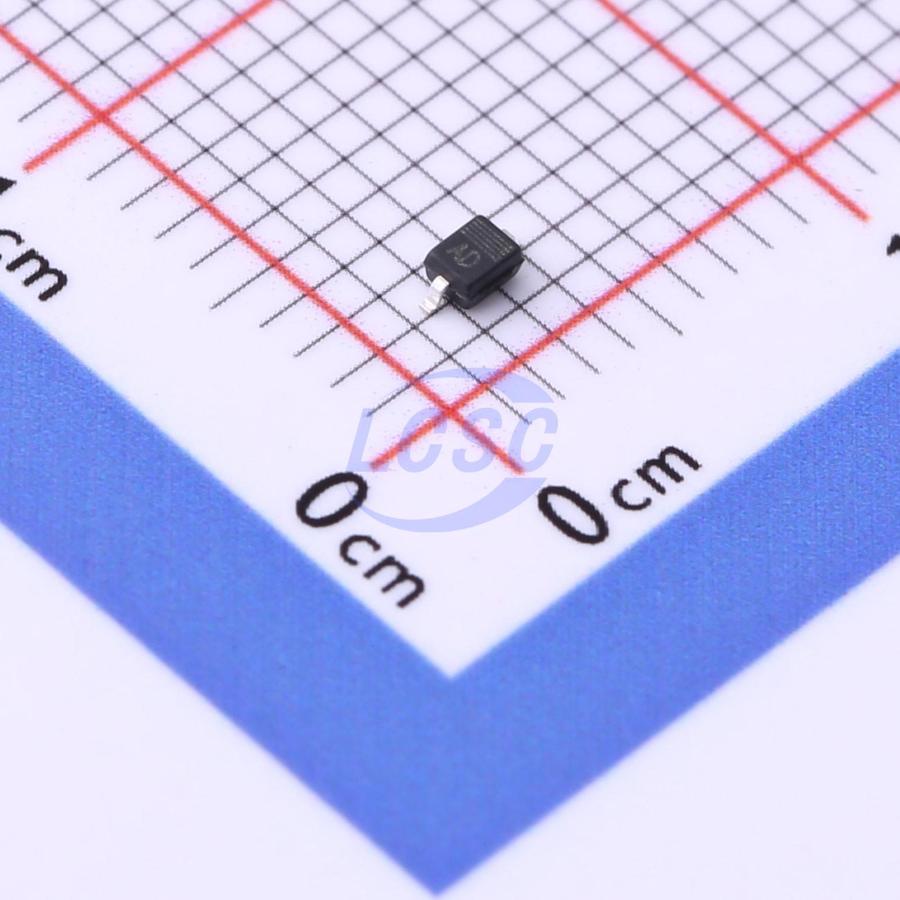

PESD12VL1BA-MS

19VC 28VC Clamp 10A@8/20us Ipp ESD DIODE SOD-323

SOD-323ROHS CompliantActive

ESD DIODE 12VWM 19VC 28VC SOD-323

Manufacturer: MSKSEMI
Manufacturer part #: PESD12VL1BA-MS
Store part #: C3029030
Package / case: SOD-323
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,690 in stock

#C3029030

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹8.11	₹81.10
100+	₹6.54	₹654.00
300+	₹5.76	₹1,728.00
3,000+	₹4.80	₹14,400.00
6,000+	₹4.33	₹25,980.00
9,000+	₹4.09	₹36,810.00

Quantity (min 10, multiples of 10)

10 × ₹8.11

₹81.10

excl. GST

₹95.70 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

PESD12VL1BA-MS

₹81.10 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 28V
Peak Pulse Current (Ipp): 10A@8/20us
Peak Pulse Power Dissipation (Ppp): 500W
Number of Channels: 1
Voltage - Breakdown: 13.3V
type: ESD
Reverse Leakage Current (Ir): 500nA
Reverse Stand-Off Voltage (Vrwm): 12V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.03 g

Overview

Applications

Cellular Handsets and Accessories
Personal Digital Assistants
Notebooks and Handhelds
Portable Instrumentation
Peripherals
Pagers Peripherals
Desktop and Servers

Key features

500W peak pulse power (8/20µs)
Protects one data or power line
Ultra low leakage: nA level
Operating voltage: 3.3V, 5V, 12V, 15, 24V
Ultra low clamping voltage
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
IEC61000-4-4 (EFT) 40A (5/50ns)
RoHS Compliant
