NexperiaDatasheet (PDF)

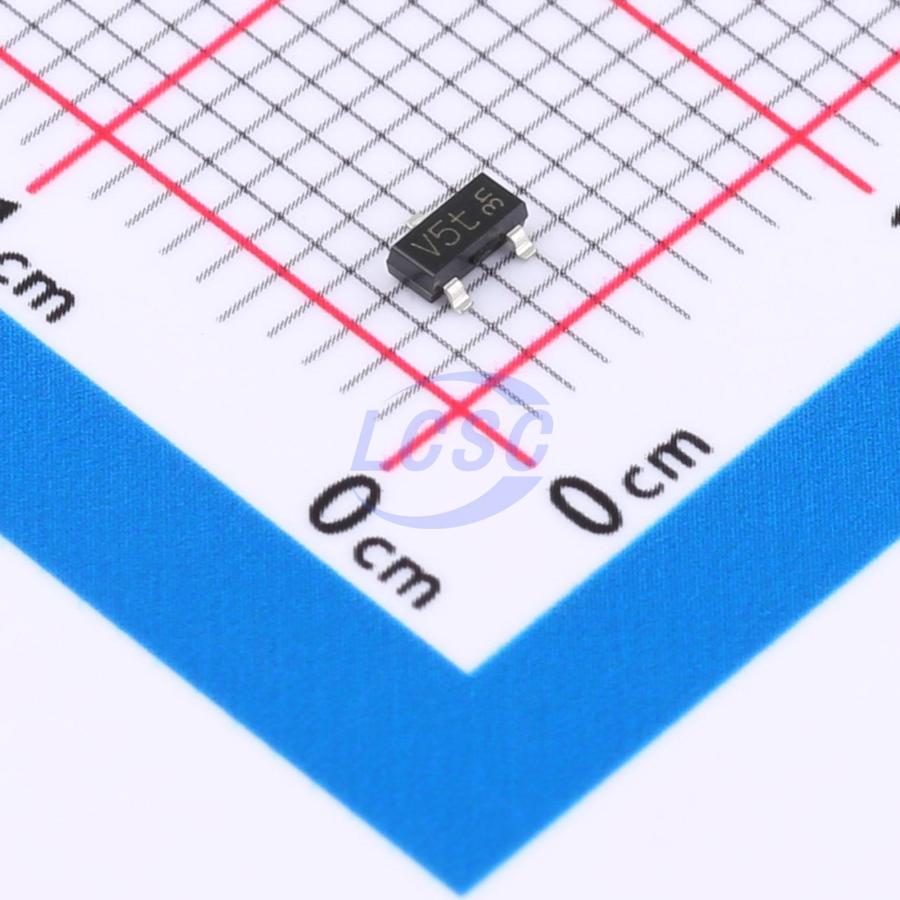

PESD12VL2BT-QR
5A@8/20us 200W@8/20us 16.7V Bidirectional 12V TO-236AB TVS Diodes RoHS
TO-236ABROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PESD12VL2BT-QR
- Store part #
- C20235743
- Package / case
- TO-236AB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,699 in stock
#C20235743
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.32 | ₹83.32 |
| 10+ | ₹67.22 | ₹672.20 |
| 30+ | ₹59.18 | ₹1,775.40 |
| 100+ | ₹51.12 | ₹5,112.00 |
| 500+ | ₹46.34 | ₹23,170.00 |
| 1,000+ | ₹43.95 | ₹43,950.00 |
1 × ₹83.32
₹83.32
excl. GST
₹98.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD12VL2BT-QR
₹83.32 for 1 + GST
Specifications
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 200W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 16.7V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.024 g
Overview
Low capacitance dual bidirectional ESD protection diodes in a compact SOT23 SMD plastic package, designed to protect two signal lines from damage caused by ESD and other transient phenomena.
Applications
- Computers & Peripherals
- Audio & Video Equipment
- Mobile Phones & Accessories
- Communication Systems
- Portable Electronic Devices
- SIM Card Protection
Key features
- ESD protection for two lines
- Maximum peak pulse power: P_PPM = 200 W
- Low clamping voltage: V_CL = 37 V
- Compact SMD plastic package
- Ultra-low leakage current: I_RM = 1 nA
- ESD protection up to 30 kV
- IEC 61000-4-2, Level 4 (ESD)
- IEC 61000-4-5 (Surge); I_PPM = 5 A
- AEC-Q101 qualified, recommended for automotive applications
