TECH PUBLICDatasheet (PDF)

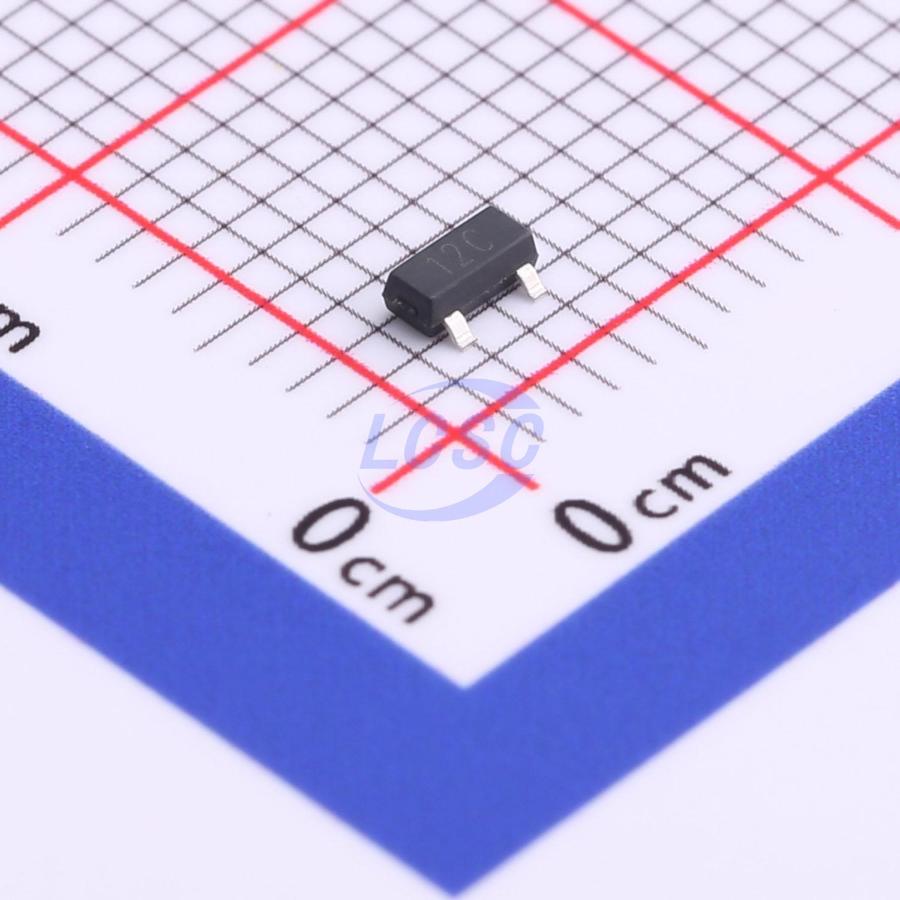

PESD12VL2BT-TP
15VC 24VC Clamp 10A@8/20us Ipp ESD DIODE SOT-23
SOT-23RoHSActive
ESD DIODE 12VWM 15VC 24VC SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PESD12VL2BT-TP
- Store part #
- C2827700
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,955 in stock
#C2827700
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.65 | ₹73.25 |
| 50+ | ₹11.83 | ₹591.50 |
| 150+ | ₹10.43 | ₹1,564.50 |
| 500+ | ₹9.37 | ₹4,685.00 |
| 3,000+ | ₹7.57 | ₹22,710.00 |
| 6,000+ | ₹7.14 | ₹42,840.00 |
5 × ₹14.65
₹73.25
excl. GST
₹86.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD12VL2BT-TP
₹73.25 for 5 + GST
Specifications
- Clamping Voltage
- 24V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 10A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 300W@8/20us
- Voltage - Breakdown
- 13.3V
- Number of Channels
- 2
- type
- TVS
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
Applications
- Cellular Handsets and Accessories
- Notebooks and Handhelds
- Portable Instrumentation
- Set Top Box
- Industrial Controls
Key features
- 300W peak pulse power(8/20us)
- Protects two bi-directional lines
- Ultra low leakage: nA level
- Operating voltage: 12V
- Low clamping voltage
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- RoHS Compliant
