NexperiaDatasheet (PDF)

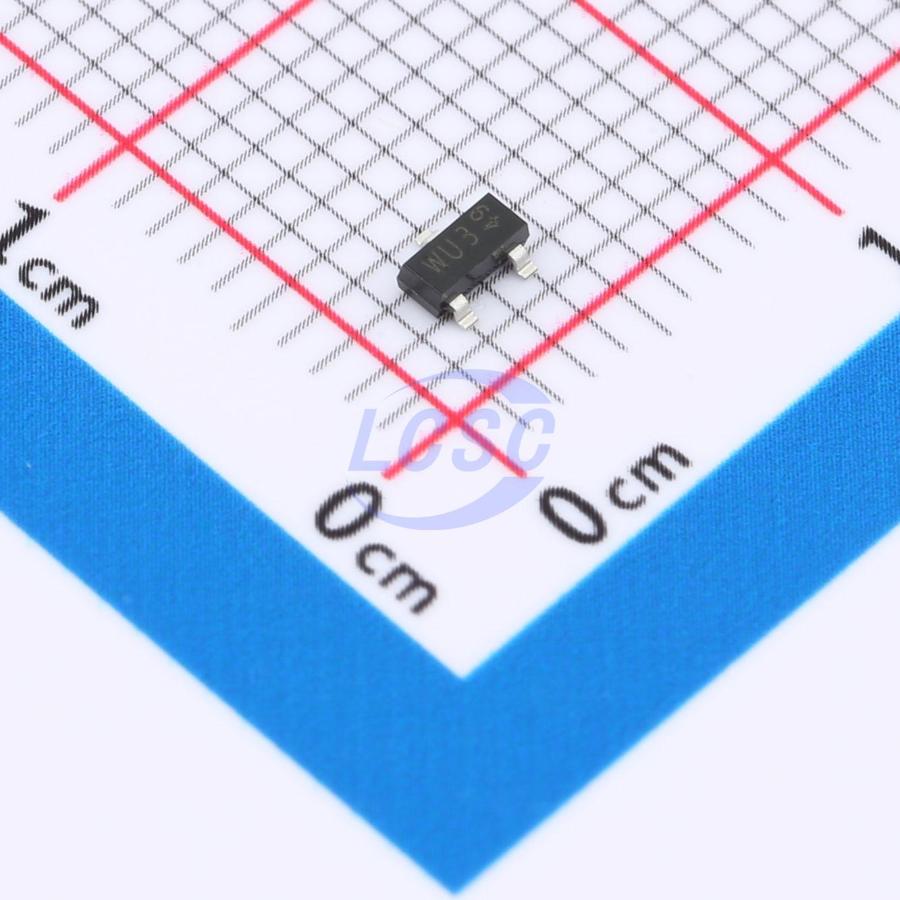

PESD15VS2UT-QR
SOT-23 TVS Diodes RoHS
SOT-23ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PESD15VS2UT-QR
- Store part #
- C7508744
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,865 in stock
#C7508744
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.04 | ₹130.20 |
| 50+ | ₹20.67 | ₹1,033.50 |
| 150+ | ₹18.38 | ₹2,757.00 |
| 500+ | ₹15.51 | ₹7,755.00 |
| 3,000+ | ₹14.22 | ₹42,660.00 |
| 6,000+ | ₹13.45 | ₹80,700.00 |
5 × ₹26.04
₹130.20
excl. GST
₹153.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD15VS2UT-QR
₹130.20 for 5 + GST
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.025 g
Overview
Single unidirectional dual-line ESD protection diode in SOT23 plastic package. Designed to protect up to two transmission lines or data lines from ESD damage.
Applications
- Computers & Peripherals
- Communication Systems
- Audio & Video Equipment
- High-Speed Data Lines
- Parallel Ports
Key features
- Unidirectional ESD protection for up to two lines
- Maximum peak pulse power: P_pp = 160 W at pulse width t_p = 8/20 μs
- Low clamping voltage: V_(CL)R = 40 V at peak pulse current I_pp = 5 A
- Ultra-low reverse leakage current: I_RM < 20 nA
- ESD protection capability >30 kV
- Compliant with IEC 61000-4-2; Level 4 (ESD)
- Compliant with IEC 61000-4-5 (Surge); I_pp = 5 A at pulse width t_p = 8/20 μs
- AEC-Q101 qualified, recommended for automotive applications
