TECH PUBLICDatasheet (PDF)

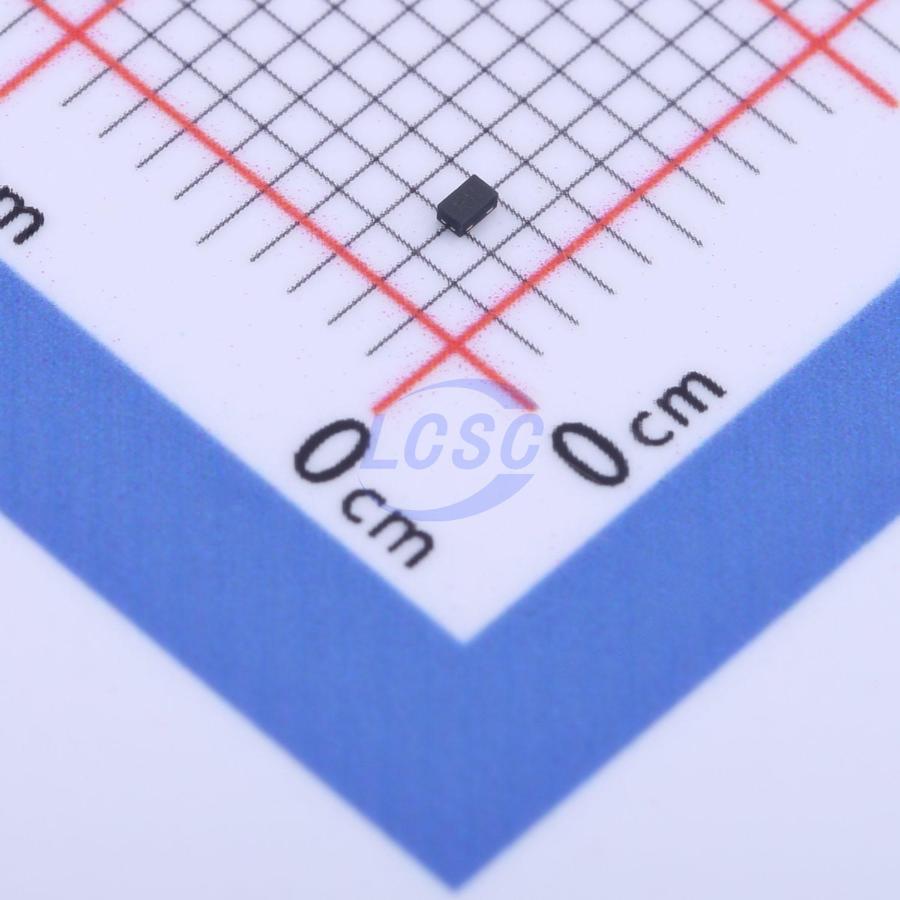

PESD18VF1BL-P
40VC Clamp 2A@8/20us Ipp ESD DIODE DFN1006-2(0402)
DFN1006-2(0402)RoHSActive
ESD DIODE 18VWM 40VC DFN1006-2(0402)
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PESD18VF1BL-P
- Store part #
- C2928702
- Package / case
- DFN1006-2(0402)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,210 in stock
#C2928702
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.83 | ₹78.30 |
| 100+ | ₹6.34 | ₹634.00 |
| 300+ | ₹5.60 | ₹1,680.00 |
| 1,000+ | ₹5.04 | ₹5,040.00 |
| 5,000+ | ₹4.09 | ₹20,450.00 |
| 10,000+ | ₹3.86 | ₹38,600.00 |
10 × ₹7.83
₹78.30
excl. GST
₹92.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
PESD18VF1BL-P
₹78.30 for 10 + GST
Specifications
- Clamping Voltage
- 40V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 2A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 90W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 19.5V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 18V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.011 g
Overview
Applications
- VGA, DVI, SDI, USB1.0, USB2.0, USB3.0, USB3.1
- High Definition Multi - Media Interface (HDMI1.3/1.4/2.0)
- Serial and Parallel Ports
- Notebooks, Desktops, Servers
- Peripherals
Key features
- Low operating voltage: ±18V
- Ultralow capacitance: 0.3pF typical
- Ultra low leakage: nA level
- Low clamping voltage
- 2-pin leadless package
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±15kV
- IEC61000 - 4 - 5 (Lightning) 2A (8/20 μs)
- RoHS Compliant
- Lead Finish: NiPdAu
