TECH PUBLICDatasheet (PDF)

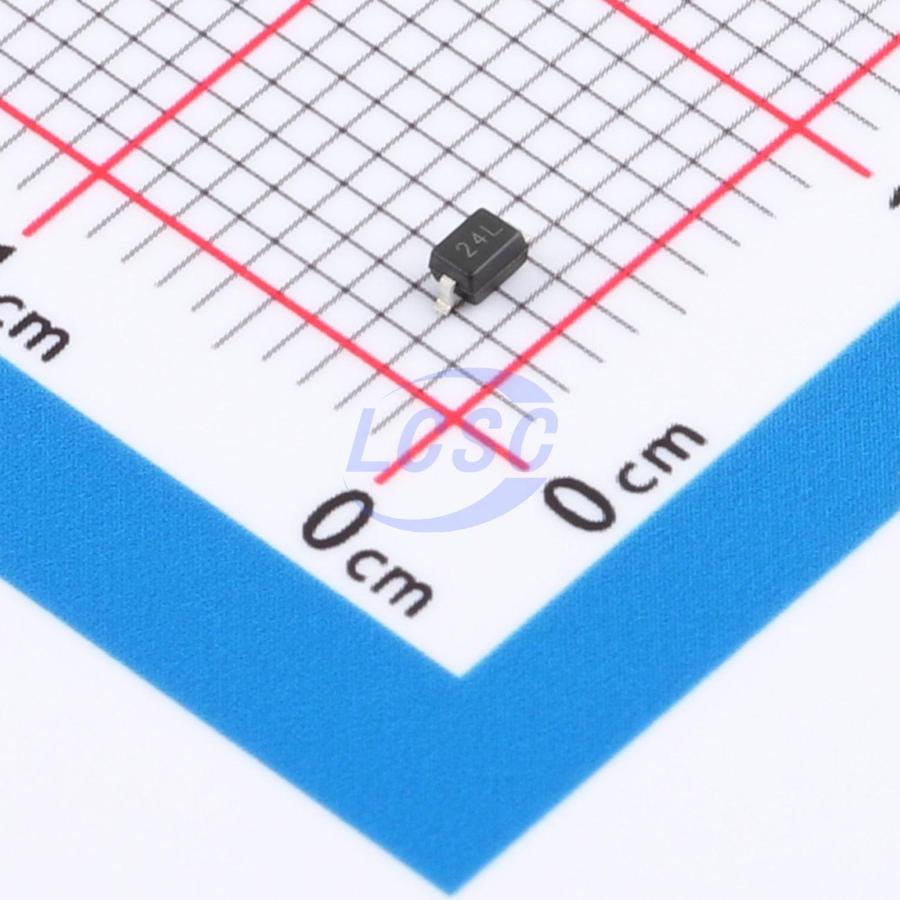

PESD1IVN27-A(TP)
40V 4A@8/20us 140W@8/20us 28V 24V SOD-323 TVS Diodes
SOD-323RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PESD1IVN27-A(TP)
- Store part #
- C52145924
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,460 in stock
#C52145924
Stock & price checked 16 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.09 | ₹101.80 |
| 200+ | ₹3.94 | ₹788.00 |
| 600+ | ₹3.31 | ₹1,986.00 |
| 3,000+ | ₹2.92 | ₹8,760.00 |
| 9,000+ | ₹2.59 | ₹23,310.00 |
| 21,000+ | ₹2.41 | ₹50,610.00 |
20 × ₹5.09
₹101.80
excl. GST
₹120.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD1IVN27-A(TP)
₹101.80 for 20 + GST
Specifications
- Clamping Voltage
- 40V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 140W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 28V
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.028 g
Overview
Applications
- Mobile Phones & Accessories
- Personal Digital Assistants
- Laptops & Handheld Devices
- Portable Instruments
- Peripherals
- Pager Peripherals
Key features
- 140W peak pulse power (8/20μs)
- Protects one data or power line
- Ultra-low leakage: nanoamp level
- Working voltage: 24V
- Ultra-low clamping voltage
- Compliant with:
- IEC 61000-4-2 (ESD) immunity test: air discharge: ±30kV; contact discharge: ±30kV
- IEC 61000-4-4 (lightning) 4A (8/20ns)
