TECH PUBLICDatasheet (PDF)

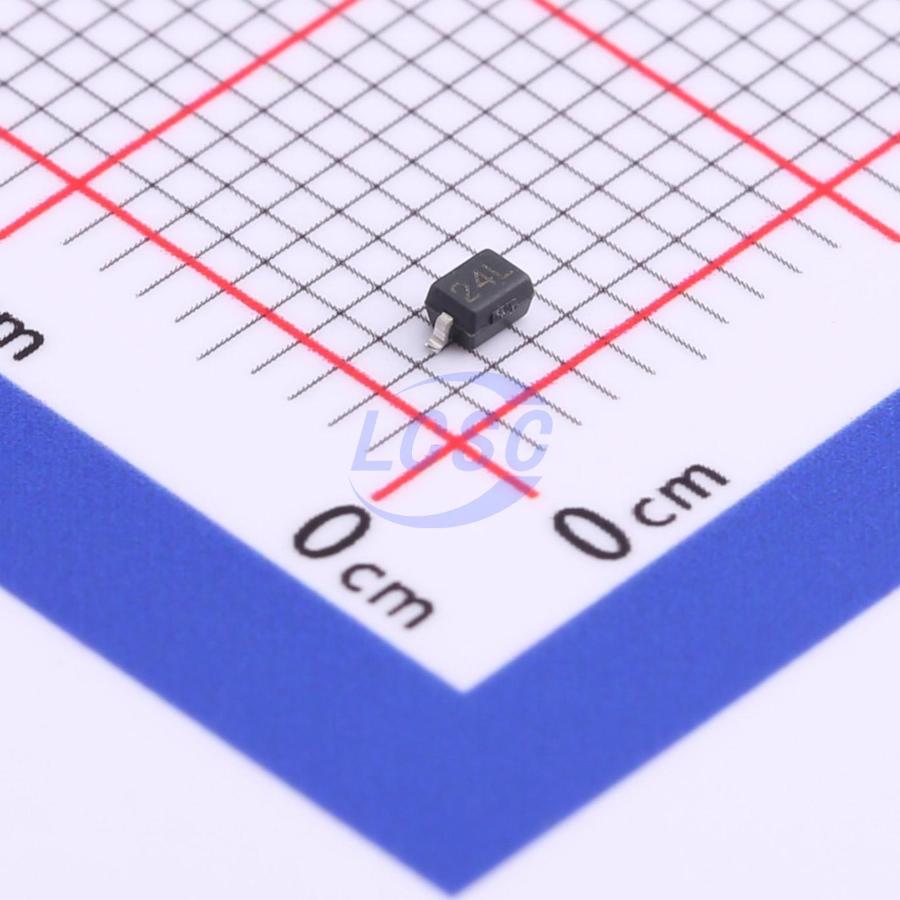

PESD24VL1BA
60VC Clamp 3.5A@8/20us Ipp ESD DIODE SOD-323
SOD-323RoHSActive
ESD DIODE 24VWM 60VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PESD24VL1BA
- Store part #
- C2827692
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,740 in stock
#C2827692
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.28 | ₹105.60 |
| 200+ | ₹4.11 | ₹822.00 |
| 600+ | ₹3.47 | ₹2,082.00 |
| 3,000+ | ₹2.87 | ₹8,610.00 |
| 9,000+ | ₹2.54 | ₹22,860.00 |
| 21,000+ | ₹2.35 | ₹49,350.00 |
20 × ₹5.28
₹105.60
excl. GST
₹124.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD24VL1BA
₹105.60 for 20 + GST
Specifications
- Clamping Voltage
- 60V
- Peak Pulse Current (Ipp)
- 3.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 180W@8/20us
- Voltage - Breakdown
- 26V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.053 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation Peripherals Pagers Peripherals
Key features
- 180W peak pulse power (8/20μs)
- Protects one data or power line
- Ultra low leakage: nA level
- Operating voltage: 24V
- Ultra low clamping voltage
- Complies with following standards: - IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±15kV - IEC61000-4-4 (EFT) 40A (5/50ns)
- RoHS Compliant
