NexperiaDatasheet (PDF)

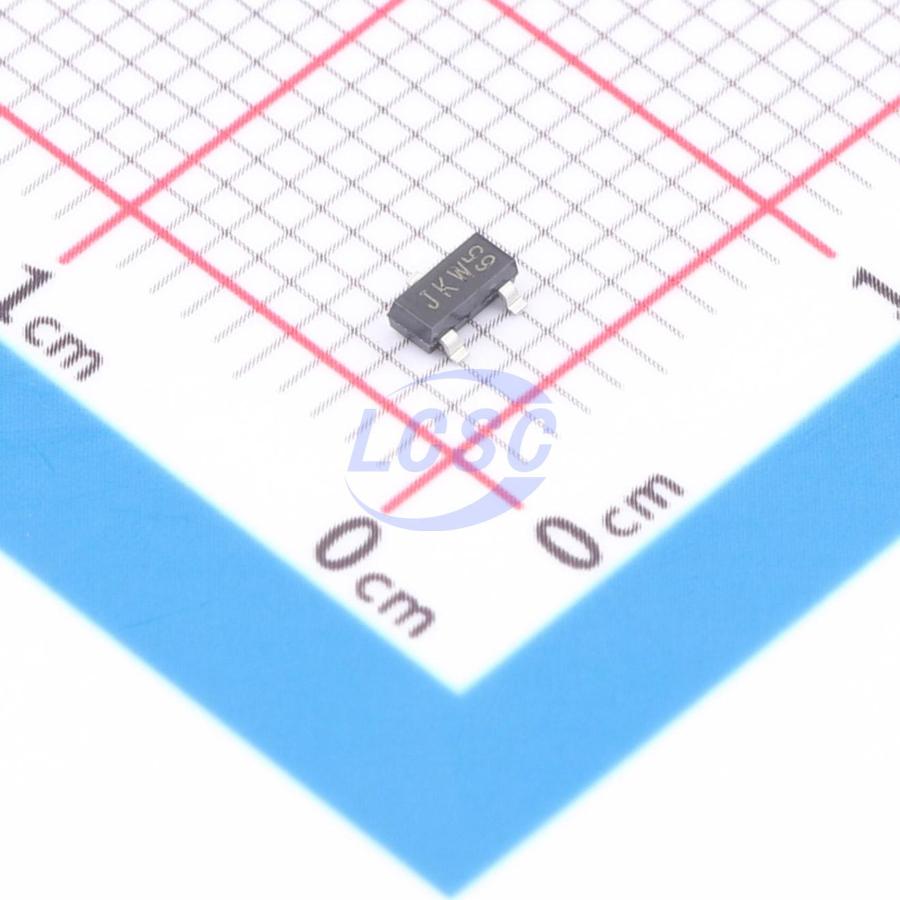

PESD2CANFD27LT-QR
31V 3.9A@8/20us 38V Bidirectional 27V SOT-23 TVS Diodes RoHS
SOT-23ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PESD2CANFD27LT-QR
- Store part #
- C20235758
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,950 in stock
#C20235758
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.09 | ₹70.45 |
| 50+ | ₹11.07 | ₹553.50 |
| 150+ | ₹9.55 | ₹1,432.50 |
| 500+ | ₹8.43 | ₹4,215.00 |
| 3,000+ | ₹7.51 | ₹22,530.00 |
| 6,000+ | ₹7.06 | ₹42,360.00 |
5 × ₹14.09
₹70.45
excl. GST
₹83.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD2CANFD27LT-QR
₹70.45 for 5 + GST
Specifications
- Clamping Voltage
- 31V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 3.9A@8/20us
- Voltage - Breakdown
- 38V
- Number of Channels
- 2
- type
- ESD
- Reverse Leakage Current (Ir)
- 1nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 27V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
ESD protection device in a small SOT23 (TO-236AB) SMD plastic package, designed to protect two automotive in-vehicle network bus lines from damage caused by ESD and other transient phenomena.
Applications
- ESD protection for in-vehicle network lines in automotive environments
- CAN-FD
- CAN
- FlexRay
- SENT
Key features
- Reverse standoff voltage: VRWM = 27 V
- Low clamping voltage: VCL = 31 V at IPP = 1 A
- ESD protection up to 30 kV (IEC 61000-4-2)
- Ultra-low capacitance: Cd = 10 pF
- ESD protection up to 30 kV (ISO 10605; C = 150 pF; R = 330 Ω)
- High-temperature capability: Tj = 175 °C
- AEC-Q101 qualified, recommended for automotive applications
