NexperiaDatasheet (PDF)

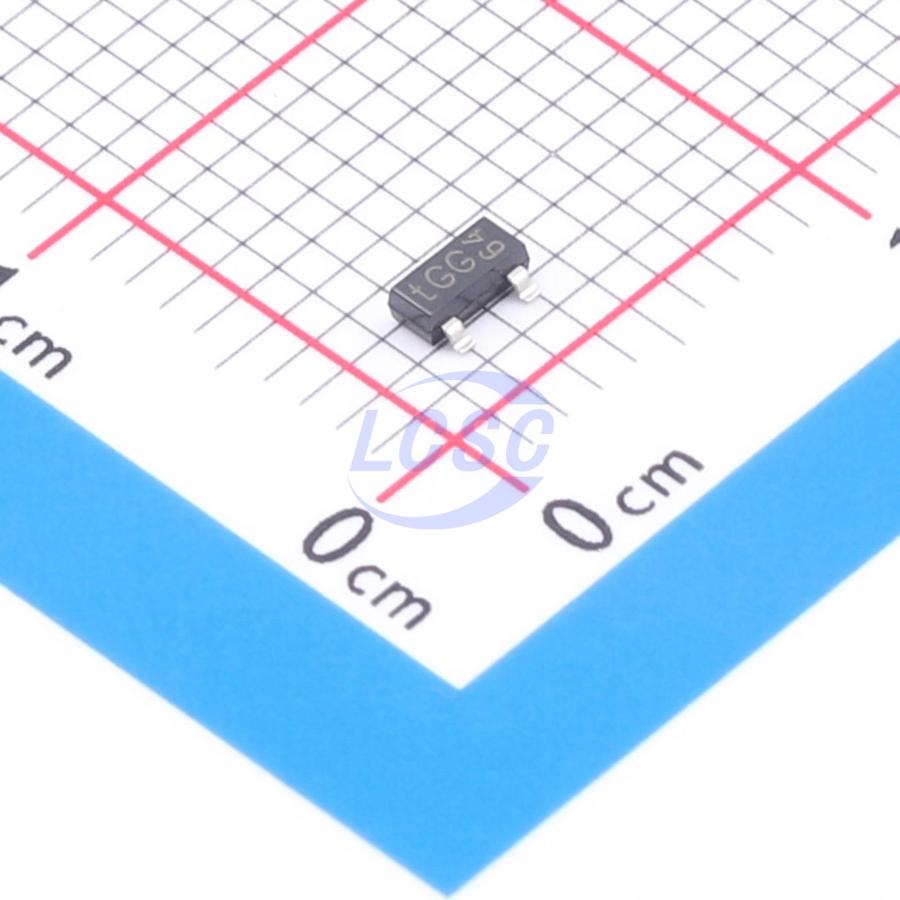

PESD2CANFD27U-TR
44VC Clamp 1A@8/20us Ipp TVS DIODE TO-236AB
TO-236ABROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PESD2CANFD27U-TR
- Store part #
- C3704425
- Package / case
- TO-236AB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,360 in stock
#C3704425
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.36 | ₹101.80 |
| 50+ | ₹15.90 | ₹795.00 |
| 150+ | ₹14.00 | ₹2,100.00 |
| 500+ | ₹11.60 | ₹5,800.00 |
| 3,000+ | ₹10.54 | ₹31,620.00 |
| 6,000+ | ₹9.91 | ₹59,460.00 |
5 × ₹20.36
₹101.80
excl. GST
₹120.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD2CANFD27U-TR
₹101.80 for 5 + GST
Specifications
- Clamping Voltage
- 44V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 1A@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 28V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 27V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
ESD protection device in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package designed to protect two automotive In-vehicle network bus lines from the damage caused by ElectroStatic discharge (ESD) and other transients.
Applications
- ESD protection for In-vehicle network lines in automotive environments
- CAN - FD
- CAN
- FlexRay
- SENT
Key features
- Reverse stand-off voltage: VRWM = 27 V
- Low clamping voltage: VCL = 34 V at IPP = 1 A
- ESD protection up to 15 kV (IEC 61000 - 4 - 2)
- Ultra low capacitance: Cd = 4.0 pF
- ESD protection up to 15 kV (ISO 10605; C = 150 pF; R = 330 Ω)
- High temperature capability: Tj = 175 °C
- AEC - Q101 qualified
