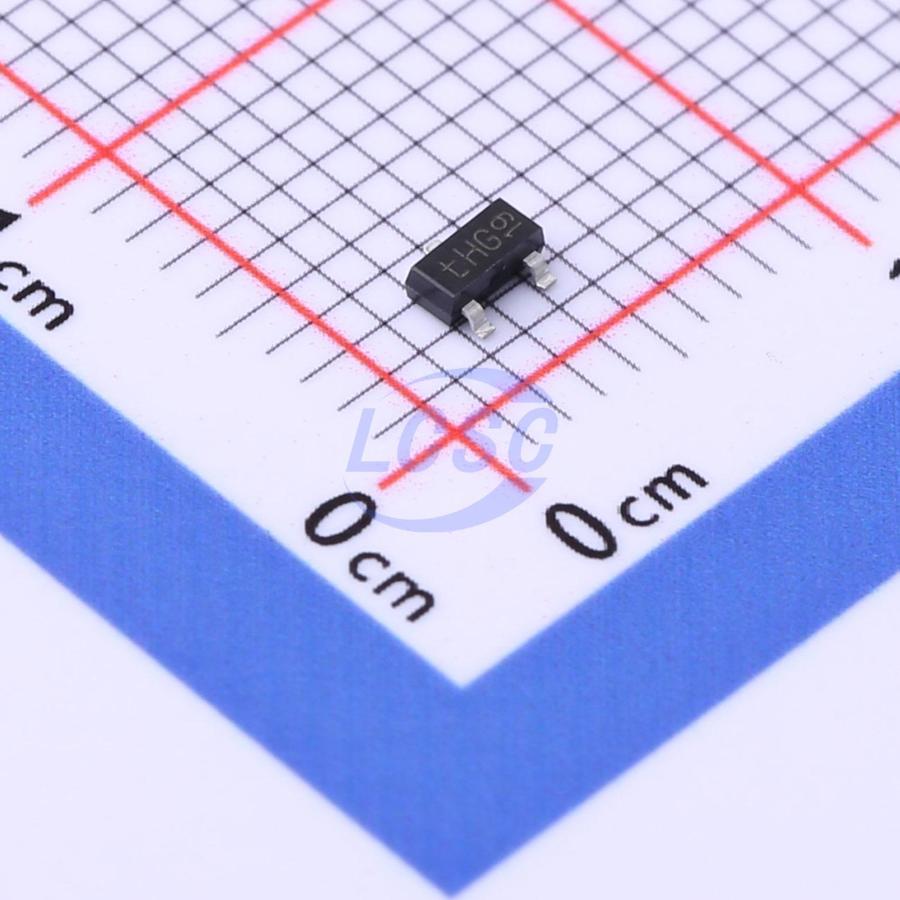

NexperiaDatasheet (PDF)
PESD2ETH100-TR
3.2A@8/20us Bidirectional 24V SOT-23 TVS Diodes RoHS
SOT-23ROHS3 CompliantActive
ESD DIODE 24VWM SOT-23
- Manufacturer
- Nexperia
- Manufacturer part #
- PESD2ETH100-TR
- Store part #
- C2930530
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,305 in stock
#C2930530
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.79 | ₹208.95 |
| 50+ | ₹32.24 | ₹1,612.00 |
| 150+ | ₹28.14 | ₹4,221.00 |
| 500+ | ₹23.03 | ₹11,515.00 |
| 3,000+ | ₹20.76 | ₹62,280.00 |
| 6,000+ | ₹19.40 | ₹1,16,400.00 |
5 × ₹41.79
₹208.95
excl. GST
₹246.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD2ETH100-TR
₹208.95 for 5 + GST
Specifications
- Peak Pulse Current (Ipp)
- 3.2A@8/20us
- Number of Channels
- 2
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 1nA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.025 g
Overview
Fully OPEN Alliance 100BASE-T1 compliant Electrostatic discharge (ESD) protection device in a small SOT23 surface-mounted plastic package designed to protect two automotive in-vehicle network bus lines from the damage caused by ESD and other transients.
Applications
- ESD protection for in-vehicle network lines In-automotive environments
- OPEN Alliance 100BASE-T1 Ethernet Low-Voltage Differential Signaling (LVDS) automotive
Key features
- Fully OPEN Alliance 100BASE-T1 compliant
- High trigger voltage: Vt1 = 100 V min.
- Low capacitance: Cd < 3 pF
- ESD protection up to 30 kV (IEC 61000-4-2)
- 1000 contact discharges (OPEN Alliance specification) with 30 kV (IEC 61000-4-2) AEC-Q101 qualified / automotive grade
