NexperiaDatasheet (PDF)

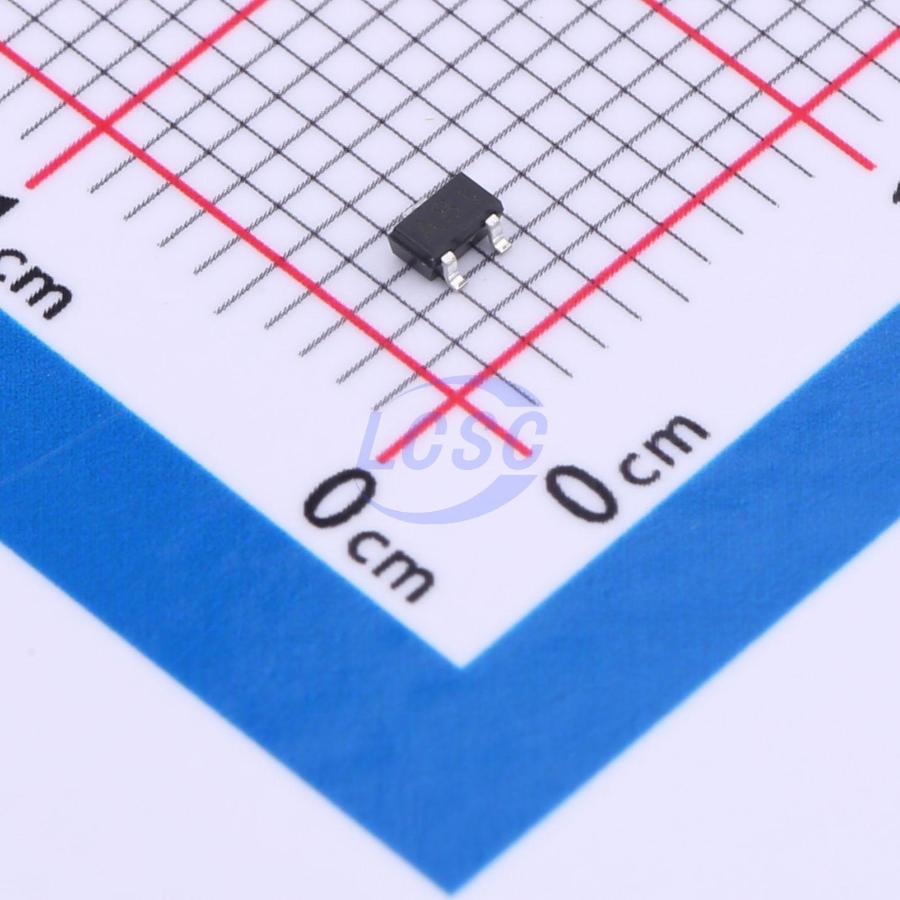

PESD2IVN24-UX
42VC Clamp 3.5A@8/20us Ipp ESD DIODE SOT-323
SOT-323ROHS3 CompliantActive
ESD DIODE 24VWM 42VC SOT-323
- Manufacturer
- Nexperia
- Manufacturer part #
- PESD2IVN24-UX
- Store part #
- C552496
- Package / case
- SOT-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,080 in stock
#C552496
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.55 | ₹102.75 |
| 50+ | ₹16.05 | ₹802.50 |
| 150+ | ₹14.13 | ₹2,119.50 |
| 500+ | ₹11.72 | ₹5,860.00 |
| 3,000+ | ₹10.65 | ₹31,950.00 |
| 6,000+ | ₹10.00 | ₹60,000.00 |
5 × ₹20.55
₹102.75
excl. GST
₹121.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD2IVN24-UX
₹102.75 for 5 + GST
Specifications
- Clamping Voltage
- 42V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 3.5A@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 25.5V
- type
- ESD
- Reverse Leakage Current (Ir)
- 1nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.023 g
Overview
ESD protection device in a small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package designed to protect two automotive In-vehicle network bus lines from the damage caused by ElectroStatic discharge (ESD) and other transients
Applications
- ESD protection for In - vehicle network lines in automotive enviroments
- CAN
- LIN
- FlexRay
- SENT
Key features
- Reverse stand-off voltage: VRWM = 24 V
- Low clamping voltage: VCL = 33 V at lPP = 3.5 A
- ESD protection up to 30 kV (IEC 61000 - 4 - 2)
- ESD protection up to 30 kV (ISO 10605: C = 330 pF, R = 330 Ω)
- ISO 7637 - 3: Pulse a: VS = -150 V / Pulse b: VS = +100 V
- Ultra low leakage current: lRM < τ nA
- Qualified according to AEC - Q101 / Automotive grade
