NexperiaDatasheet (PDF)

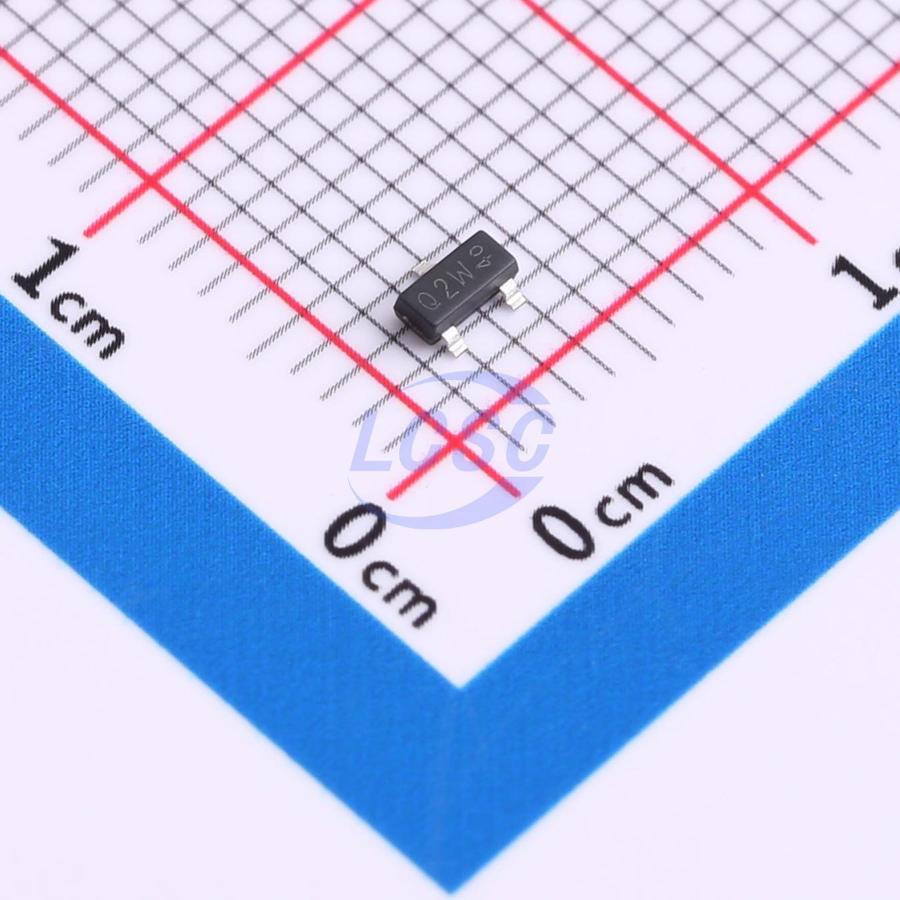

PESD2USB3UVT-QR
2.6VC Clamp 8A Ipp ESD DIODE SOT-23
SOT-23ROHS3 CompliantActive
ESD DIODE 3.3VWM 2.6VC SOT-23
- Manufacturer
- Nexperia
- Manufacturer part #
- PESD2USB3UVT-QR
- Store part #
- C20235770
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,980 in stock
#C20235770
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.17 | ₹220.85 |
| 50+ | ₹34.50 | ₹1,725.00 |
| 150+ | ₹30.36 | ₹4,554.00 |
| 500+ | ₹25.19 | ₹12,595.00 |
| 3,000+ | ₹22.89 | ₹68,670.00 |
| 6,000+ | ₹21.50 | ₹1,29,000.00 |
5 × ₹44.17
₹220.85
excl. GST
₹260.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD2USB3UVT-QR
₹220.85 for 5 + GST
Specifications
- Clamping Voltage
- 2.6V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 8A
- Number of Channels
- 2
- Voltage - Breakdown
- 8V
- type
- ESD
- Reverse Leakage Current (Ir)
- 1nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
Automotive ESD protection device in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package designed to protect two automotive In-vehicle network bus lines from the damage caused by ElectroStatic discharge (ESD) and other transients. This product protects especially multimedia applications such as USB, HDMI and others.
Applications
- ESD protection for In-vehicle network lines in automotive environments
- Infotainment applications USB2.0, HDMI, DisplayPort, eSATA and LVDS
- Automotive A/V monitors, display and cameras
- SerDes: GMSL, FPD-Link, LVDS
Key features
- Reverse stand-off voltage: VRWM = 3.3 V
- Low clamping voltage: VCL = 2.6V at IPP = 8 A
- ESD protection up to 18 kV (IEC 61000-4-2)
- Ultra low capacitance: Cd = 0.83 pF
- ESD protection up to 18 kV (ISO 10605; C = 150 pF; R = 330 Ω)
- High temperature capability: Tj = 175 °C
- Qualified according to AEC-Q101 / Automotive grade
