NexperiaDatasheet (PDF)

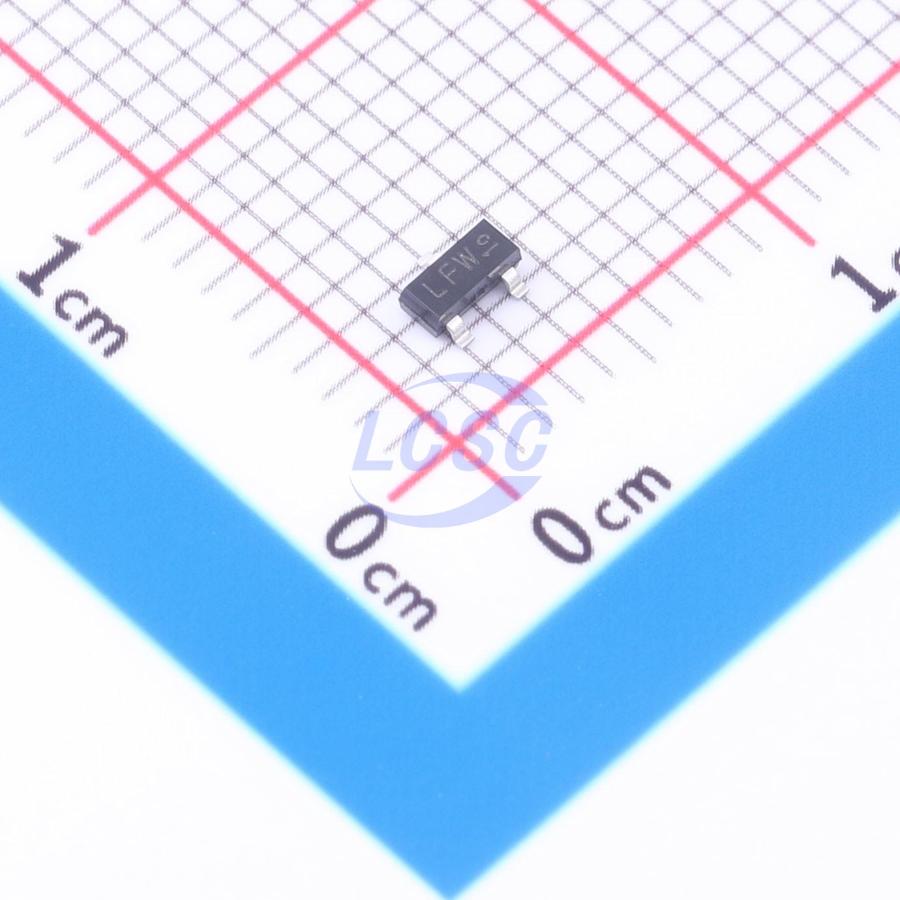

PESD36VS2UT
60V 40V 36V SOT23 TVS Diodes
SOT23RoHSActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PESD36VS2UT
- Store part #
- C3706373
- Package / case
- SOT23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,480 in stock
#C3706373
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.05 | ₹70.50 |
| 100+ | ₹5.54 | ₹554.00 |
| 300+ | ₹4.78 | ₹1,434.00 |
| 3,000+ | ₹4.22 | ₹12,660.00 |
| 6,000+ | ₹3.76 | ₹22,560.00 |
| 9,000+ | ₹3.53 | ₹31,770.00 |
10 × ₹7.05
₹70.50
excl. GST
₹83.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD36VS2UT
₹70.50 for 10 + GST
Specifications
- Clamping Voltage
- 60V
- Voltage - Breakdown
- 40V
- type
- TVS
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
Low capacitance unidirectional double ElectroStatic Discharge (ESD) protection diode in a SOT23 (TO-236AB) small Surface-Mounted Device (SMD) plastic package designed to protect up to two signal lines from the damage caused by ESD and other transients.
Applications
- Computers and peripherals
- Audio and video equipment
- Cellular handsets and accessories
- SIM card protection
- Portable electronics
- Communication systems 10/100 Mbit/s Ethernet
Key features
- Unidirectional ESD protection of two lines
- Low diode capacitance: Cd = 17 pF
- Max. peak pulse power: PP P = 160 W
- Low clamping voltage: VCL = 55 V
- Ultra low leakage current: IR M ≤ 1 uA
- ESD protection up to 30 kV IEC 61000 - 4 - 2; level 4 (ESD)
- IEC 61000 - 4 - 5 (surge); lP P = 2.5 A
