NexperiaDatasheet (PDF)

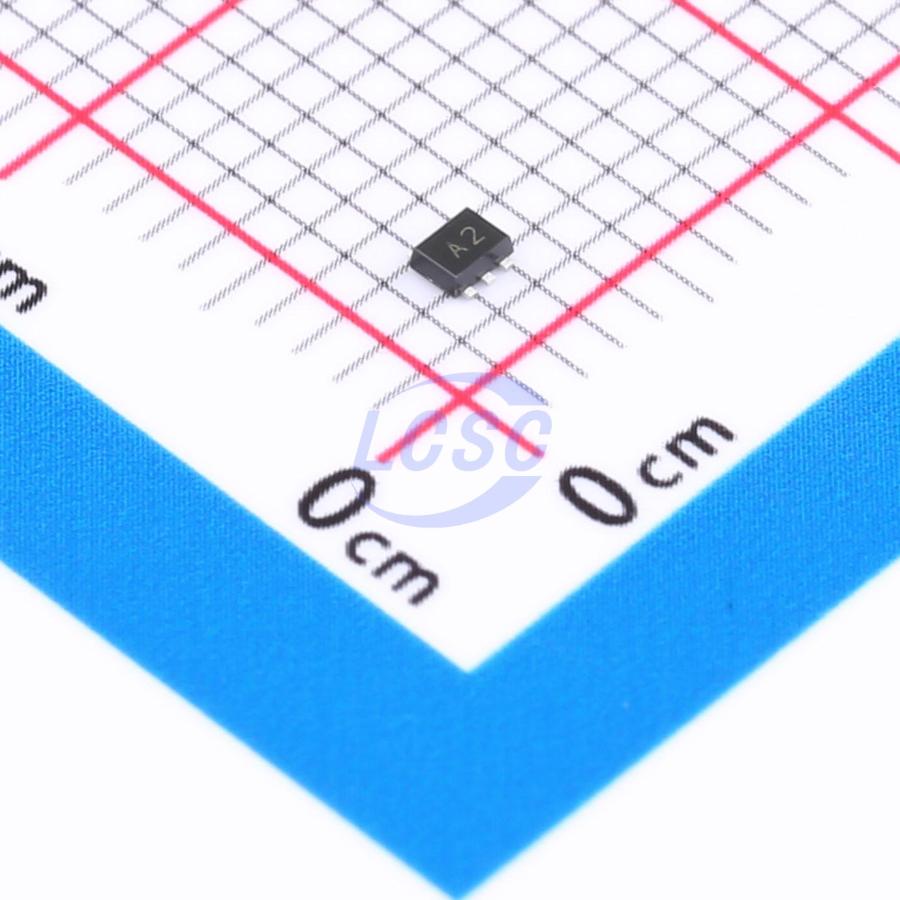

PESD3V3L4UW,115
12VC Clamp 3A@8/20us Ipp ESD DIODE SOT-665-5
SOT-665-5ROHS3 CompliantActive
ESD DIODE 3.3VWM 12VC SOT-665-5
- Manufacturer
- Nexperia
- Manufacturer part #
- PESD3V3L4UW,115
- Store part #
- C552518
- Package / case
- SOT-665-5
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,775 in stock
#C552518
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.60 | ₹208.00 |
| 50+ | ₹31.08 | ₹1,554.00 |
| 150+ | ₹26.57 | ₹3,985.50 |
| 500+ | ₹20.94 | ₹10,470.00 |
| 2,500+ | ₹18.44 | ₹46,100.00 |
| 4,000+ | ₹16.95 | ₹67,800.00 |
5 × ₹41.60
₹208.00
excl. GST
₹245.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
PESD3V3L4UW,115
₹208.00 for 5 + GST
Specifications
- Clamping Voltage
- 12V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 3A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 30W@8/20us
- Voltage - Breakdown
- 5.6V
- Number of Channels
- Four channels
- type
- ESD
- Reverse Leakage Current (Ir)
- 300nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.051 g
Overview
Low capacitance unidirectional quadruple ElectroStatic Discharge (ESD) protection diode arrays in small Surface-Mounted Device (SMD) plastic packages designed to protect up to four signal lines from the damage caused by ESD and other transients.
Applications
- Computers and peripherals
- Audio and video equipment
- Cellular handsets and accessories
- Communication systems
- Portable electronics
- Subscriber Identity Module (SIM) card protection
Key features
- ESD protection for up to four lines
- Low diode capacitance
- Maximum peak pulse power: Ppp= 30W
- Low clamping voltage: VCL= 12V
- Ultra-low leakage current: IRM= 5nA
- ESD protection up to 20 kV
- IEC 61000-4-2; Level 4 (ESD)
- IEC 61000-4-5 (Surge); IPP= 2.5A
