NexperiaDatasheet (PDF)

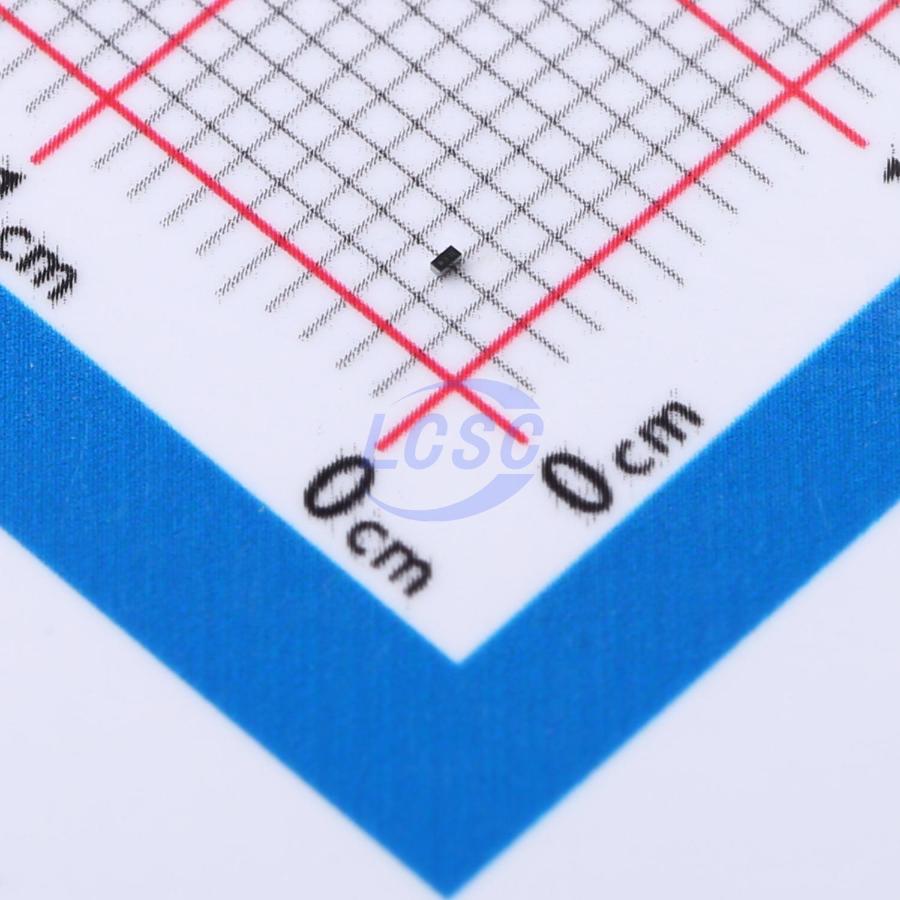

PESD3V3S1BSFYL
6VC Clamp 12A@8/20us Ipp ESD DIODE DSN0603-2
DSN0603-2ROHS3 CompliantActive
ESD DIODE 3.3VWM 6VC DSN0603-2
- Manufacturer
- Nexperia
- Manufacturer part #
- PESD3V3S1BSFYL
- Store part #
- C3713366
- Package / case
- DSN0603-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,190 in stock
#C3713366
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.25 | ₹81.25 |
| 50+ | ₹12.77 | ₹638.50 |
| 150+ | ₹11.02 | ₹1,653.00 |
| 500+ | ₹9.71 | ₹4,855.00 |
| 2,500+ | ₹8.67 | ₹21,675.00 |
| 5,000+ | ₹8.15 | ₹40,750.00 |
5 × ₹16.25
₹81.25
excl. GST
₹95.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 9,000 per reel
PESD3V3S1BSFYL
₹81.25 for 5 + GST
Specifications
- Clamping Voltage
- 6V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 12A@8/20us
- type
- ESD
- Reverse Leakage Current (Ir)
- 1nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 9,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.096 g
Overview
Ultra low clamping bidirectional ElectroStatic Discharge (ESD) protection diode designed to protect one signal line from the damage caused by ESD and other transients. The device is housed in a leadless ultra small DSN0603-2 (SOD962) Surface-Mounted Device (SMD) package.
Applications
- ESD surge protection for very sensitive interface lines, generic interface lines in portable electronics, communication, consumer and computing devices.
Key features
- Bidirectional ESD protection of one line
- Ultra small leadless package with a height of 0.3 mm
- IEC 61000-4-5 (surge), lPPM = 12 A
- Very low clamping voltage: VCL = 5.8V typical at 16 A for TLP pulse
- Ultra low leakage current: IRM = 1 nA
- ESD protection up to 30 kV
