NexperiaDatasheet (PDF)

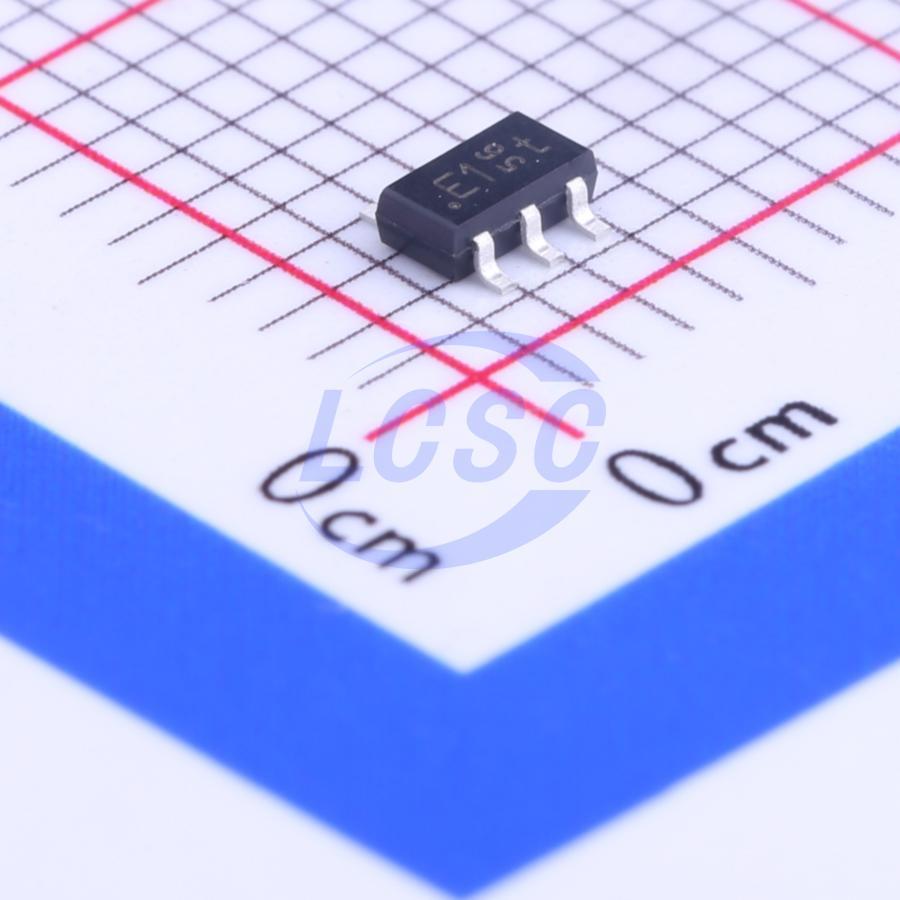

PESD3V3S5UD,125
12VC Clamp 20A@8/20us Ipp ESD DIODE SC-74
SC-74ROHS3 CompliantActive
ESD DIODE 3.3VWM 12VC SC-74
- Manufacturer
- Nexperia
- Manufacturer part #
- PESD3V3S5UD,125
- Store part #
- C122563
- Package / case
- SC-74
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
75 in stock
#C122563
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.56 | ₹247.80 |
| 50+ | ₹39.02 | ₹1,951.00 |
| 150+ | ₹34.49 | ₹5,173.50 |
| 500+ | ₹28.85 | ₹14,425.00 |
| 3,000+ | ₹26.34 | ₹79,020.00 |
| 6,000+ | ₹24.83 | ₹1,48,980.00 |
5 × ₹49.56
₹247.80
excl. GST
₹292.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD3V3S5UD,125
₹247.80 for 5 + GST
Specifications
- Clamping Voltage
- 12V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 20A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 200W@8/20us
- Voltage - Breakdown
- 5.6V
- Number of Channels
- 5
- type
- ESD
- Reverse Leakage Current (Ir)
- 800nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
