TECH PUBLIC

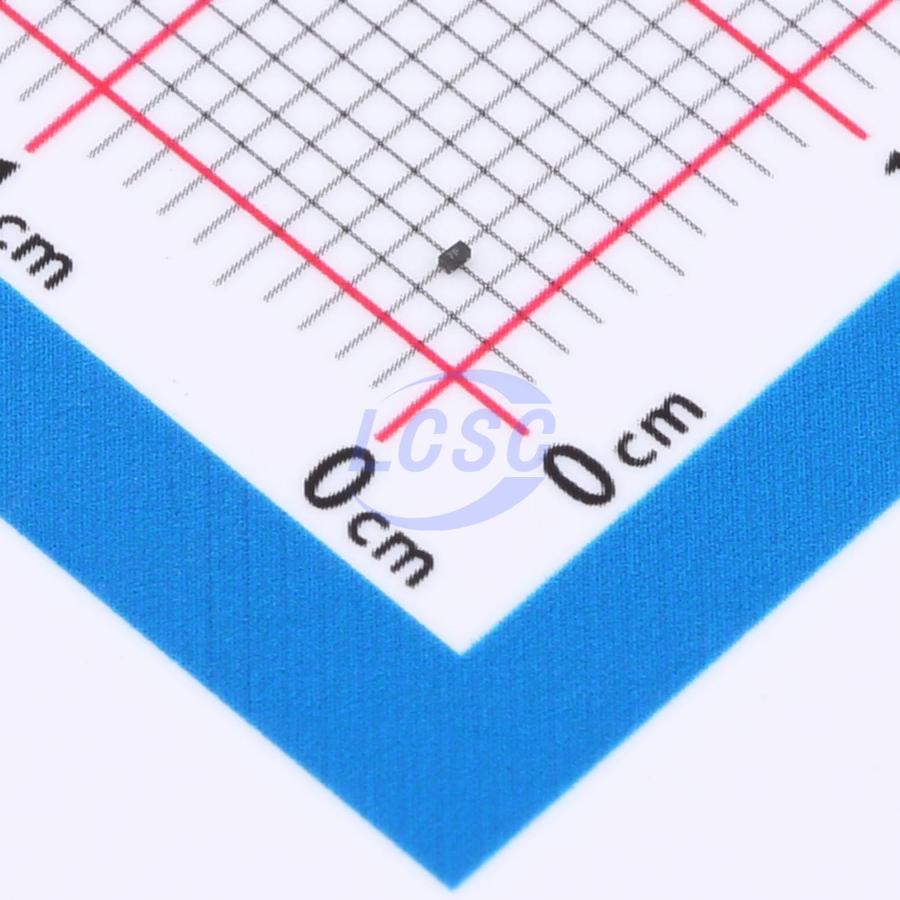

PESD4V0Z2BCDFZ-TP

6VC 8VC Clamp 5A@8/20us Ipp ESD DIODE DFN0603-3L

DFN0603-3LRoHSActive

ESD DIODE 6VC 8VC DFN0603-3L

Manufacturer: TECH PUBLIC
Manufacturer part #: PESD4V0Z2BCDFZ-TP
Store part #: C48639019
Package / case: DFN0603-3L
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,080 in stock

#C48639019

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
10+	₹6.84	₹68.40
100+	₹5.38	₹538.00
300+	₹4.66	₹1,398.00
1,000+	₹4.10	₹4,100.00
5,000+	₹3.66	₹18,300.00
10,000+	₹3.44	₹34,400.00

Quantity (min 10, multiples of 10)

10 × ₹6.84

₹68.40

excl. GST

₹80.71 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 10,000 per reel

PESD4V0Z2BCDFZ-TP

₹68.40 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 6V;8V
Peak Pulse Current (Ipp): 5A@8/20us
Peak Pulse Power Dissipation (Ppp): 50W@8/20us
Voltage - Breakdown: 7.4V
type: ESD
Reverse Leakage Current (Ir): 200nA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 10,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.018 g

Overview

Applications

USB 2.0
USB 3.0
USB 3.1

Key features

Low operating voltage: ±4V
Low clamping voltage
Ultra-low capacitance: typical 0.2pF
Ultra-low leakage current: nA level
Compliant with the following standards:
IEC 61000-4-2 (ESD) immunity test
Air discharge: ±20kV
Contact discharge: ±20kV
IEC61000-4-5 (Lightning Surge) 5A (8/20μs)
Lead-free device
Typical response time < 1 ns
Package: DFN0603-3
Terminal finish: Matte tin
Encapsulant material: "Green" molding compound
Moisture sensitivity: J-STD-020 compliant, Level 3
Terminal connections: See diagram below
