NexperiaDatasheet (PDF)

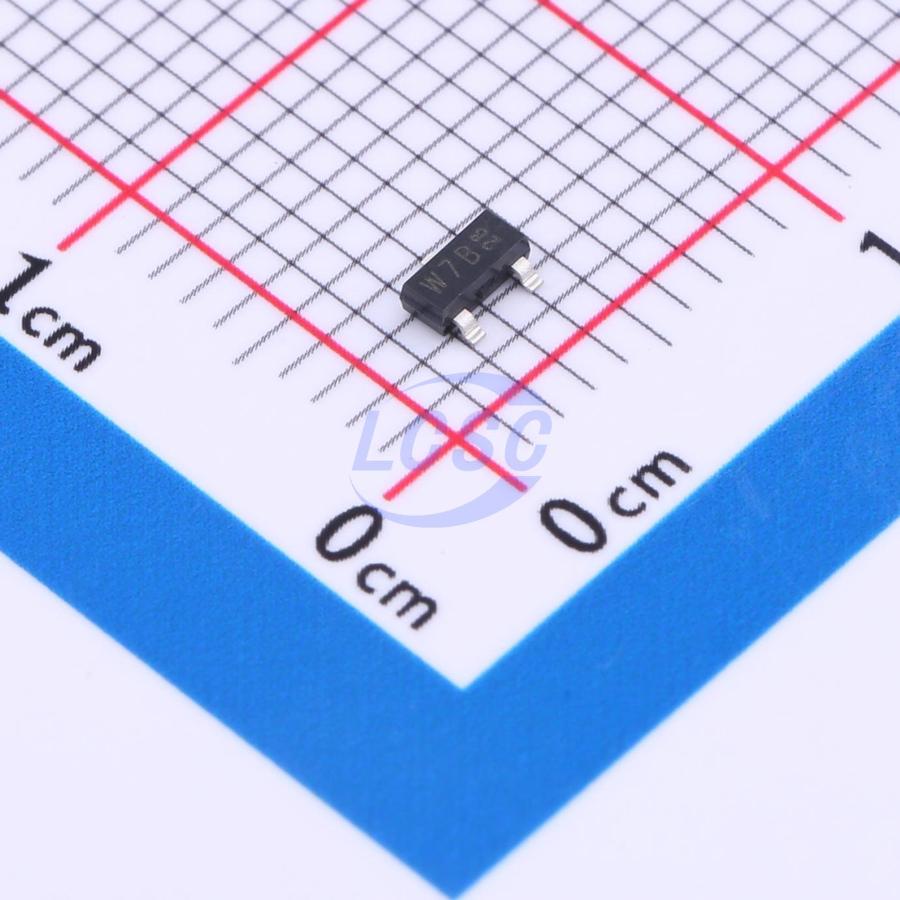

PESD5V0S2UAT,215
20VC Clamp 15A@8/20us Ipp ESD DIODE SOT-23
SOT-23ROHS3 CompliantActive
ESD DIODE 5VWM 20VC SOT-23
- Manufacturer
- Nexperia
- Manufacturer part #
- PESD5V0S2UAT,215
- Store part #
- C552572
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,555 in stock
#C552572
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.02 | ₹80.10 |
| 50+ | ₹12.58 | ₹629.00 |
| 150+ | ₹10.86 | ₹1,629.00 |
| 500+ | ₹9.58 | ₹4,790.00 |
| 3,000+ | ₹8.55 | ₹25,650.00 |
| 6,000+ | ₹8.03 | ₹48,180.00 |
5 × ₹16.02
₹80.10
excl. GST
₹94.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD5V0S2UAT,215
₹80.10 for 5 + GST
Specifications
- Clamping Voltage
- 20V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 15A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 260W
- Number of Channels
- 2
- Voltage - Breakdown
- 6.4V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.025 g
Overview
Unidirectional double ESD protection diodes in common cathode configuration in the SOT23 plastic package. Designed to protect up to two transmission or data lines against damage from ElectroStatic Discharge (ESD) and other transients.
Applications
- Computers and peripherals
- Communication systems
- Audio and video equipment
- Data lines
- CAN bus protection
Key features
- Unidirectional ESD protection of up to two lines
- Common-cathode configuration
- Max. peak pulse power: Ppp = 330 W at Δfp = 8/20 μs
- Low clamping voltage: V(CL)R = 20 V at Ipp = 18 A
- Ultra-low reverse leakage current: |RM < 700 nA
- ESD protection > 30 kV
- IEC 61000-4-2; level 4 (ESD)
- IEC 61000-4-5 (surge); Ipp = 18 A at Δfp = 8/20 μs
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PESD5V2S2UT#C37331488GOODWORK · SOT-23 | GOODWORK | SOT-23 | 6,460 | ₹3.86 · 6,460 in stock | View |
 | D5V0H2U3SO-7#C19949196DIODES · SOT-23-3 | DIODES | SOT-23-3 | 100 | ₹24.30 · 100 in stock | View |
 | SPESD5V2S2UT#C42400700JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 460 | ₹4.34 · 460 in stock | View |
 | PESD5V2S2UT,215#C18441Nexperia · SOT-23 | Nexperia | SOT-23 | 1,50,575 | ₹13.87 · 1,50,575 in stock | View |
 | H5VHT2U#C20615823R+O · SOT-23 | R+O | SOT-23 | 20,240 | ₹4.62 · 20,240 in stock | View |
