NexperiaDatasheet (PDF)

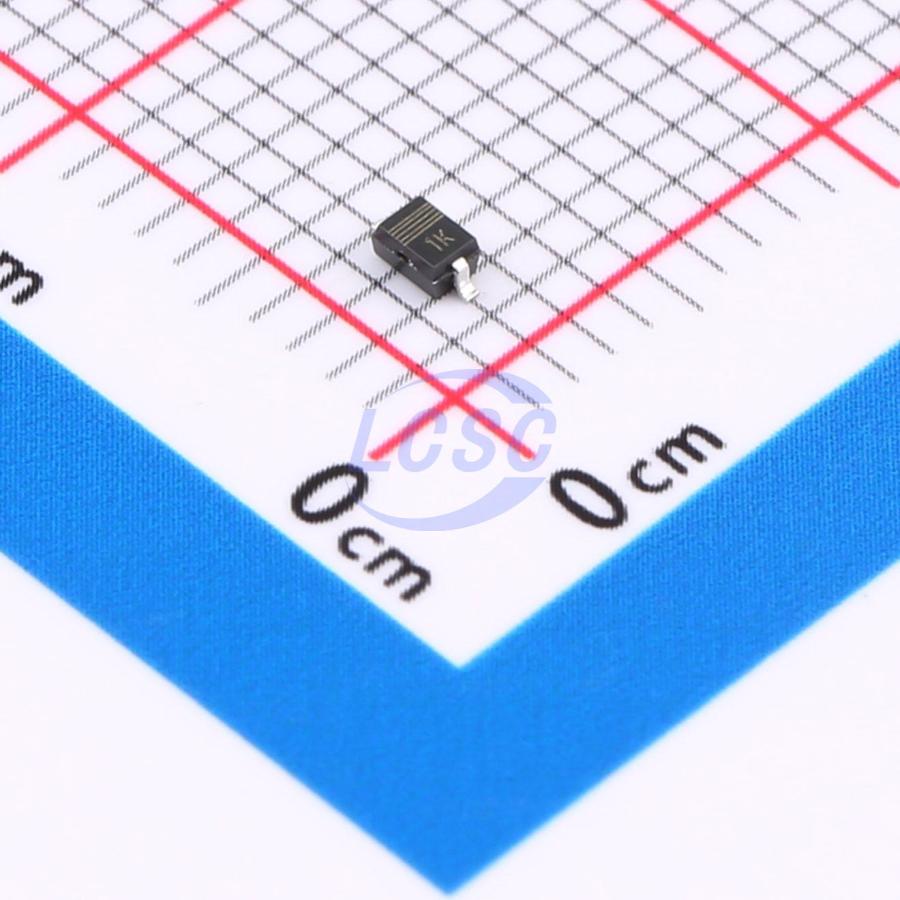

PESD5V0V1BA-QX
12.5V 4.8A@8/20us 45W@8/20us 6.8V Bidirectional 5V SOD-323 TVS Diodes RoHS
SOD-323ROHS3 CompliantActive
Very low capacitance bidirectional ESD protection diode
- Manufacturer
- Nexperia
- Manufacturer part #
- PESD5V0V1BA-QX
- Store part #
- C7508804
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,005 in stock
#C7508804
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.78 | ₹63.90 |
| 50+ | ₹9.87 | ₹493.50 |
| 150+ | ₹8.41 | ₹1,261.50 |
| 500+ | ₹7.32 | ₹3,660.00 |
| 3,000+ | ₹6.44 | ₹19,320.00 |
| 6,000+ | ₹6.01 | ₹36,060.00 |
5 × ₹12.78
₹63.90
excl. GST
₹75.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD5V0V1BA-QX
₹63.90 for 5 + GST
Specifications
- Clamping Voltage
- 12.5V
- Peak Pulse Current (Ipp)
- 4.8A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 45W@8/20us
- Voltage - Breakdown
- 6.8V
- Reverse Leakage Current (Ir)
- 1nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.021 g
