TECH PUBLICDatasheet (PDF)

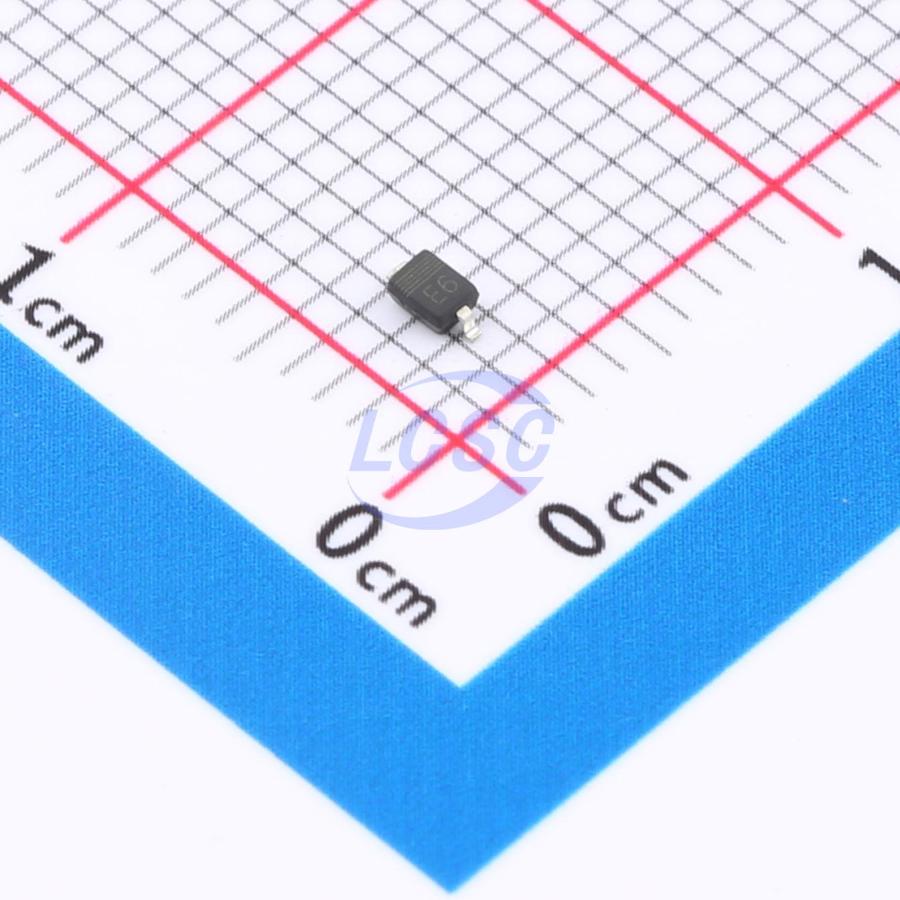

PESD5V0V1BA-TP
11VC Clamp 8.5A@8/20us Ipp ESD DIODE SOD-323
SOD-323RoHSActive
ESD DIODE 5VWM 11VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PESD5V0V1BA-TP
- Store part #
- C47117553
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,760 in stock
#C47117553
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.18 | ₹63.60 |
| 200+ | ₹2.53 | ₹506.00 |
| 600+ | ₹2.17 | ₹1,302.00 |
| 3,000+ | ₹1.94 | ₹5,820.00 |
| 9,000+ | ₹1.59 | ₹14,310.00 |
| 21,000+ | ₹1.49 | ₹31,290.00 |
20 × ₹3.18
₹63.60
excl. GST
₹75.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD5V0V1BA-TP
₹63.60 for 20 + GST
Specifications
- Clamping Voltage
- 11V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 8.5A@8/20us
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.025 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Peripherals
- Pagers Peripherals
- Desktop and Servers
Key features
- Protects one data or power line
- Ultra low leakage: nA level
- Operating voltage: 5V
- Ultra low clamping voltage
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- RoHS Compliant
