NexperiaDatasheet (PDF)

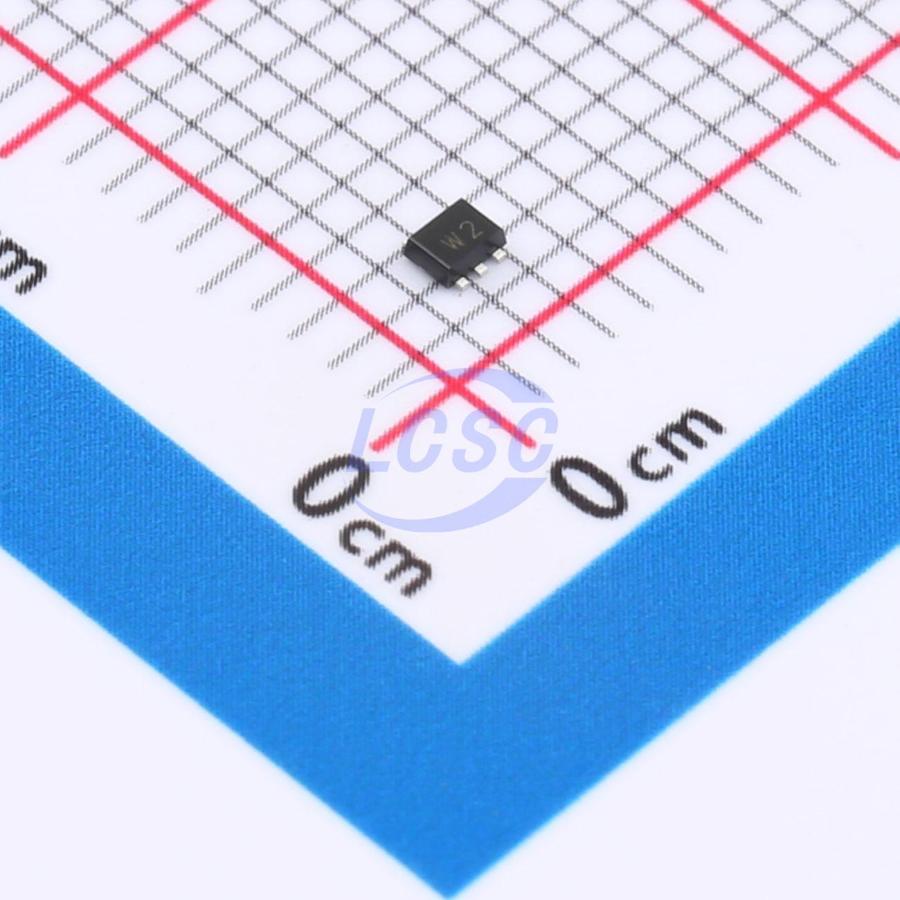

PESD5V0V4UW,115
13VC Clamp 1.5A@8/20us Ipp ESD DIODE SOT-665-5
SOT-665-5ROHS3 CompliantActive
ESD DIODE 5VWM 13VC SOT-665-5
- Manufacturer
- Nexperia
- Manufacturer part #
- PESD5V0V4UW,115
- Store part #
- C552588
- Package / case
- SOT-665-5
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,225 in stock
#C552588
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.45 | ₹107.25 |
| 50+ | ₹18.92 | ₹946.00 |
| 150+ | ₹17.83 | ₹2,674.50 |
| 500+ | ₹16.48 | ₹8,240.00 |
| 2,500+ | ₹15.88 | ₹39,700.00 |
| 4,000+ | ₹15.52 | ₹62,080.00 |
5 × ₹21.45
₹107.25
excl. GST
₹126.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
PESD5V0V4UW,115
₹107.25 for 5 + GST
Specifications
- Clamping Voltage
- 13V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 1.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 16W@8/20us
- Voltage - Breakdown
- 7.2V
- Number of Channels
- Four channels
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 25nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.018 g
Overview
Very low capacitance unidirectional quadruple ElectroStatic Discharge (ESD) protection diode arrays in small Surface-Mounted Device (SMD) plastic packages designed to protect up to four signal lines from the damage caused by ESD and other transients.
Applications
- Computers and peripherals
- Audio and video equipment
- Cellular handsets and accessories
- Communication systems
- Portable electronics
- Subscriber Identity Module (SIM) card protection
Key features
- ESD protection of up to four lines
- Very low diode capacitance
- Max. peak pulse power: P_PP = 16 W
- Low clamping voltage: V_CL = 11 V
