NexperiaDatasheet (PDF)

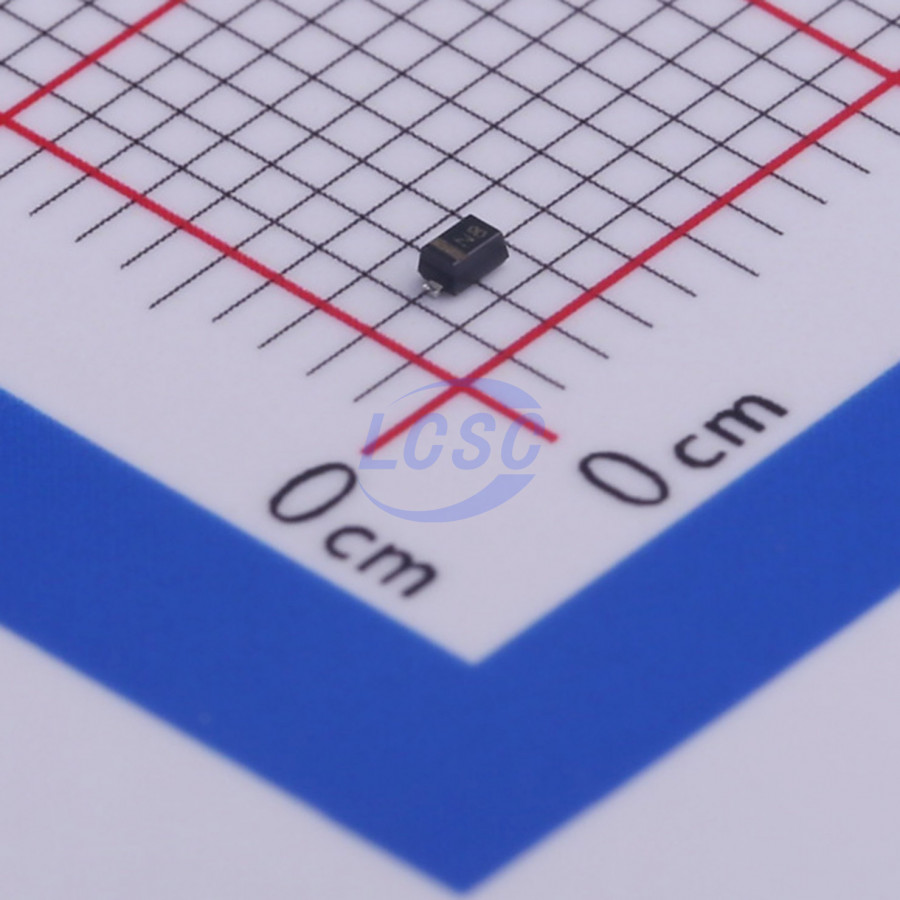

PESD5Z3.3,115
18VC Clamp 20A@8/20us Ipp ESD DIODE SC-79(SOD-523)
PopularSC-79(SOD-523)ROHS3 CompliantActive
ESD DIODE 3.3VWM 18VC SC-79(SOD-523)
- Manufacturer
- Nexperia
- Manufacturer part #
- PESD5Z3.3,115
- Store part #
- C182940
- Package / case
- SC-79(SOD-523)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
32,090 in stock
#C182940
Stock & price checked 37 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.47 | ₹64.70 |
| 100+ | ₹5.16 | ₹516.00 |
| 300+ | ₹4.51 | ₹1,353.00 |
| 3,000+ | ₹3.70 | ₹11,100.00 |
| 6,000+ | ₹3.32 | ₹19,920.00 |
| 9,000+ | ₹3.12 | ₹28,080.00 |
10 × ₹6.47
₹64.70
excl. GST
₹76.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD5Z3.3,115
₹64.70 for 10 + GST
Specifications
- Clamping Voltage
- 18V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 20A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 260W@8/20us
- Voltage - Breakdown
- 5V
- Number of Channels
- 1
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 8nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
Low capacitance unidirectional ElectroStatic Discharge (ESD) protection diode in a SOD523 (SC-79) ultra small and flat lead Surface-Mounted Device (SMD) plastic package, designed to protect one signal line from the damage caused by ESD and other transients.
Applications
- Computers and peripherals
- Audio and video equipment
- Cellular handsets and accessories
- 10/100/1000 Mbit/s Ethernet
- Communication systems
- Portable electronics
- SIM card protection
- High-speed data lines
Key features
- ESD protection of one line
- Low diode capacitance
- Max. peak pulse power: P_PPM = 260 W
- Low clamping voltage: V_CL = 8 V
- Low leakage current: |_RM = 8 nA
- ESD protection up to 30 kV (IEC 61000-4-2) IEC 61000-4-5 (surge); l_PPM = 20 A
