TECH PUBLICDatasheet (PDF)

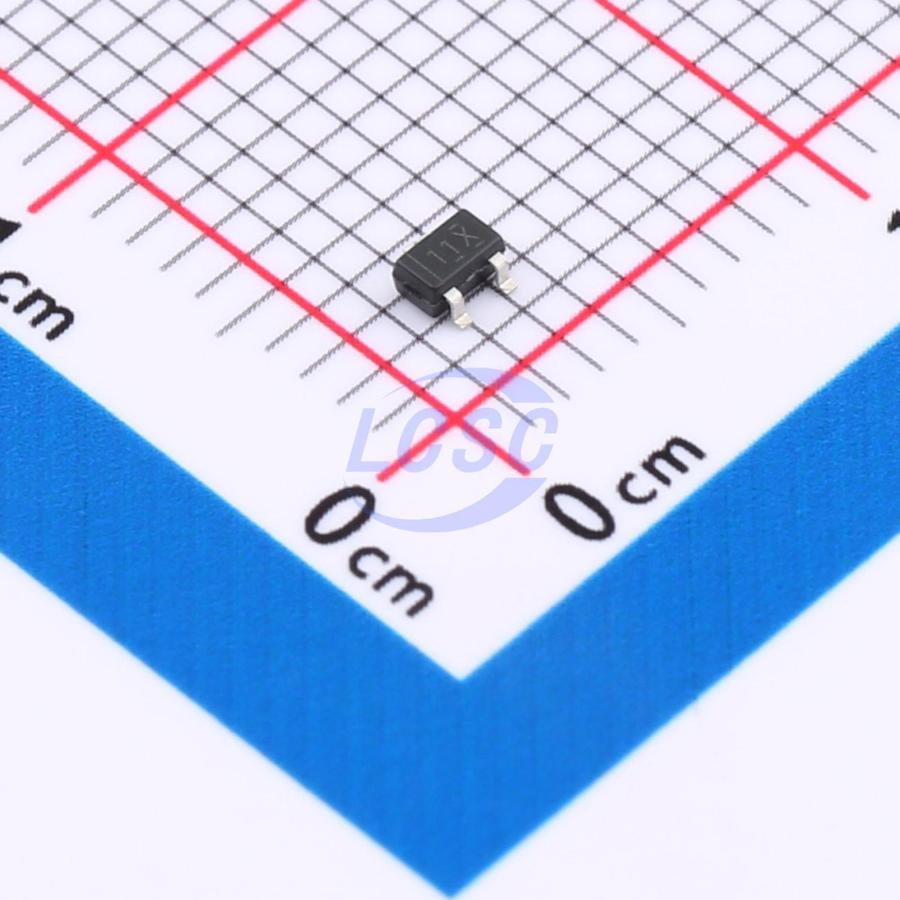

PESD6V0L2UU
14VC Clamp 4A@3/20us Ipp SOT-323
SOT-323RoHSActive
6VWM 14VC SOT-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PESD6V0L2UU
- Store part #
- C28646366
- Package / case
- SOT-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
985 in stock
#C28646366
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.11 | ₹85.55 |
| 50+ | ₹13.65 | ₹682.50 |
| 150+ | ₹11.93 | ₹1,789.50 |
| 500+ | ₹10.64 | ₹5,320.00 |
| 3,000+ | ₹9.59 | ₹28,770.00 |
| 6,000+ | ₹9.08 | ₹54,480.00 |
5 × ₹17.11
₹85.55
excl. GST
₹100.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD6V0L2UU
₹85.55 for 5 + GST
Specifications
- Clamping Voltage
- 14V
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 60W@8/20us
- Voltage - Breakdown
- 6.5V
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 6V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
Applications
- USB 2.0 and USB 3.0
- SATA and eSATA
- DVI
- Set Top Box
- Portable Electronics
Key features
- Ultra low capacitance: 0.35pF typical (IO To IO)
- Ultra low leakage: nA level
- Low operating voltage: 6V
- Low clamping voltage
- 2-pin leadless package
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±20kV
- IEC61000 - 4 - 5 (Lightning) 4A (8/20μs)
- RoHS Compliant Lead Finish: NiPdAu
