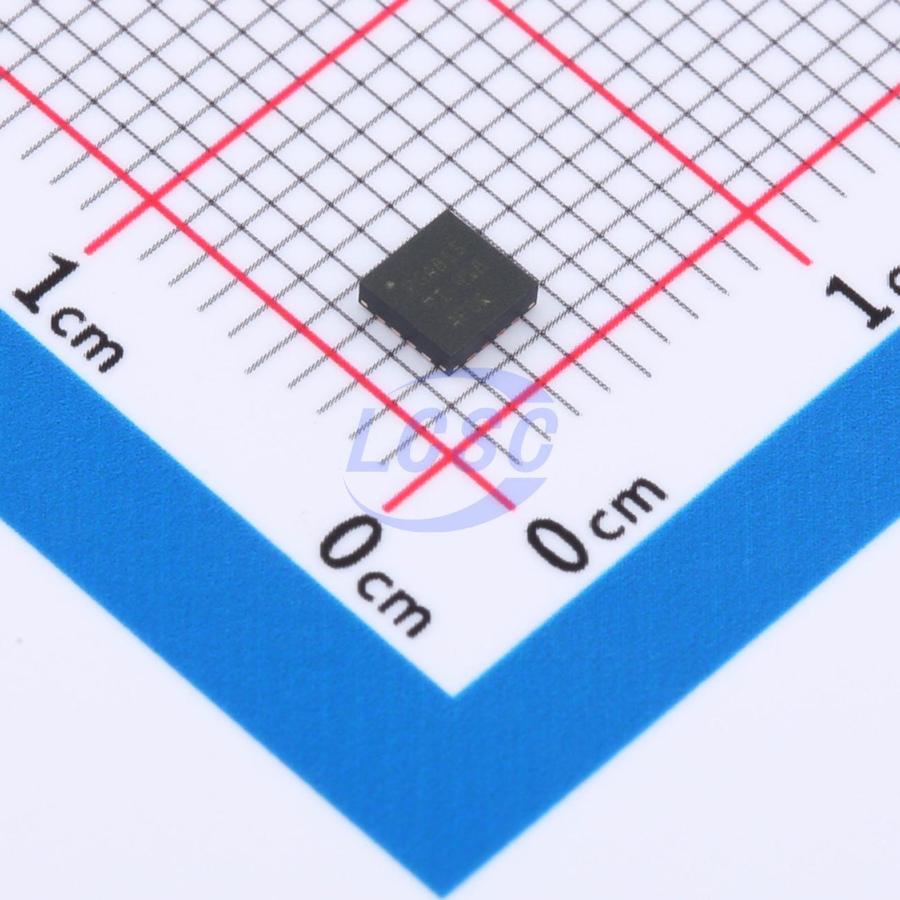

PGA855RGTR

Rail-to-rail input 70uV 500pA 1 VQFN-16-EP(3x3) Special Purpose Amplifiers RoHS

VQFN-16-EP(3x3)ROHS3 CompliantActive

Low-noise, wide-bandwidth, fully differential output programmable gain instrumentation amplifier

Manufacturer: TI
Manufacturer part #: PGA855RGTR
Store part #: C19633573
Package / case: VQFN-16-EP(3x3)
Category: Special Purpose Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,321 in stock

#C19633573

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹2,458.77	₹2,458.77
10+	₹2,341.07	₹23,410.70
30+	₹2,136.74	₹64,102.20
100+	₹1,958.68	₹1,95,868.00

Quantity (min 1)

1 × ₹2,458.77

₹2,458.77

excl. GST

₹2,901.35 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

PGA855RGTR

₹2,458.77 for 1 + GST

Specifications

Output Type: Differential
Rail to Rail: Rail-to-rail input
Quiescent Current: 3mA
Settling time: 700ns
Input Voltage Noise Density: 21.6nV/√Hz@1kHz
Dual Supply: -18V~-4V;4V~18V
Single Supply: 8V~36V
Common Mode Rejection Ratio(CMRR): 64dB
Input Offset Voltage Drift(Vos TC): 1uV/℃
Vos - Input Offset Voltage: 70uV
Ib - Input Bias Current: 500pA
Input Offset Current(Ios): 500pA
Output Current: 45mA
Features: Digitally programmable gain;Overvoltage protection;Integrated ADC driver
Number of Channels: 1
Slew Rate: 35V/us
Input Offset Current Drift (Ios TC): 10pA/℃
Power Supply Rejection Ratio (PSRR): 126dB
Operating Temperature: -40℃~+125℃

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.72 g

Overview

The PGA855 is a high-bandwidth programmable gain instrumentation amplifier with fully differential outputs. The PGA855 is equipped with eight binary gain settings, from an attenuating gain of 0.125 V/V to a maximum of 16 V/V, using three digital gain selection pins. The output common-mode voltage can be independently set using the VOCM pin. The PGA855 architecture is optimized to drive inputs of high-resolution, precision analog-to-digital converters (ADCs) with sampling rates up to 1 MSPS without the need for an additional ADC driver. The output-stage power supplies (LVSS/LVDD) are decoupled from the input stage and can be connected to power supplies of the ADC to protect the ADC or downstream device against overdrive damage. The super-beta input transistors offer an impressively low input bias current, which in turn provides a very low input current noise density of 0.3 pA/√Hz, making the PGA855 a versatile choice for virtually any sensor type. The low-noise current-feedback front-end architecture offers excellent gain flatness, even at high frequencies, making the PGA855 an excellent high-impedance sensor readout device. Integrated protection circuitry on the input pins handles overvoltages up to ±40 V beyond the powersupply voltages.

Applications

Factory automation and control
Analog input module
Data acquisition (DAQ)
Test and measurement
Semiconductor test

Key features

Eight pin-programmable binary gains: G (V/V) = 1/8, 1/4, 1/2, 1, 2, 4, 8, and 16
Low gain error drift: 1 ppm/°C (max) at G = 1 V/V
Fully differential outputs
Independent output power-supply pins to allow for ADC input overdrive protection
Output common-mode control
Faster signal processing: Wide bandwidth: 10 MHz at all gains
High slew rate: 35 V/μs
Settling time: 500 ns to 0.01%, 950 ns to 0.0015%
Input stage noise: 7.8 nV/√Hz at G = 16 V/V
Filter option to achieve better SNR
Input overvoltage protection to ±40 V beyond supplies
Input-stage supply range: Single supply: 8 V to 36 V; Dual supply: ±4 V to ±18 V
Output-stage supply range: Single supply: 4.5 V to 36 V; Dual supply: ±2.25 V to ±18 V
Specified temperature range: -40°C to +125°C
Small package: 3-mm × 3-mm VQFN
