VBsemi ElecDatasheet (PDF)

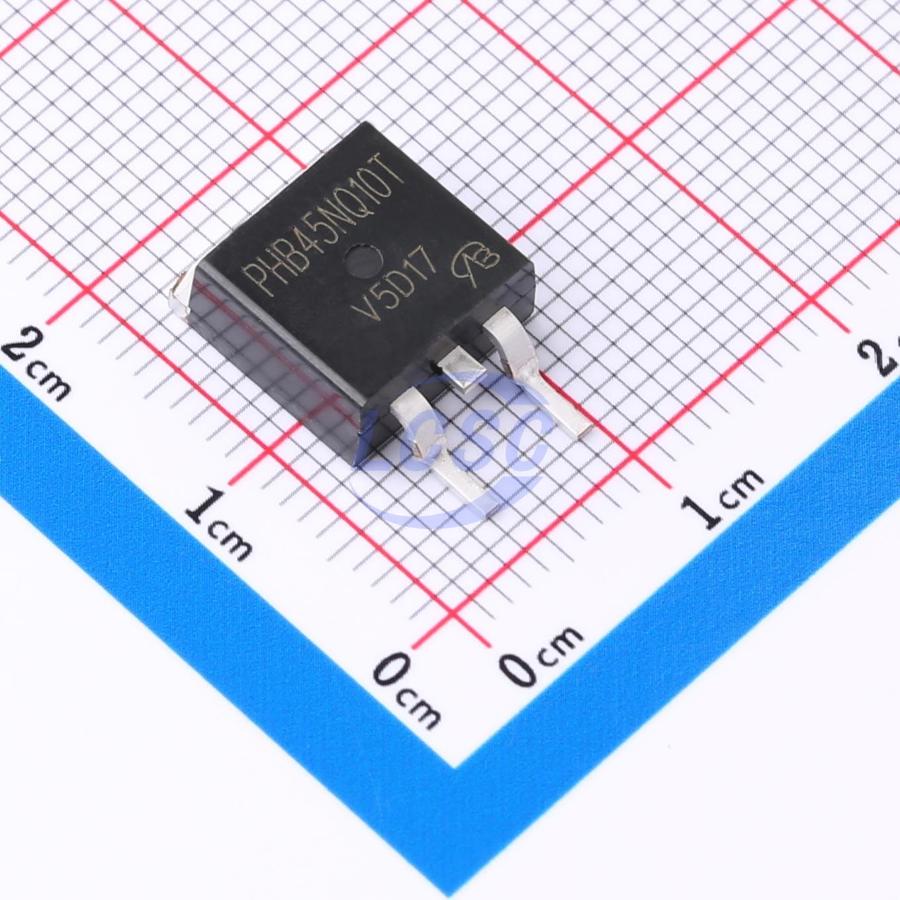

PHB45NQ10T-VB
N-Channel 100V 70A 3.1W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 100V 70A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- PHB45NQ10T-VB
- Store part #
- C47993761
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C47993761
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹164.07 | ₹164.07 |
| 10+ | ₹138.86 | ₹1,388.60 |
| 50+ | ₹124.96 | ₹6,248.00 |
| 100+ | ₹91.49 | ₹9,149.00 |
| 500+ | ₹84.54 | ₹42,270.00 |
| 1,000+ | ₹81.27 | ₹81,270.00 |
1 × ₹164.07
₹164.07
excl. GST
₹193.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
PHB45NQ10T-VB
₹164.07 for 1 + GST
Specifications
- Drain to Source Voltage
- 100V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 70A
- Output Capacitance(Coss)
- 430pF
- Ciss-Input Capacitance
- 1.3nF
- Pd - Power Dissipation
- 3.1W
- Reverse Transfer Capacitance (Crss)
- 130pF
- RDS(on)
- 20mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 70nC@10V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.5 g
Overview
Applications
- High-side switch for full-bridge converters
- DC/DC converter for LCD displays
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Surface mount
- Thin through-hole package
- Available in tape and reel packaging
- Dynamic dV/dt rating
- Operating temperature up to 150 °C
- Fast switching
- Fully avalanche rated
- Compliant with RoHS Directive 2002/95/EC
