VBsemi ElecDatasheet (PDF)

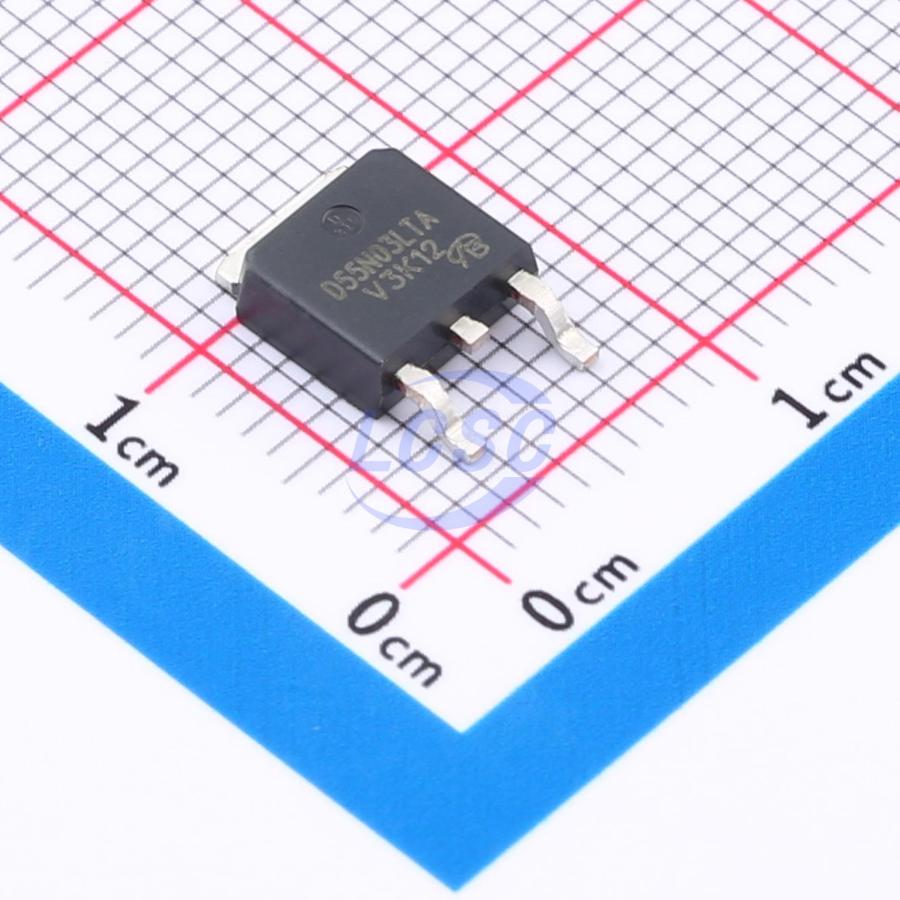

PHD55N03LTA-VB
N-Channel 30V 80A 205W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 30V 80A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- PHD55N03LTA-VB
- Store part #
- C19632145
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C19632145
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.13 | ₹58.13 |
| 10+ | ₹46.81 | ₹468.10 |
| 30+ | ₹42.02 | ₹1,260.60 |
| 100+ | ₹35.92 | ₹3,592.00 |
| 500+ | ₹29.83 | ₹14,915.00 |
| 1,000+ | ₹28.09 | ₹28,090.00 |
1 × ₹58.13
₹58.13
excl. GST
₹68.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
PHD55N03LTA-VB
₹58.13 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 525pF
- Current - Continuous Drain(Id)
- 80A
- Ciss-Input Capacitance
- 2.201nF
- Pd - Power Dissipation
- 205W
- Reverse Transfer Capacitance (Crss)
- 270pF
- RDS(on)
- 6mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 61nC@10V;31.5nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.4 g
Overview
Applications
- OR gate applications
- Servers
- DC/DC power supplies
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with EU RoHS Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ISL9N307AD3ST-VB#C19626849VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹52.93 · 50 in stock | View |
 | SM3119NAUC-TRG-VB#C18212508VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 38 | ₹53.56 · 38 in stock | View |
 | 09N03LA TO252-VB#C18212533VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 7 | ₹53.56 · 7 in stock | View |
 | NTD60N02RT4G-VB#C19626791VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 14 | ₹53.56 · 14 in stock | View |
 | P60N03LDG-VB#C19632058VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹52.93 · 50 in stock | View |
