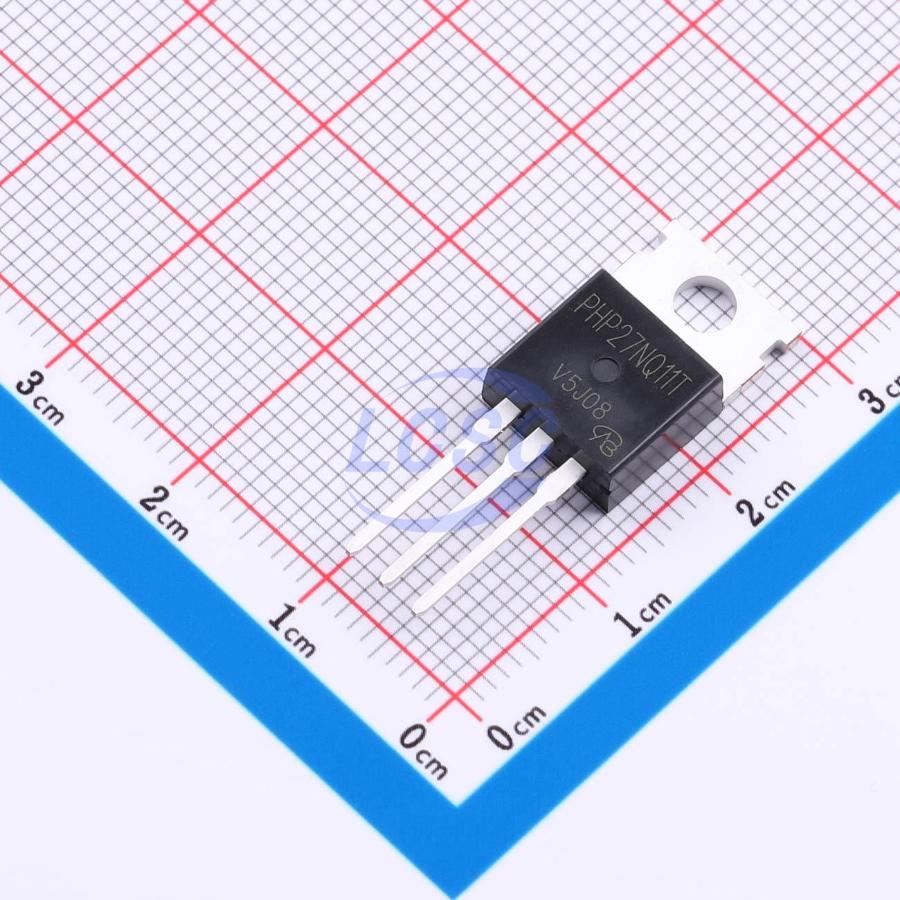

PHP27NQ11T,127-VB
105W 100V 18A 127mΩ@10V 1 N-channel N-Channel TO-220AB Single FETs, MOSFETs
TO-220ABRoHSActive
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- PHP27NQ11T,127-VB
- Store part #
- C52191059
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C52191059
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.60 | ₹83.60 |
| 10+ | ₹67.49 | ₹674.90 |
| 50+ | ₹60.53 | ₹3,026.50 |
| 100+ | ₹51.82 | ₹5,182.00 |
| 500+ | ₹42.46 | ₹21,230.00 |
| 1,000+ | ₹40.06 | ₹40,060.00 |
1 × ₹83.60
₹83.60
excl. GST
₹98.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
PHP27NQ11T,127-VB
₹83.60 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 260pF
- Ciss-Input Capacitance
- 1.3nF
- Pd - Power Dissipation
- 105W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 18A
- Reverse Transfer Capacitance (Crss)
- 110pF
- RDS(on)
- 127mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 28nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.28 g
Overview
Applications
- Isolated DC/DC Converter
Key features
- Trench power MOSFET
- 175°C junction temperature
- Low thermal resistance package
- 100% gate resistance (Rg) tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BUZ21-VB#C22389269VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 6 | ₹72.47 · 6 in stock | View |
| STP14NF10-VB#C5137430VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹80.19 · 10 in stock | View | |
 | FQP19N10L-VB#C22389295VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹72.47 · 10 in stock | View |
 | IRF520A-VB#C22389311VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 26 | ₹87.52 · 26 in stock | View |
 | SSFP15N10-VB#C22389602VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹72.47 · 10 in stock | View |
