Nexperia

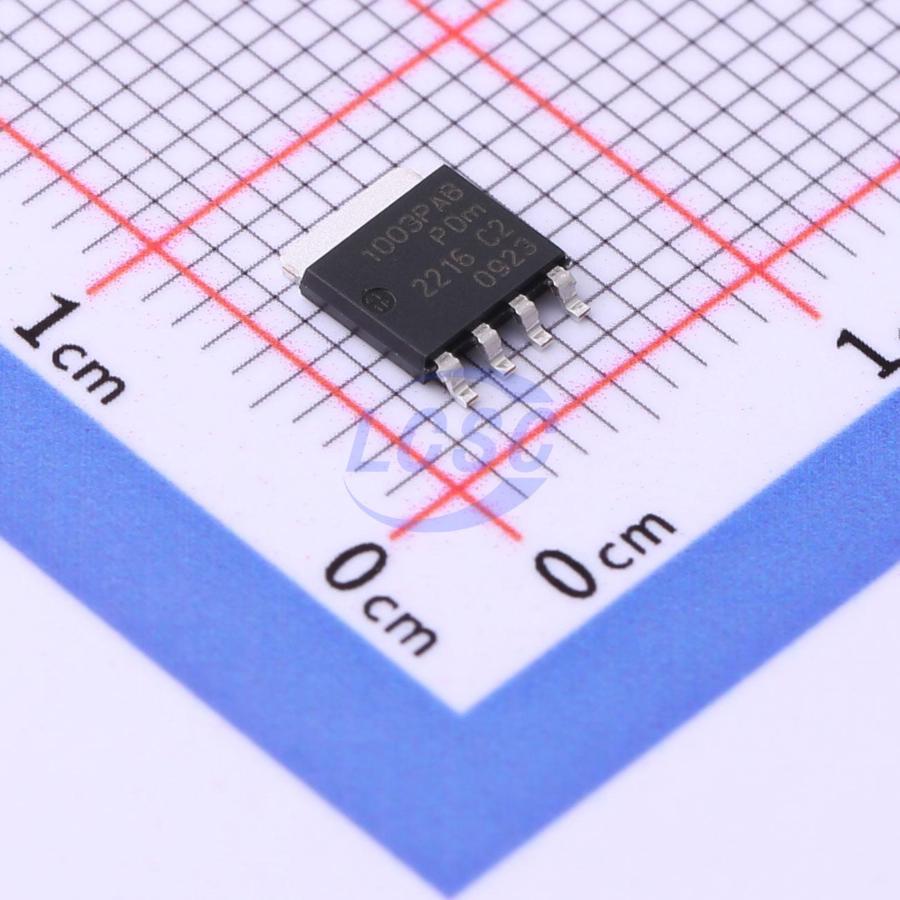

PHPT61003PYX

Bipolar (BJT) Transistor PNP 100V 3A 125MHz 5W LFPAK56(PowerSO-8)

LFPAK56(PowerSO-8)ROHS3 CompliantActive

TRANS PNP 100V 3A LFPAK56(PowerSO-8)

Manufacturer: Nexperia
Manufacturer part #: PHPT61003PYX
Store part #: C552670
Package / case: LFPAK56(PowerSO-8)
Category: Single Bipolar Transistors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,115 in stock

#C552670

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹59.95	₹59.95
10+	₹46.70	₹467.00
30+	₹41.28	₹1,238.40
100+	₹34.11	₹3,411.00
500+	₹31.06	₹15,530.00
1,500+	₹29.11	₹43,665.00

Quantity (min 1)

1 × ₹59.95

₹59.95

excl. GST

₹70.74 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,500 per reel

PHPT61003PYX

₹59.95 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -55℃~+175℃
Current - Collector Cutoff: 50uA
Transition frequency(fT): 125MHz
Collector - Emitter Voltage VCEO: 100V
Emitter-Base Voltage VEBO: 8V
DC Current Gain: 150
Pd - Power Dissipation: 5W
Current - Collector(Ic): 3A
Number: 1 PNP
type: PNP
Vce Saturation(VCE(sat)): 220mV

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.13 g

Overview

PNP high power bipolar transistor in a SOT669 (LFPAK56) Surface-Mounted Device (SMD) power plastic package.

Applications

Power management
Loadswitch
Linear mode voltage regulator
Backlighting applications

Key features

High thermal power dissipation capability
Suitable for high temperature applications up to 175 °C
Reduced Printed-Circuit Board (PCB) requirements comparing to transistors in DPAK
High energy efficiency due to less heat generation
AEC-Q101 qualified
