DIODES

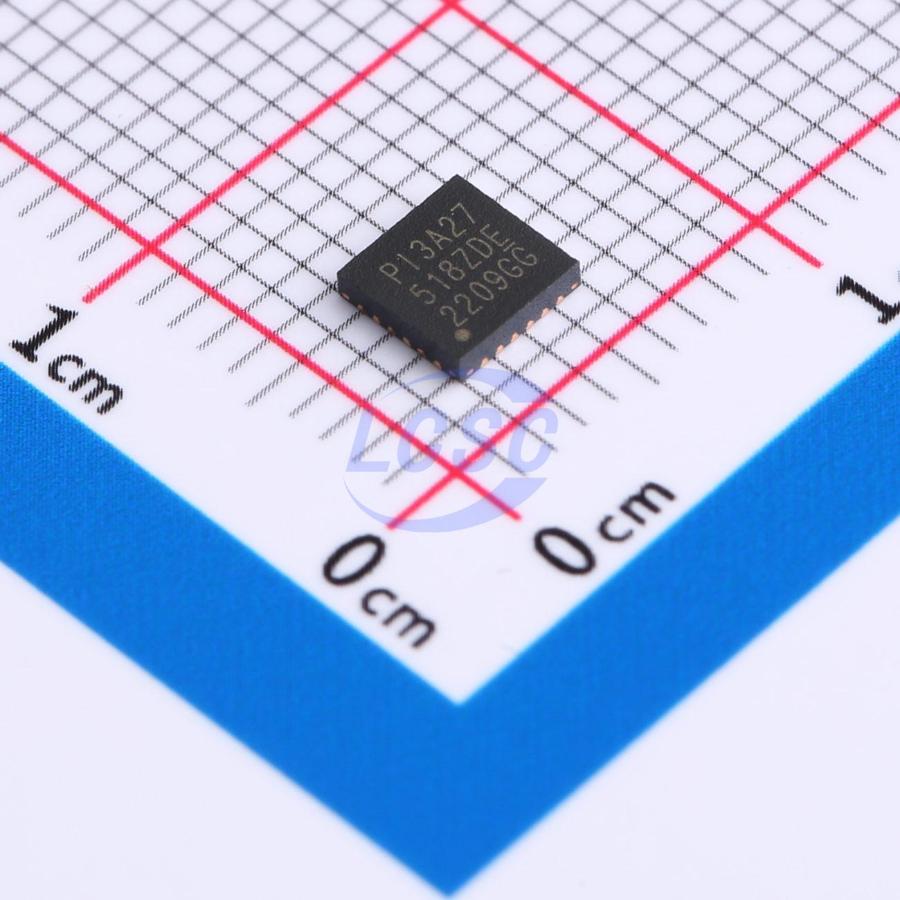

PI3A27518ZDEX

1.65V~3.6V 6 5Ω TQFN-24(4x4) Analog Switches, Multiplexers, Demultiplexers RoHS

TQFN-24(4x4)ROHS3 CompliantActive

PI3A27518 1.8/3.3V High-Bandwidth 6-channel, 2:1 Mux/DeMux

Manufacturer: DIODES
Manufacturer part #: PI3A27518ZDEX
Store part #: C3001682
Package / case: TQFN-24(4x4)
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,435 in stock

#C3001682

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹196.84	₹196.84
10+	₹160.12	₹1,601.20
30+	₹141.87	₹4,256.10
100+	₹123.62	₹12,362.00
500+	₹107.76	₹53,880.00
1,000+	₹102.11	₹1,02,110.00

Quantity (min 1)

1 × ₹196.84

₹196.84

excl. GST

₹232.27 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,500 per reel

PI3A27518ZDEX

₹196.84 for 1 + GST

Specifications

Features: Glitch-free switching
Operating Temperature: -40℃~+85℃
Voltage - Supply: 1.65V~3.6V
Number of Channels: 6
Ron: 5Ω
Con: 21.5pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.45 g

Overview

The PI3A27518 is a 6-channel, 1:2 multiplexer/demultiplexer. The COMx port can be configured to connect with NOx or NCx ports in 4 different modes (refer to Truth Table for details). The PI3A27518 has a wide operating voltage range, very low power consumption and small packaging. The device can be used as an analog switch or as a low-delay bus switch. The PI3A27518 supports a wide operating power supply voltage, 1.65V to 3.6V and has an On-Resistance of 5Ω at +3.3V. Break-before-make switching prevents both switches from being enabled simultaneously. This eliminates signal disruption during switching.
