DIODES

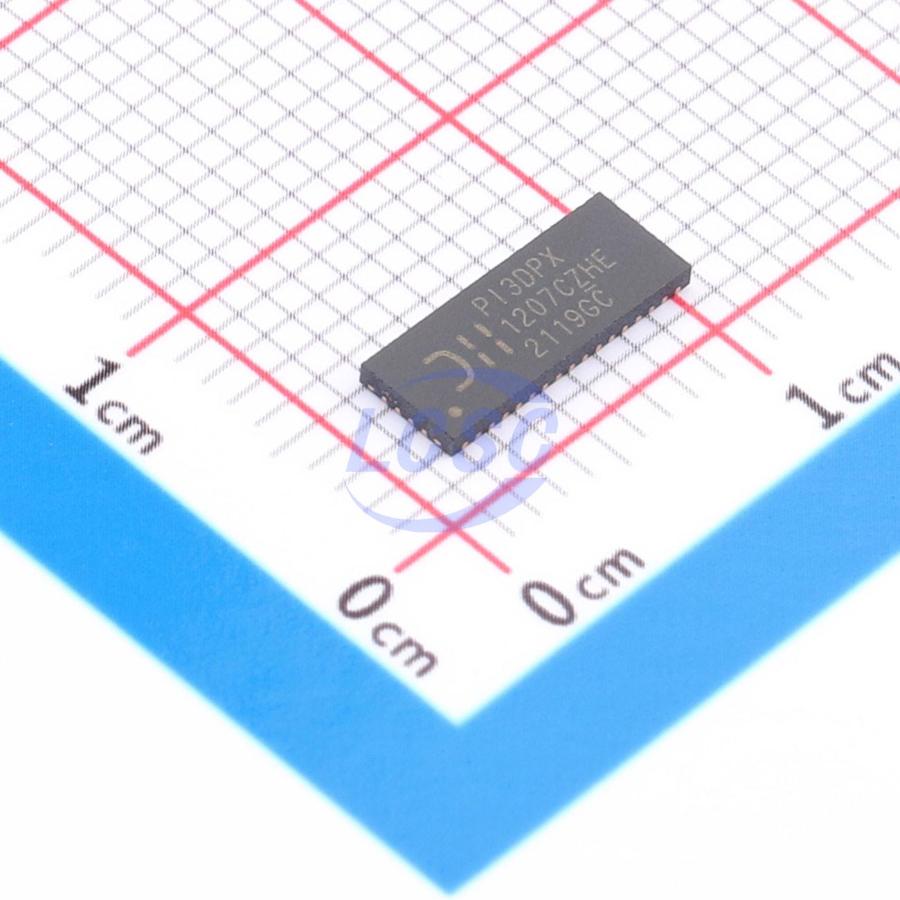

PI3DPX1207CZHEX

Repeater, isolator DisplayPort 4 10Gbps TQFN-42(9x3.5) Signal Buffers, Repeaters, Splitters RoHS

TQFN-42(9x3.5)ROHS3 CompliantActive

DP-Alt DP1.4/USB3.1 10Gbps Linear Redriver with Non-Blocking, Latency-Free and Built-in Aux Switch

Manufacturer: DIODES
Manufacturer part #: PI3DPX1207CZHEX
Store part #: C2057262
Package / case: TQFN-42(9x3.5)
Category: Signal Buffers, Repeaters, Splitters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,557 in stock

#C2057262

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹278.56	₹278.56
10+	₹235.75	₹2,357.50
30+	₹208.88	₹6,266.40
100+	₹181.47	₹18,147.00
500+	₹169.11	₹84,555.00
1,000+	₹163.74	₹1,63,740.00

Quantity (min 1)

1 × ₹278.56

₹278.56

excl. GST

₹328.70 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,500 per reel

PI3DPX1207CZHEX

₹278.56 for 1 + GST

Specifications

Type: Repeater, isolator
Input type: DisplayPort
Voltage - Supply: 3.3V
Number of Channels: 4
Output Type: DisplayPort
Features: Cascade and address expansion
Data Rate: 10Gbps

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.001 g

Overview

PI3DPX1207C is the DP-Alt 1.4 (Max 10Gbps) Linear Redriver. DP1.4 standard can support 4K2K@120Hz / 25.82 Gbps with 4-channels. Each of the DP1.4 and USB3.1 Gen2 differential signals can be easily adjustable with equalization, output swing and gain adjustment by either pin or I2C control settings. It can optimize the DP/ USB 10Gbps signal performance over a variety of physical mediums by reducing Inter-symbol interference jitters. Since Linear Redriver does not block the Receiver DFE’s adaptive channel controls, it can natively support DisplayPort Transparent LT(Link Training). Named as “Trace Loss Canceling” technology, and supports the cascading high speed link connections between Host and Device. It means multiple linear Redriver can be placed in the link to work seamlessly to compensate high insertion loss. The Cascading, Low Jitter and Simplicity of Gain adjustment capabilities to extend signal transmission features are ideal choice for the 8-10Gbps high speed DP Alt signal integrity solutions.

Applications

Notebook, Desktop and AIO personal computers
DP-Alt Monitors and Displays
Active DP-Alt Cables/Adapters

Key features

DP-Alt 4-channel Redriver and DeMux (DP 2-ch and USB 2-ch)
Latency-free USB Read/Write Transfer rate and DisplayPort Redriver Link Training for variable video frame rate control
DP1.4 (8.1 Gbps) and USB3.1 Gen 2 (10 Gbps) standard compliant
Type-C DP/USB mode selection: DP only, USB only, DP/USB split modes
Natively support Transparent DisplayPort Link training with Non-blocking No-latency Linear ReDriver
Independently controlled EQ/Gain/Swing signal outputs for DisplayPort and USB modes
Type-C Plug and Aux Flipping controls through I2C slave pins
Slave I2C support only. I2C speed up to 1MHz
Auto power saving circuit
Single Power Supply: 3.3V
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
Packaging (Pb-free & Green): – 42-contact TQFN (9mm x3.5mm) (ZH)
