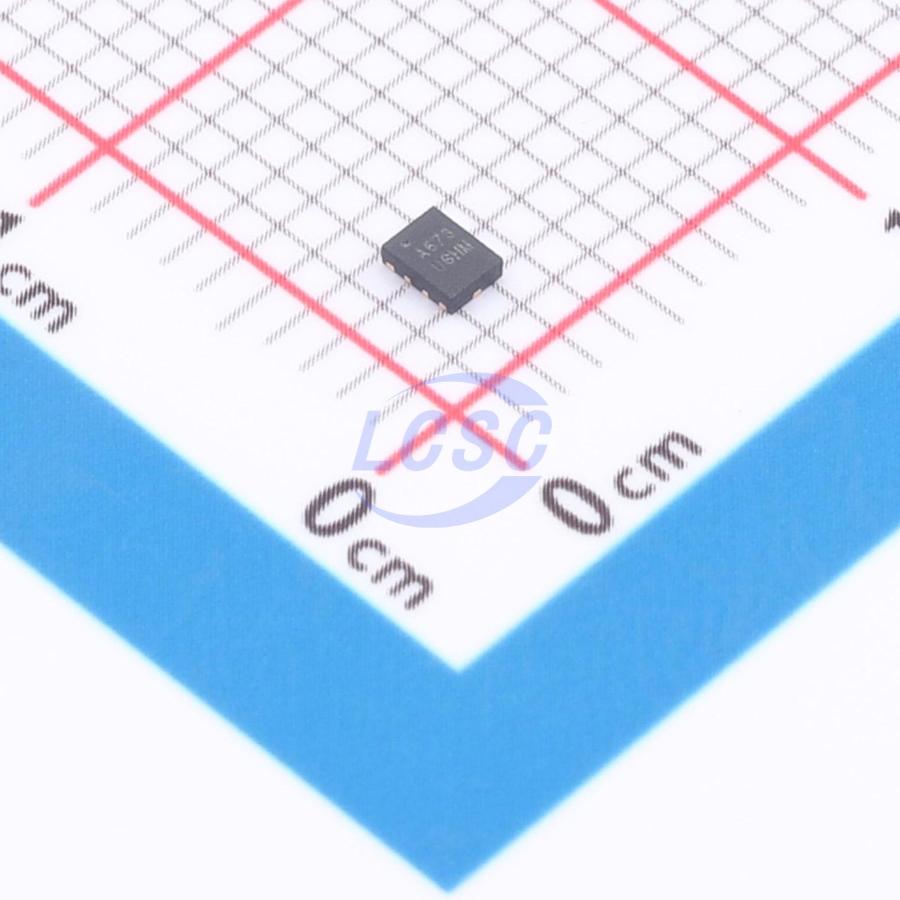

PI3USB4000DQ1ZUAEX-TP

This device is a high-bandwidth switch designed for high-speed USB 2.0 signal switching in mobile phones and consumer electronics applications such as mobile phones with hubs or controllers with limited USB I/O, digital cameras, and laptops. Its wide bandwidth (1.1 GHz) allows signals to pass through with minimal edge and phase distortion. The device multiplexes differential outputs from a USB host device to one of two corresponding outputs. The switch is bidirectional with virtually no attenuation of high-speed signals at the outputs. It is designed for low bit-to-bit skew and high inter-channel noise isolation, and is compatible with multiple standards such as high-speed USB 2.0 (480 Mbps).

Applications

• Mobile phones, tablets, and laptops
• USB Type-C microphone/ground switching
• Audio, video, UART, USB2.0 signal and power routing
• Telecom signal switching
• Sample-and-hold systems
• Signal gating, multiplexers/demultiplexers

Key features

• Low on-resistance, typical value 10Ω
• Supply range: 2.5V~5.5V
• Differential 2:1 or 1:2 switch/multiplexer
• Overvoltage protection up to DC 30V on COM port
• IEC 64000-4-5 surge protection on COM port without external TVS: ±300V
• System-side clamp voltage pulse less than 9V, duration less than 200nS
• Power-off protection when VDD = 0V
• Insertion loss: -1dB@200MHz, -2dB@650MHz, -3dB@1GHz
• Small package: QFN2015-10L
