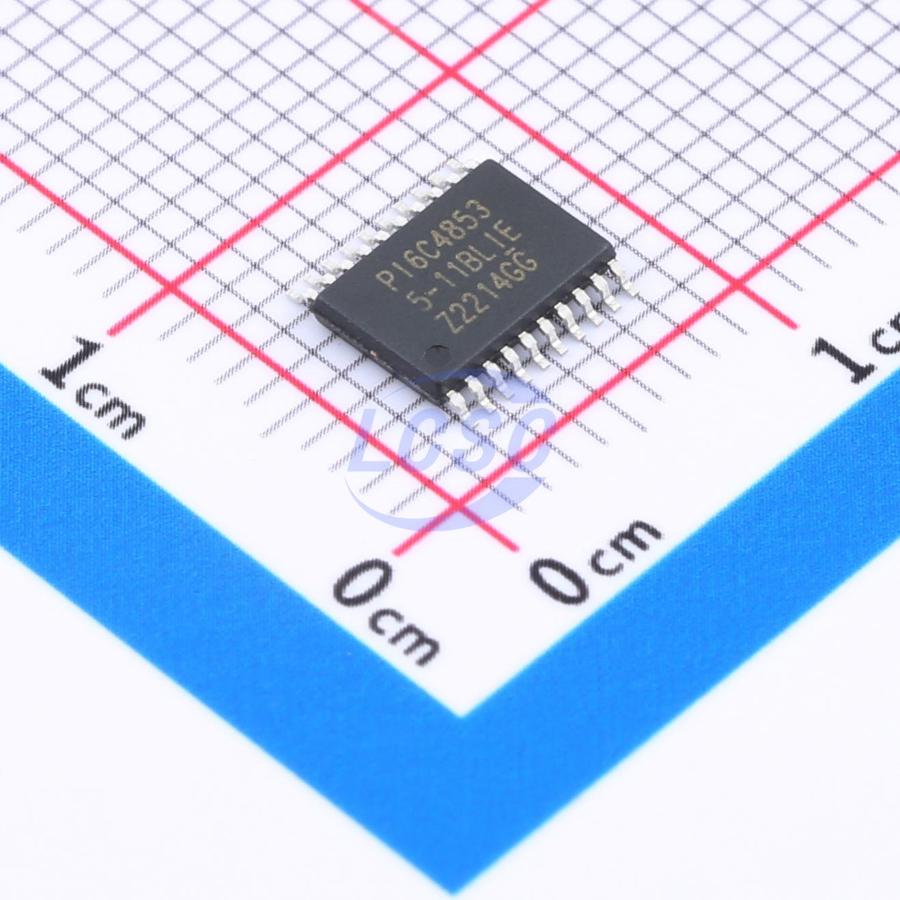

PI6C48535-11BLIEX
3.135V~3.465V 500MHz 4 TSSOP-20 Clock Buffers, Drivers RoHS
Low Jitter 1-to-4 Crystal/LVCMOS to LVPECL Fanout Buffer
- Manufacturer
- DIODES
- Manufacturer part #
- PI6C48535-11BLIEX
- Store part #
- C5245998
- Package / case
- TSSOP-20
- Category
- Clock Buffers, Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,247 in stock
#C5245998
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹102.08 | ₹102.08 |
| 10+ | ₹88.03 | ₹880.30 |
| 30+ | ₹79.14 | ₹2,374.20 |
| 100+ | ₹70.26 | ₹7,026.00 |
| 500+ | ₹66.12 | ₹33,060.00 |
| 1,000+ | ₹64.47 | ₹64,470.00 |
1 × ₹102.08
₹102.08
excl. GST
₹120.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PI6C48535-11BLIEX
₹102.08 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 3.135V~3.465V
- Features
- Multi-channel fan-out/isolation drive;Output enable/shutdown;Output synchronization and phase alignment
- Number of Inputs
- 2
- Output Frequency(Max)
- 500MHz
- Number of outputs
- 4
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.236 g
Overview
The PI6C48535-11B is a high-performance low jitter and low-skew LVPECL fanout buffer. Features selectable of single-ended clock or crystal inputs and translates to four LVPECL outputs. The CLK input accepts LVCMOS or LVTTL signals. The outputs are synchronized with input clock during asynchronous assertion /deassertion of CLK_EN pin. PI6C48535-11B is ideal for crystal or LVCMOS/LVTTL to LVPECL translation. Typical clock translation and distribution applications are data-communications and telecommunications.
Applications
- data-communications
- telecommunications
Key features
- Maximum output frequency: 500MHz
- 4 pair of differential LVPECL outputs
- Selectable CLK and crystal inputs
- CLK accepts LVCMOS, LVTTL input level
- Ultra low additive phase jitter: <0.05 ps (typ) (differential 156.25MHz, 12KHz to 20MHz integration range)
- Output Skew: 30ps (maximum)
- Part-to-part skew: 200ps (maximum)
- Propagation delay: 1.5ns (maximum)
- 3.3V power supply
- Pin-to-pin compatible to ICS8535-11, ICS8535-31
- Operating Temperature: -40°C to 85°C
- Packaging (Pb-free & Green available): 20-pin TSSOP (L)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PI6C48535-01BLIEX#C2672909DIODES · TSSOP-20 | DIODES | TSSOP-20 | 10 | ₹284.22 · 10 in stock | View |
 | 8533AGI-01LF#C1545719RENESAS · TSSOP-20 | RENESAS | TSSOP-20 | 10 | ₹2,878.19 · 10 in stock | View |
| 8533AGI-01LFT#C2673002RENESAS · TSSOP-20 | RENESAS | TSSOP-20 | 10 | ₹2,199.43 · 10 in stock | View | |
 | 8533AG-01LFT#C2651412RENESAS · TSSOP-20 | RENESAS | TSSOP-20 | 15 | ₹503.88 · 15 in stock | View |
| PI6C48535-01LEX#C2672888DIODES · TSSOP-20 | DIODES | TSSOP-20 | On request | ₹224.14 · 0 in stock | View | |
