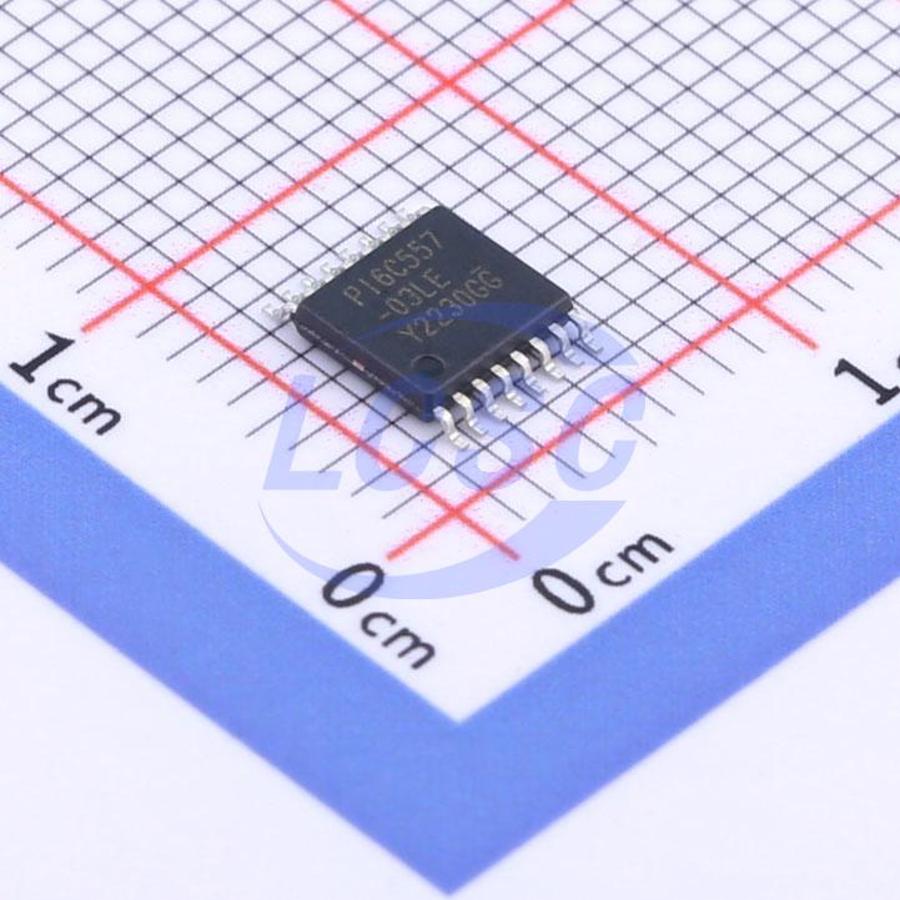

PI6C557-03LEX
3.3V 200MHz 2 TSSOP-16 Application Specific Clock/Timing RoHS
PCI Express Clock
- Manufacturer
- DIODES
- Manufacturer part #
- PI6C557-03LEX
- Store part #
- C500785
- Package / case
- TSSOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,670 in stock
#C500785
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹181.91 | ₹181.91 |
| 10+ | ₹150.69 | ₹1,506.90 |
| 30+ | ₹133.35 | ₹4,000.50 |
| 100+ | ₹114.06 | ₹11,406.00 |
| 500+ | ₹105.38 | ₹52,690.00 |
| 1,000+ | ₹101.47 | ₹1,01,470.00 |
1 × ₹181.91
₹181.91
excl. GST
₹214.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
PI6C557-03LEX
₹181.91 for 1 + GST
Specifications
- Clock/Oscillator
- External
- Phase Offset
- Not supported
- Voltage - Supply
- 3.3V
- Output Frequency(Max)
- 200MHz
- Operating Temperature
- -40℃~+85℃
- Number of outputs
- 2
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.417 g
Overview
PI6C557-03 is a spread spectrum clock generator supporting PCI Express and Ethernet requirements. Designed for PC or embedded systems, it significantly reduces EMI. The PI6C557-03 provides two differential (HCSL) spread spectrum outputs, configurable for spread spectrum and clock selection. Leveraging Pericom's patented PLL technology, the device accepts a 25MHz crystal input and generates two pairs of differential (HCSL) outputs at 25MHz, 100MHz, 125MHz, and 200MHz clock frequencies. It also offers ±0.25%, -0.5%, -0.75% spread spectrum options as well as a no spread spectrum option.
Key features
- LVDS-compatible output
- Supply voltage 3.3V ± 10%
- 25MHz input frequency
- HCSL output, 0.7V current-mode differential pair
- Cycle jitter 60ps (typical)
- Spread spectrum: ±0.25%, -0.5%, -0.75%, and no spread spectrum
- Industrial temperature range
- Package: (lead-free and green) - 16-pin, TSSOP (L)
- Fully lead-free and fully RoHS compliant
- Halogen- and antimony-free, green device
