DIODES

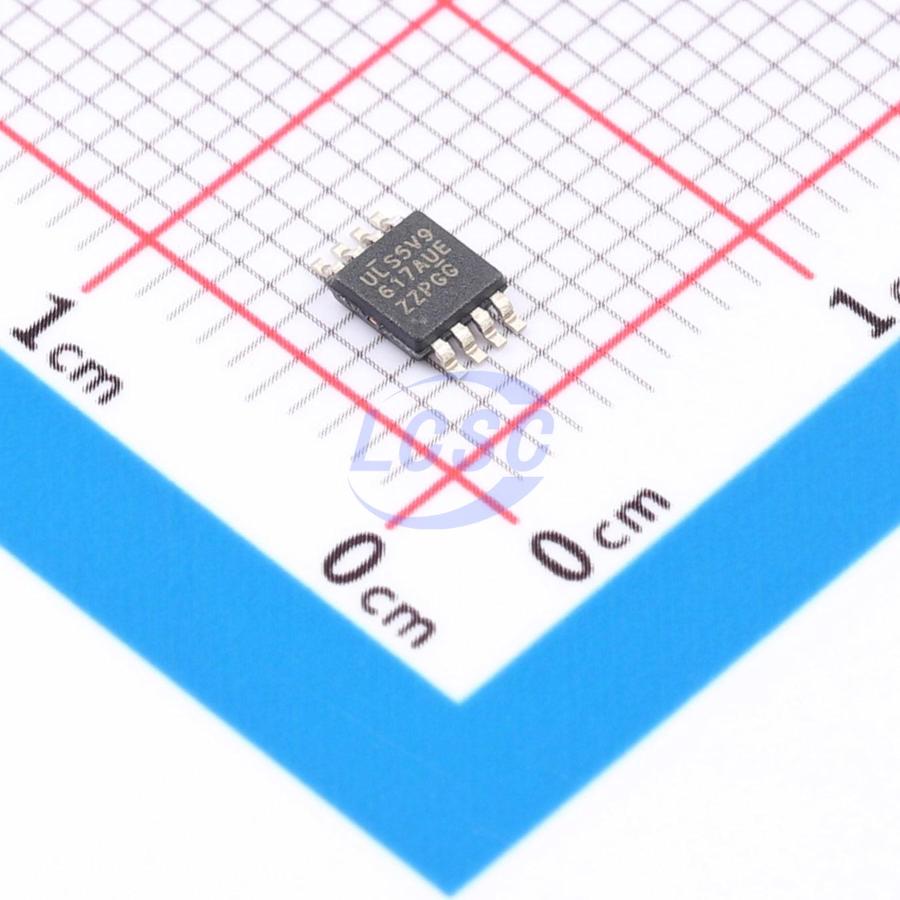

PI6ULS5V9617AUEX

2-Wire Bus 2 MSOP-8 Signal Buffers, Repeaters, Splitters RoHS

MSOP-8ROHS3 CompliantActive

Level Translating Fast-Mode Plus I2C-bus/SMbus Repeater

Manufacturer: DIODES
Manufacturer part #: PI6ULS5V9617AUEX
Store part #: C526728
Package / case: MSOP-8
Category: Signal Buffers, Repeaters, Splitters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,536 in stock

#C526728

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹71.32	₹71.32
10+	₹57.19	₹571.90
30+	₹50.23	₹1,506.90
100+	₹43.28	₹4,328.00
500+	₹36.98	₹18,490.00
1,000+	₹34.79	₹34,790.00

Quantity (min 1)

1 × ₹71.32

₹71.32

excl. GST

₹84.16 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

PI6ULS5V9617AUEX

₹71.32 for 1 + GST

Specifications

Type: Buffer;Driver
Voltage - Supply: 600mV~5.5V
Input type: 2-Wire Bus
Number of Channels: 2
Input Capacitance: 7pF
Output Type: 2-Wire Bus
Features: Bus capacitance isolation;Level shifting;Power-off isolation
Operating Temperature: -40℃~+85℃
Supply Current: 50uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.313 g

Overview

The PI6ULS5V9617A is a CMOS integrated circuit intended for Fast-mode Plus (Fm+) I²C-bus or SMBus applications. It provides level shifting between low voltage (down to 0.6V) and higher voltage (2.2V to 5.5V) in mixed-mode applications. The PI6ULS5V9617A enables the system designer to isolate two halves of a bus for both voltage and capacitance, accommodating more I²C devices or longer trace length. It also permits extension of the I²C-bus by providing bidirectional buffering for both the data (SDA) and the clock (SCL) lines, thus enabling two buses of 540 pF at 1 MHz or up to 4000 pF at lower speeds. The SDA and SCL pins are overvoltage tolerant and are high-impedance when the PI6ULS5V9617A is un-powered. The 2.2V to 5.5V bus port B drivers have the static level offset, while the adjustable voltage bus port A drivers eliminate the static offset voltage. This results in a LOW on the port B translating into a nearly 0V LOW on the port A which accommodates the smaller voltage swings of lower voltage logic. The EN pin is referenced to VCC(B) and can also be used to turn the drivers on and off under system control.

Key features

2-channel, bidirectional buffer isolates capacitance and allows 540pF on either side of the device at 1 MHz and up to 4000 pF at lower speeds
Voltage level translation from 0.6V to 5.5V and from 2.2V to 5.5V
Footprint and functional replacement for PI6ULS5V9617A at Fast-mode speeds
Port A operating supply voltage range of 0.6V to 5.5V with normal levels (0.4VCC(A)+0.8V ≤ VCC(B))
Port B operating supply voltage range of 2.2V to 5.5V with static offset level
-55V tolerant I²C-bus and enable pins
50Hz to 1 MHz clock frequency (the maximum system operating frequency may be less than 1MHz because of the delays added by the repeater)
Active HIGH repeater enable input referenced to VCC(B)
Open-drain input/outputs
Latching free operation
Supports arbitration and clock stretching across the repeater
Accommodates Standard-mode, Fast-mode and Fast-mode Plus I²C-bus devices, SMBus (standard and high power mode), PMBus and multiple masters
Powered-off high-impedance I²C-bus pins
ESD protection exceeds 8000V HBM per JESD22-A114
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
