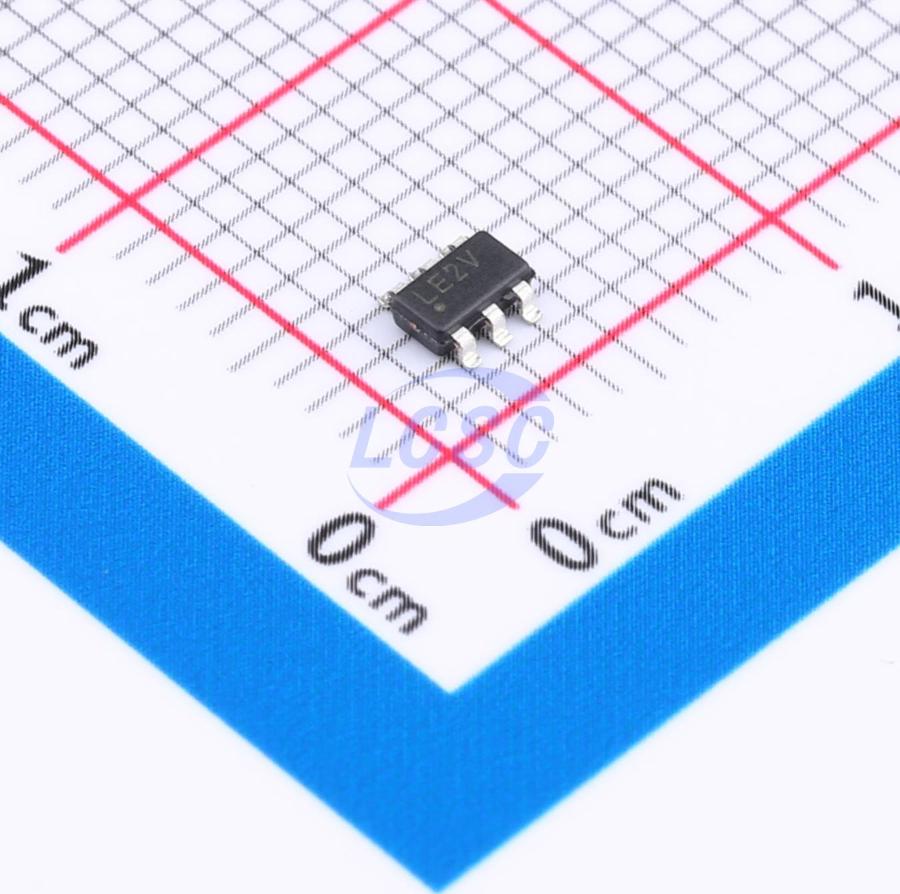

PIC10LF322T-I/OT

PIC10(L)F320/322 are 6/8-Pin Flash-Based, 8-Bit Microcontrollers with a High-Performance RISC CPU. It only has 35 instructions to learn (all single-cycle instructions, except branches), with an operating speed of DC – 16 MHz clock input and DC – 250 ns instruction cycle. It has an eight-level deep hardware stack, interrupt capability, and processor self-write/read access to program memory. It is pinout compatible to other 6-Pin PIC10FXXX Microcontrollers.

Key features

• Only 35 Instructions to Learn: All single-cycle instructions, except branches
• Operating Speed: DC – 16 MHz clock input, DC – 250 ns instruction cycle
• Eight-Level Deep Hardware Stack
• Interrupt Capability
• Processor Self-Write/Read access to Program Memory
• Pinout Compatible to other 6-Pin PIC10FXXX Microcontrollers
• Up to 512 Words of Flash Program Memory
• 64 Bytes Data Memory
• High-Endurance Flash Data Memory (HEF): 128B of nonvolatile data storage, 100K erase/write cycles
• Low-Power 16 MHz Internal Oscillator: Software selectable frequency range from 16 MHz to 31 kHz, Factory calibrated to ± 1%, typical
• Wide Operating Range: 1.8V to 3.6V (PIC10LF320/322), 2.3V to 5.5V (PIC10F320/322)
• Power-on Reset (POR)
• Power-up Timer (PWRT)
• Brown-out Reset (BOR)
• Ultra Low-Power Sleep Regulator
• Extended Watchdog Timer (WDT)
• Programmable Code Protection
• Power-Saving Sleep mode
• Selectable Oscillator Options (EC mode or Internal Oscillator)
• In-Circuit Serial Programming (ICSP) (via Two Pins)
• In-Circuit Debugger Support
• Fixed Voltage Reference (FVR) with 1.024V, 2.048V and 4.096V (‘F’ variant only) Output Levels
• Integrated Temperature Indicator
• 40-year Flash Data Retention
• Sleep Current: 20 nA @ 1.8V, typical (PIC10LF320/322)
• Operating Current: 25 μA @ 1 MHz, 1.8V, typical (PIC10LF320/322)
• Watchdog Timer Current: 500 nA @ 1.8V, typical (PIC10LF320/322)
• Four I/O Pins: One input-only pin, High current sink/source for LED drivers, Individually selectable weak pull-ups, Interrupt-on-Change
• Timer0: 8-Bit Timer/Counter with 8-Bit Programmable Prescaler
• Timer2: 8-Bit Timer/Counter with 8-Bit Period Register, Prescaler and Postscaler
• Two PWM Modules: 10-bit PWM, max. frequency 16 kHz, Combined to single two-phase output
• A/D Converter: 8-bit resolution with three channels
• Configurable Logic Cell (CLC): Eight selectable input source signals, Two inputs per module, Software selectable logic functions including: AND/OR/XOR/D Flop/D Latch/SR/JK, External or internal inputs/outputs, Operation while in Sleep
• Numerically Controlled Oscillator (NCO): 20-bit accumulator, 16-bit increment, Linear frequency control, High-speed clock input, Selectable Output modes, Fixed Duty Cycle (FDC), Pulse Frequency (PF) mode
• Complementary Waveform Generator (CWG): Selectable falling and rising edge dead-band control, Polarity control, Two auto-shutdown sources, Multiple input sources: PWM, CLC, NCO
